3 Extinguisher system
3.1 Communication Interface

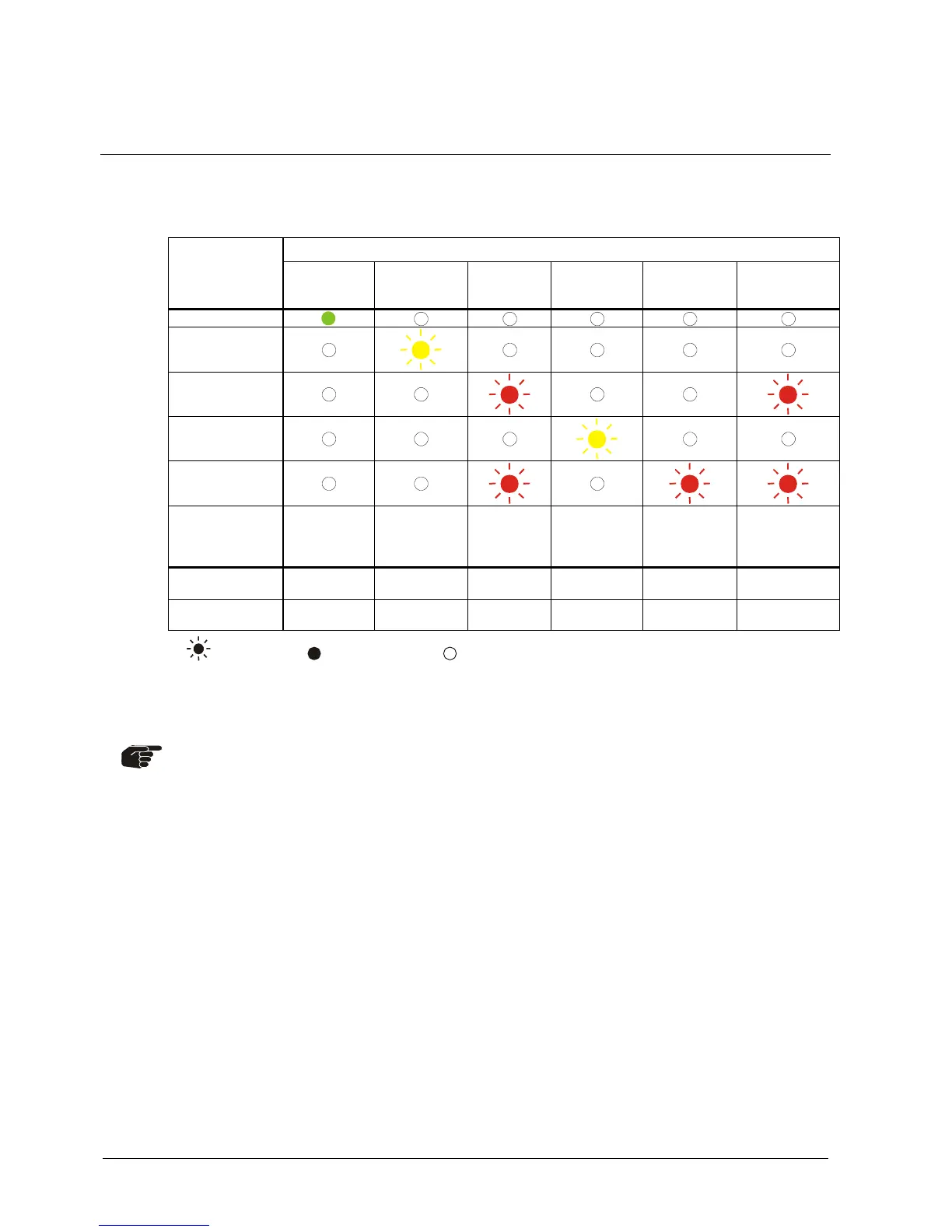

The following table gives you an overview of the various states that your extinguisher system can be
in.
Key
Incidents
Operation
Battery
operation
System
tripped (fire
alarm)
System
inactive
Loss of
extinguisher
Reset alarm
after tripped
Operation (green)
Battery operation
(yellow)
System tripped
(red)
System inactive
(yellow)
Extinguisher loss
(red)
Reset alarm (key
switch)
Key removed
Key removed
Key
removed
Key removed
Key removed
Key inserted in
horizontal
position
(locked)
Flashing light
constant.
every 10 min.
for 6 sec.
every 60 min.
for 8 sec.
Acoustic signal
constant
every 10 min.
for 6 sec.
every 60 min.
for 8 sec.
blinking LED illuminated LED LED off
3.2 Operational status
Note!
 This operating manual presupposes that the system has been installed by a licensed and
authorised installer or by the manufacturer. The installer will carry out the work within the
framework of the valid regulations and directives, and is liable for the quality of the
installation. This operating manual contains an Handover and Instruction Protocol (see
Chapter 8), which must be completely filled in by the installer and must be legally signed
by the operator. This protocol serves as a certification of the correct installation,
commissioning and handover of the extinguisher system to the operator.
 The correct inspection of the extinguisher system in accordance with the Handover and
Instruction Protocol is the precondition for the safe and problem free operation of the
extinguisher system.
