Operating in the system data management operating
area
3
3.1 Operating area overview
Softkey functions
+

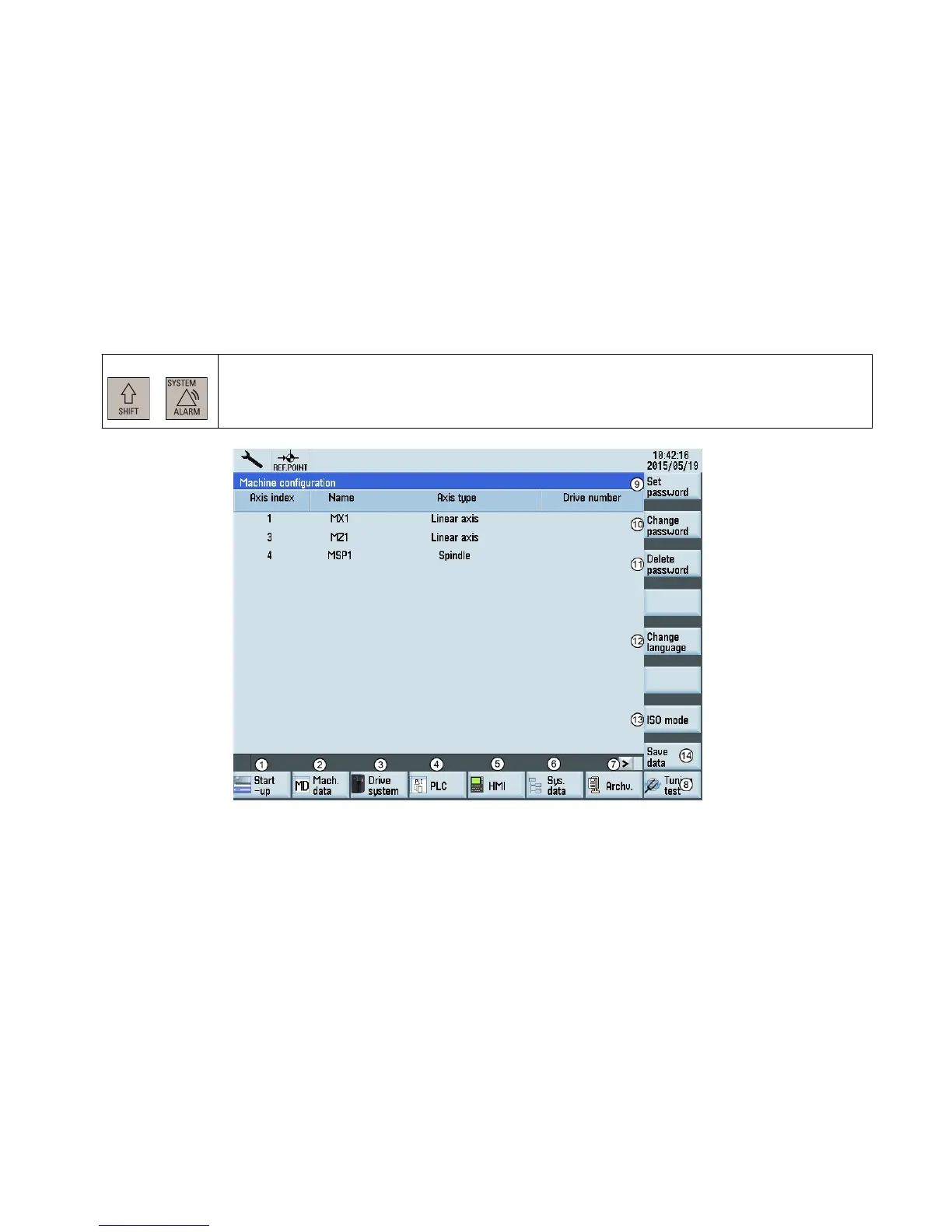

Pressing this key combination allows you to open the following window. This operating area includes
functions required for parameterizing and analyzing the NCK, the PLC, and the drive. The start screen
displays the
machine configuration data and softkeys available. Depending on the functions selected, the
horizontal and the vertical softkey bars vary. The screenshot below uses the turning variant as an example.
① Sets the NC, PLC and HMI start up modes
② Sets the system machine data
③ Configures the connected drives and motors
④ Provides PLC commissioning and diagnostics
⑤ Sets the system date and time and adjusts the brightness of the screen
⑥ Backs up and restores system data
⑦ Creates and restores startup archives, data archive
⑧ Performs the axis optimization
⑨ Enters the corresponding password (manufacturer password, and end user password)
for different access levels
⑩ Changes the password as per the corresponding access levels
⑪ Deletes the current password
Diagnostics Manual
Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2 13
