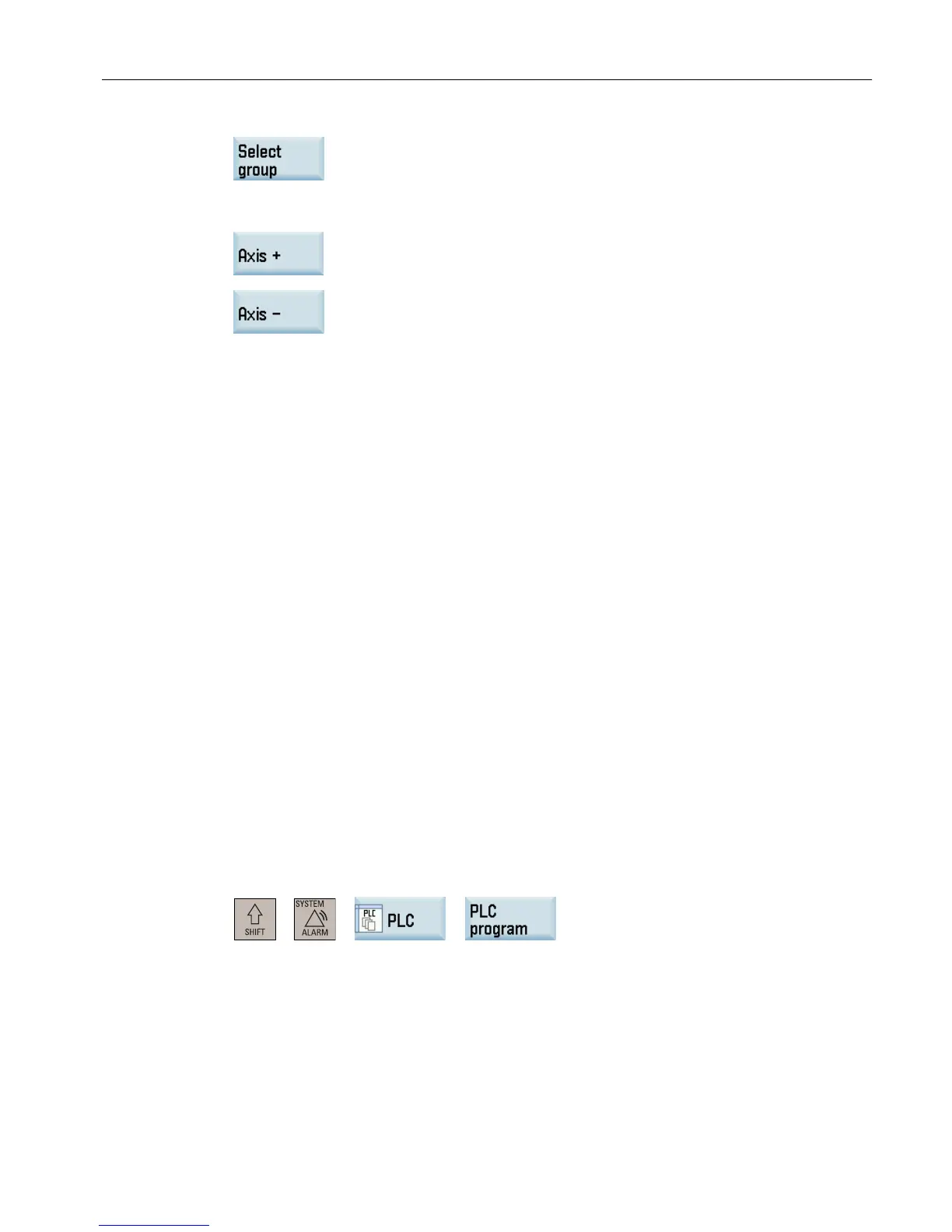

Provides various display filters for the active setting data group
For the axis-specific setting data, two additional softkeys are also pro‐
vided:
Switches among available axes/spindle
References
You can
find a description of the machine data and setting data in the following manufacturers'
documents:
SINUMERIK 808D/SINUMERIK 808D ADVANCED Parameter Manual
SINUMERIK 808D/SINUMERIK 808D ADVANCED Function Manual
3.4 PLC diagnostics (OEM or Siemens access level)
This function is accessible with the OEM or Siemens access level.
Functionality
A PLC user program consists to a large degree of logical operations to realize safety functions
and to support process sequences. These logical operations include the linking of various
contacts and relays. As a rule, the failure of a single contact or relay results in a failure of the
whole system/installation.
To locate causes of faults/failures or of a program error, various diagnostic functions are offered
in the system operating area.
Softkey functions
You can open the project stored in the permanent memory through the following operations:
+ → →
Operating in the system data management operating area
3.4 PLC diagnostics (OEM or Siemens access level)
Diagnostics Manual
Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2 21
