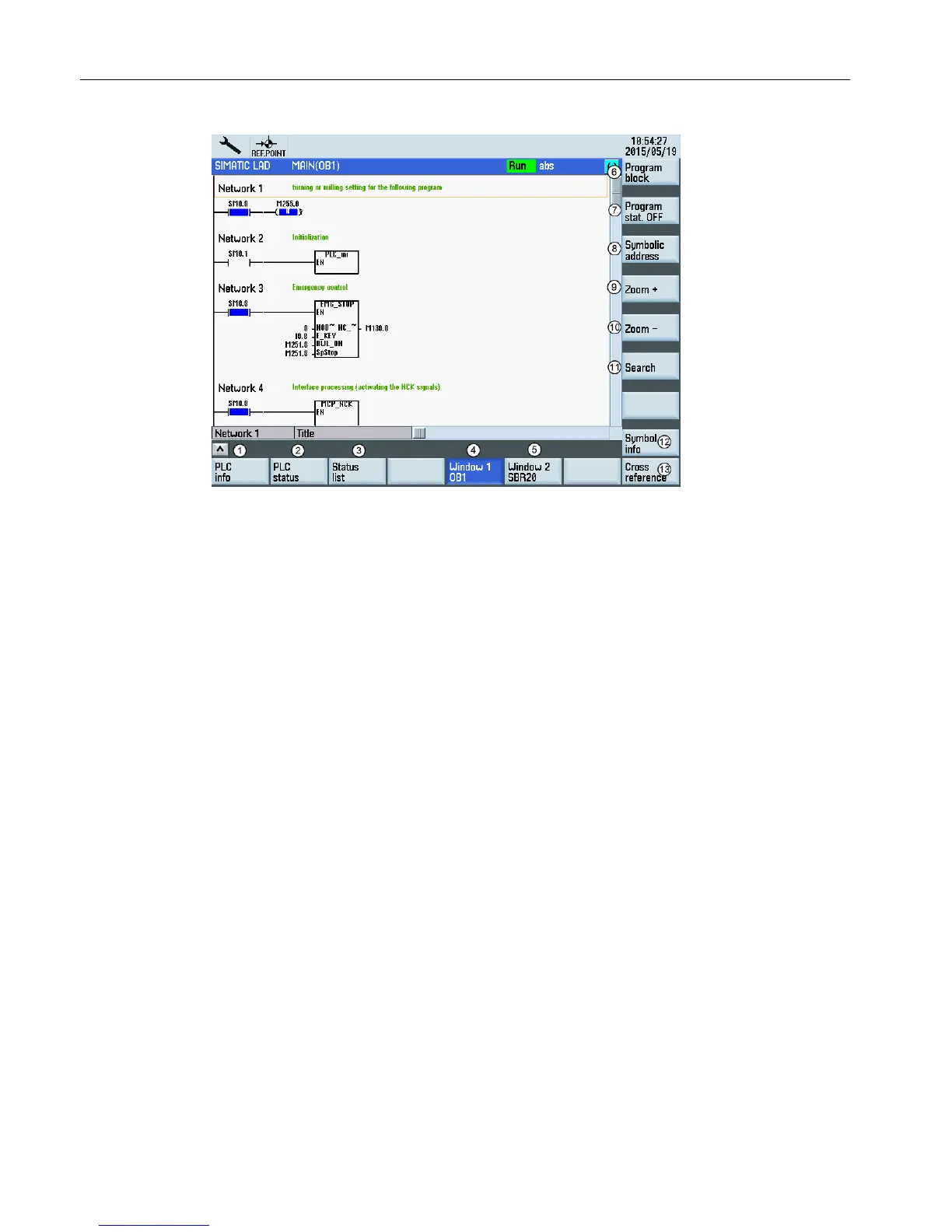

① Displays PLC properties
② Monitors and changes the values of the operands during program execution
③ Displays and modifies PLC signals
④ Displays any logical and graphical information of a program block
⑤ Displays any logical and graphical information of a program block in another window
⑥ Displays the list of cross references
⑦ Displays the logic and graphic information of the selected program block
⑧ Activates or deactivates the program status display
⑨ Switches between the absolute and symbolic representation of the operands. The softkey
labelling changes accordingly.
⑩ Zooms in the application area
⑪ Zooms out the application area
⑫ Searches for operands
⑬ Displays all symbolic identifiers used in the selected network
