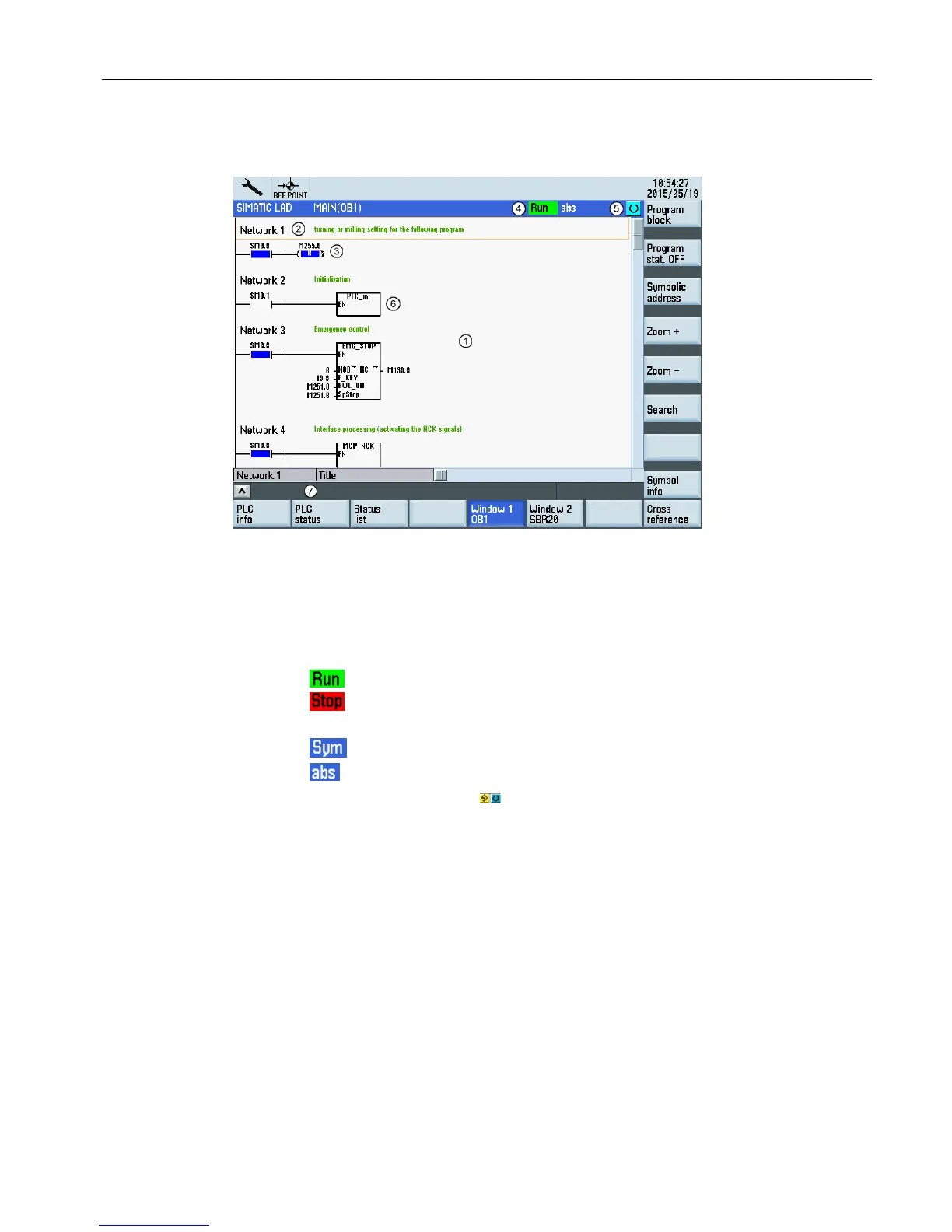

3.4.1 Screen layout
① Application area
② Supported PLC program language
③ Name of the active program block
Representation: Symbolic name (absolute name)
④ ● Program status
–
: Program is running
– : Program is stopped
● Status of the application area
– : Symbolic representation
– : Absolute representation
⑤ Display of the active keys, e.g.
⑥ Focus
Performs the tasks of the cursor
⑦ Tip line
contains notes for searching
3.4.2 Operating options
In addition to the softkeys and the navigation keys, this area provides still further key
combinations.
Operating in the system data management operating area
3.4 PLC diagnostics (OEM or Siemens access level)
Diagnostics Manual
Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2 23
