Key combination Action
The function of the Select key depends on the position of the input
focus.
● Table line: Displays the complete text line
●
Network title: Displays the network comment
● Command: Displays the complete operands
If the input focus is positioned on a command, all operands including
the comments are displayed.

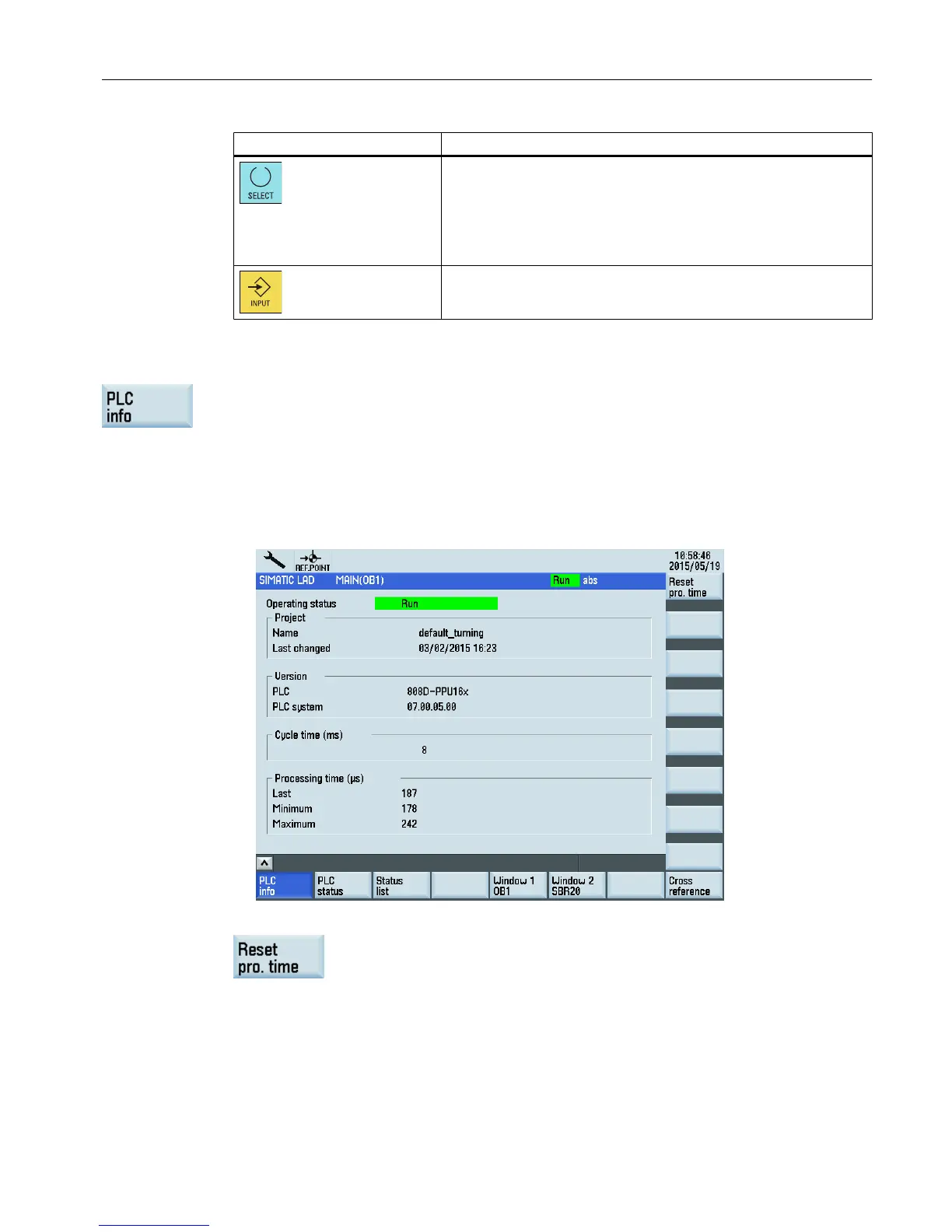

Displaying the PLC info
Press this softkey on the PLC program start screen to view the following PLC properties:
●
Operating status
●
Project name and change info
● PLC version and system info
● Cycle time
● Processing time of the PLC user program
The processing time data is reset by pressing this softkey.
Searching for operands
In big programs, you can use the search function to quickly reach the desired positions.
Operating in the system data management operating area
3.4 PLC diagnostics (OEM or Siemens access level)
Diagnostics Manual
Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2 25
