Further information
● Properties
Symbolic name, author and comments
●
Local variables
Name of the variable, variable type, data type and comment
Operating sequence

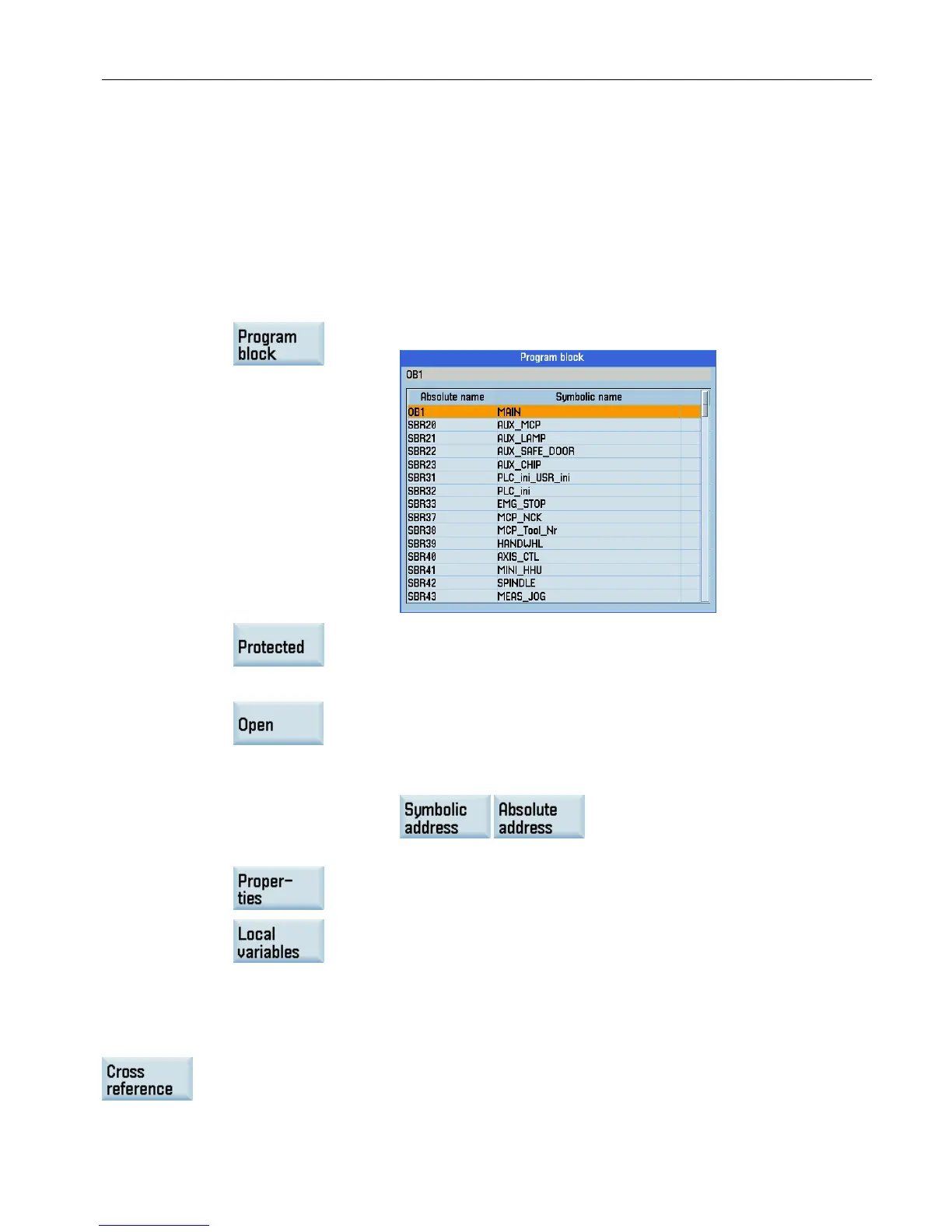

1. Press this softkey to open the program block window.
2. If a program block is protected by a password, press this softkey to
enable the display of the ladder diagram. A password is required for
this. The password can be allocated during creation of a program
block in the PLC Programming Tool.
3. Select the desired program block and press this softkey to open it.
4. After the selected program block is opened, you can press the follow‐
ing softkeys to switch the display information.
/
Further softkeys are available in the program block window as follows:
Displays additional information of the selected program block
Displays the table of local variables of the selected program block
3.4.4 Displaying cross-references
Use this softkey to display the list of cross references. All operands used in the PLC project
are displayed. This list indicates in which networks an input, output, flag etc. is used.
Operating in the system data management operating area
3.4 PLC diagnostics (OEM or Siemens access level)
Diagnostics Manual
Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2 27
