⑤ Determines the differences in the horizon‐
tal direction
⑫ Defines the step sizes of the markers
⑥ Hides/displays the selected diagrams in
various traces
⑬ Saves or loads the trace data
⑦ Moves the trace ⑭ Provides the help info
To analyze the result, you can perform the following operations:
● Changing and scaling the abscissa and ordinate values
●
Measuring a value using the horizontal or vertical marker
● Measuring the abscissa and ordinate values as a difference between two markers
● Storing the result as a file in the part program directory

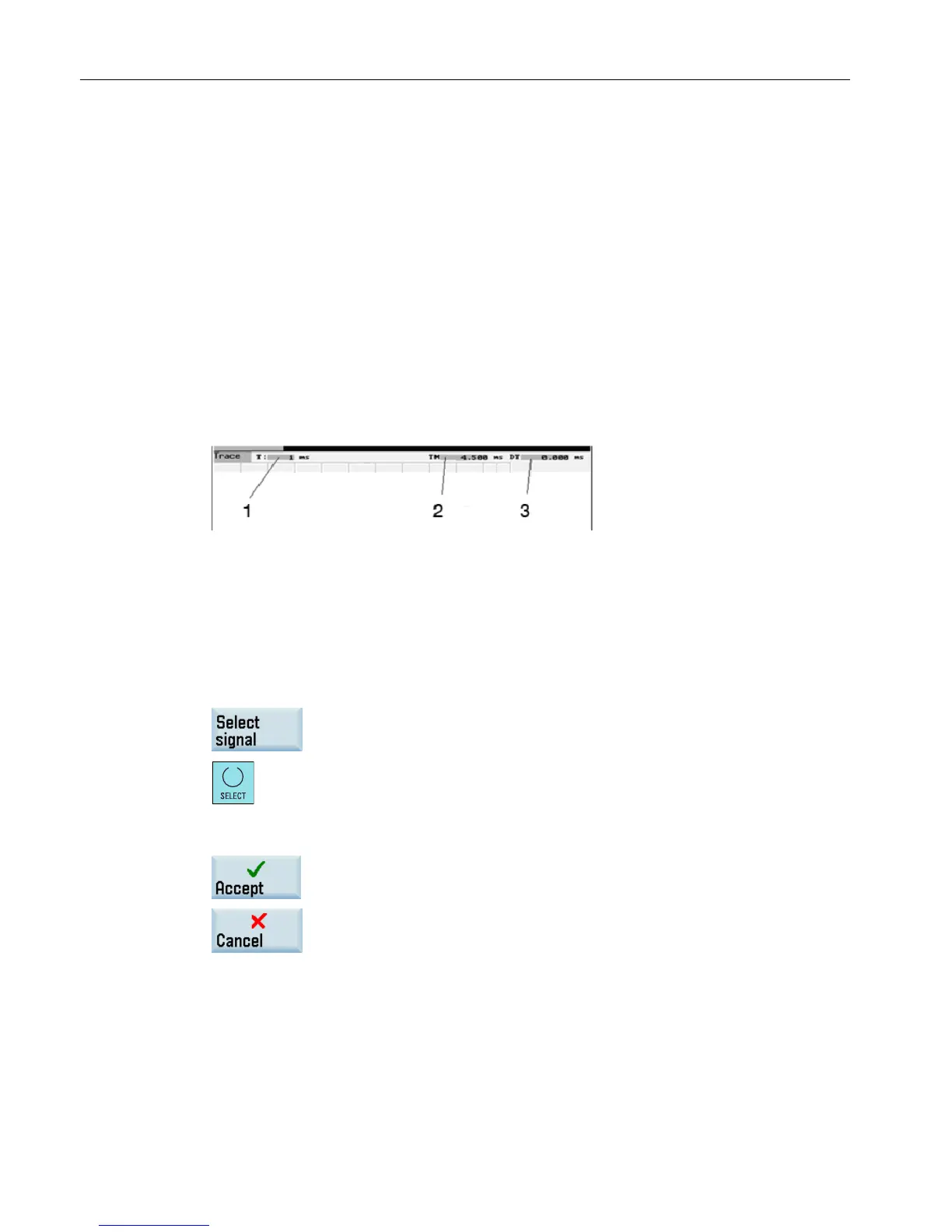

The header of the diagram contains the current scaling of the abscissa and the difference value
of the markers.
1 Time Base
2 Marker position time
3 Difference in time between marker 1 and current marker position
Selecting signal
To parameterize the measuring channel, follow these steps:
1. Press this softkey on the servo trace main screen to open the window
for signal selection.
2. Use this key to choose the axis, signal type and enable tracing in the
respective traces.
3. Set the parameters for the measuring time and the trigger type for the
traces. The maximum measuring time is 6133 ms.
4. Press this softkey to confirm the settings.
To abort the settings and return, press this softkey.
Operating in the system data management operating area
3.8 Viewing the service info
Diagnostics Manual
38 Diagnostics Manual, 06/2015, 6FC5398-6DP10-0BA2
