Operating and Programming — Milling Page 104 808D
ISO
Mode
s
Basic Theory
Beginning of the program
Common ISO program：
Beginning is “O”
ISO mode of 808D：
Not compatible with the programs
beginning with “O”
O0001；
G0 X50 Y50 Z50 M5
G04 X5
M3 S1000
...
O0001；Delete this
line
G0 X50 Y50 Z50 M5
G04 X5
M3 S1000
...
Common ISO program 808D ISO program

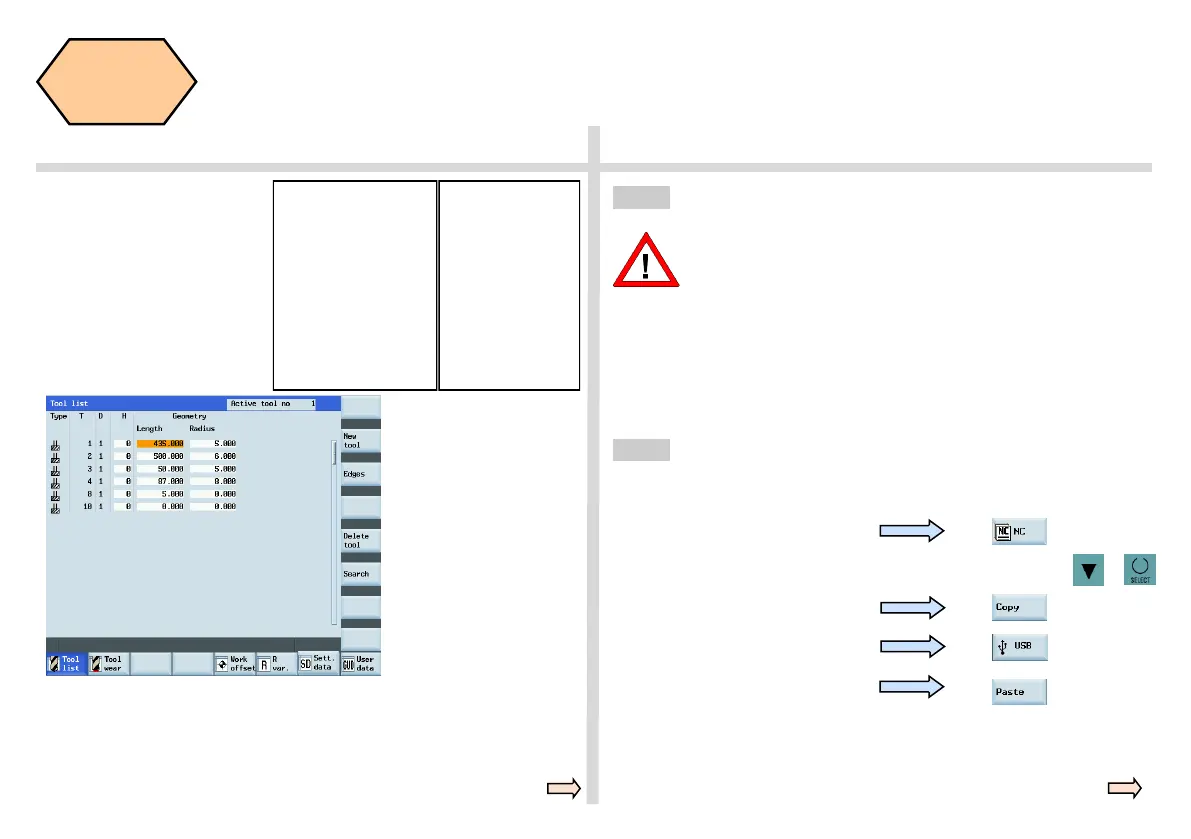

H code
In 808D standard DIN mode, you
must open the H list in the tool list
first and fill in the data accordingly
2 common methods
① Direct use of the ISO switch
button on the PPU to enter ISO
mode.
(We recommend the 1st meth-
od!)
② Enter code G291 in MDA mode
and execute. When the ”Reset” is
not used, the H list in the tool list is
open.
Step 3
A specified ISO program is then stored in the USB and can be executed
as required.
Program execution
Press the “USB” SK on the PPU.
Press the “NC” SK on the PPU.
Press the “Copy” SK on the PPU.
Press the “Paste” SK on the PPU.
Connect the USB device with sufficient memory to the USB interface on
the PPU.
Make sure the current system is in ISO mode!
Make sure all preparations and safety measures have been
performed!
Operate as described above.
Tool and workpiece setup →simulation→test→machining.
Step 4
Transfer the ISO files in the 808D to the USB device.
Use the “Cursor + Select” keys to select the required program
which is then highlighted.
Note：Every tool only can use the H value corre-
sponding to the edge.
In the graphic above, T2 H1 cannot be executed.
+
