Siemens SINUMERIK 808D Operating Guide

Operating and Programming — Milling Page 14 808D

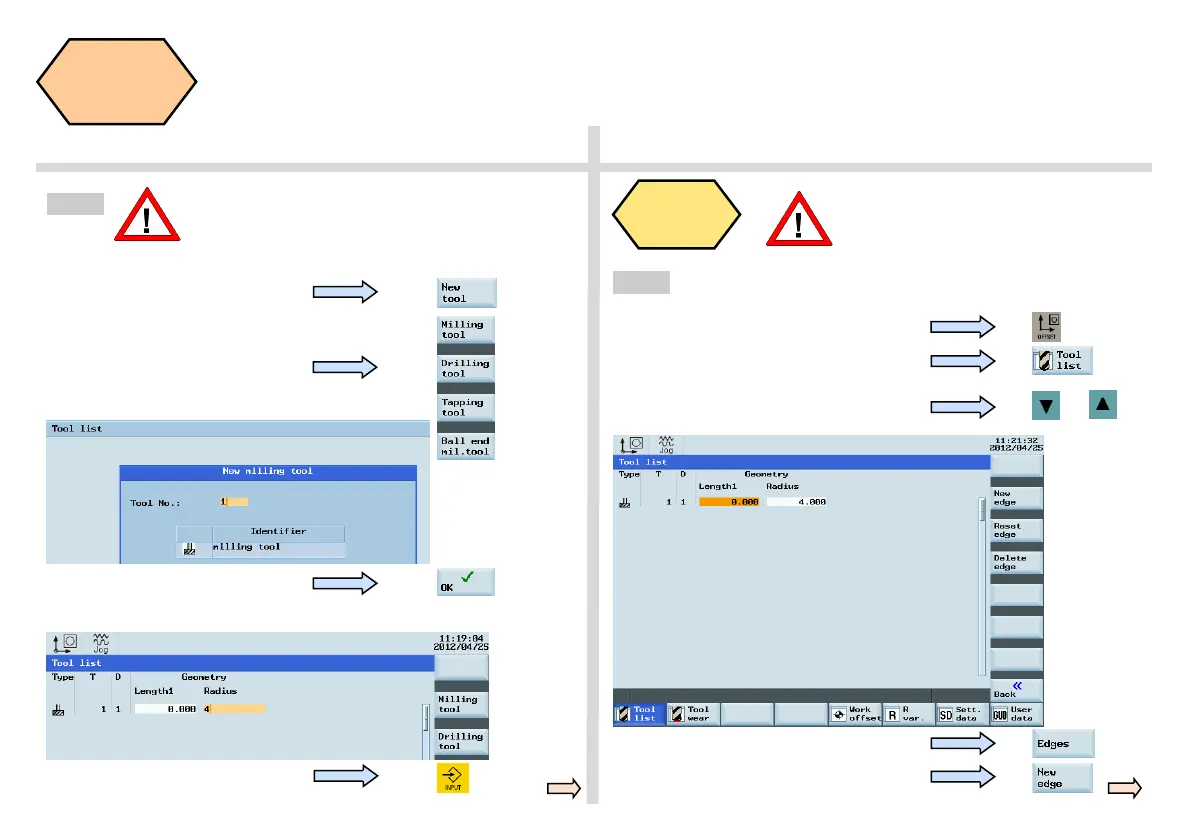

Tool Setup
s
Step 2
Press the “New tool” SK on the PPU.
Enter “1” at “Tool No.”
Press the “OK” SK on the PPU.
Enter the ”Radius” of the milling tool.
Select the type of tool required.
Press the “Input” button on the PPU.
Create tool
edge
Step 1
Press the “Offset” key on the PPU.
A tool must have been created and
selected before creating a tool edge!
Press the “Edges” SK on the PPU.
Use “D” code to specify the tool edge. The system activates tool
edge no. 1 per default at the start.
Use direction keys to select the tool
which needs to add a tool edge.
Or
Press the “New edge” SK on the PPU.
Press the “Tool list” SK on the PPU.
The range of tool numbers which can be created
by this system is 1 ~32000.
The machine can be loaded with a maximum of
64 tools / 128 tool edges.
