Siemens SINUMERIK 808D Operating Guide

808D Page 47 Operating and Programming — Milling
Create Part
Program
Part 2
s
Basic Theory

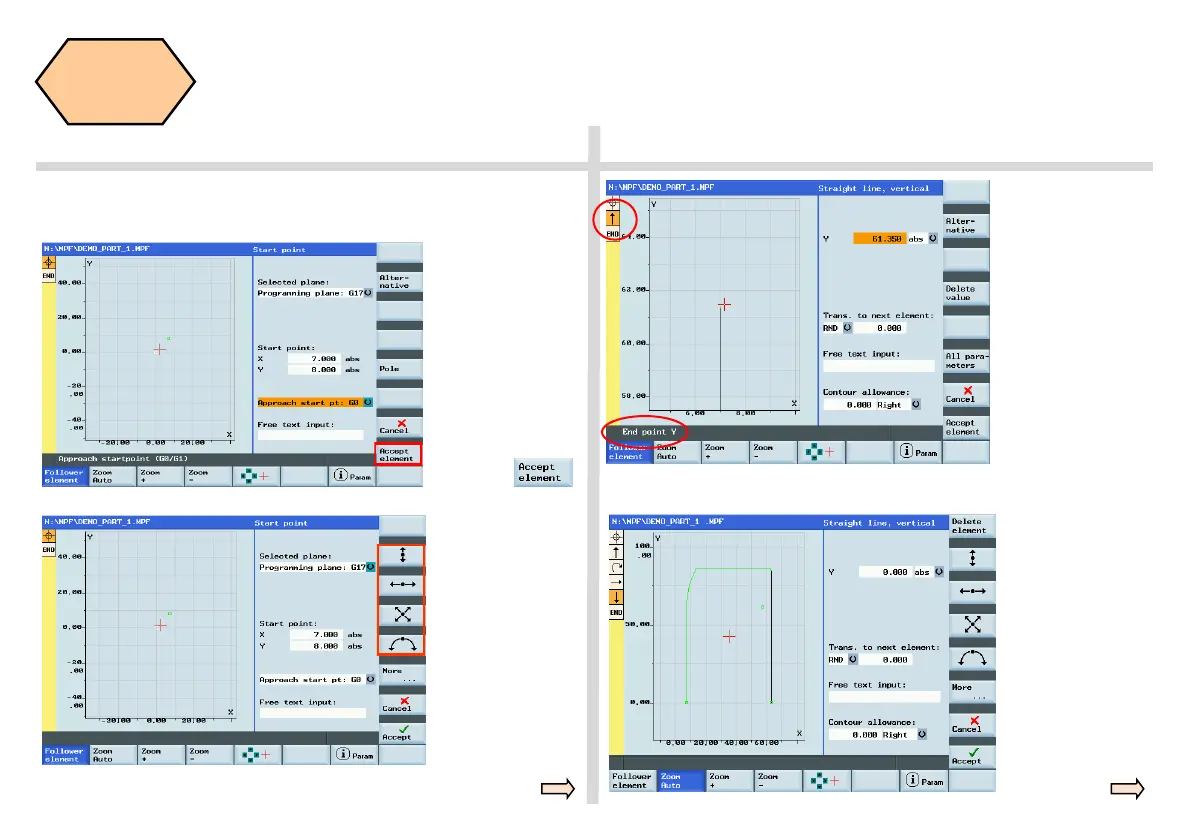

Enter appropriate
start point coordi-
nates as in the
machining figure
and select the
correct approach.
Press the “Accept
element” SK on
the PPU.
Use the arrows on
the PPU to select
the direction and
the shape of the
contour milling.
Press the “Accept
element” SK on
the PPU.
The selected di-
rection is shown at
the top left side of
PPU.
The meanings of
the highlighted
positions is shown
at the bottom of
the PPU screen.
When you have opened the screen for setting the contour data, you can
make the following settings:
Enter the corre-
sponding coordi-
nate parameters.
Select different
items (SKs) to set
the contour until
finishing editing the
whole shape of the
contour.
Press ”accept” SK
on PPU to input the
contour information
in the main program
