Help:
V : Prewarning limit reached
G : Disabled tool
N : Tool not enabled
E : Replacement tool
B : Location occupied
S : Enable workpiece count/tool life
M : Marked tool for unloading
*
: Type of monitoring selected

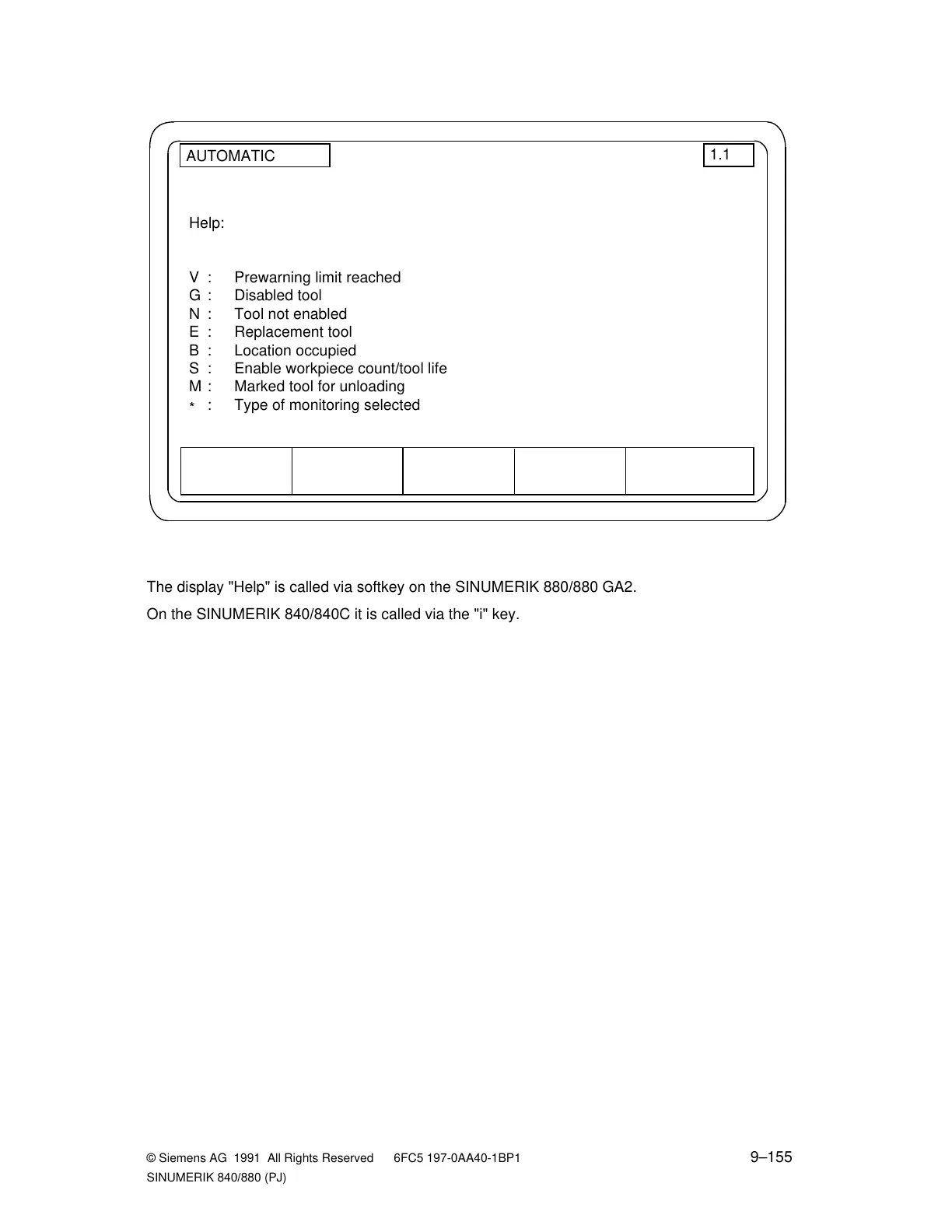

The display "Help" is called via softkey on the SINUMERIK 880/880 GA2.
On the SINUMERIK 840/840C it is called via the "i" key.
© Siemens AG 1991 All Rights Reserved 6FC5 197-0AA40-1BP1 9–155
SINUMERIK 840/880 (PJ)
