Siemens SINUMERIK 840D - 3 Dimension Drawings

Dimension drawings
3
q



q


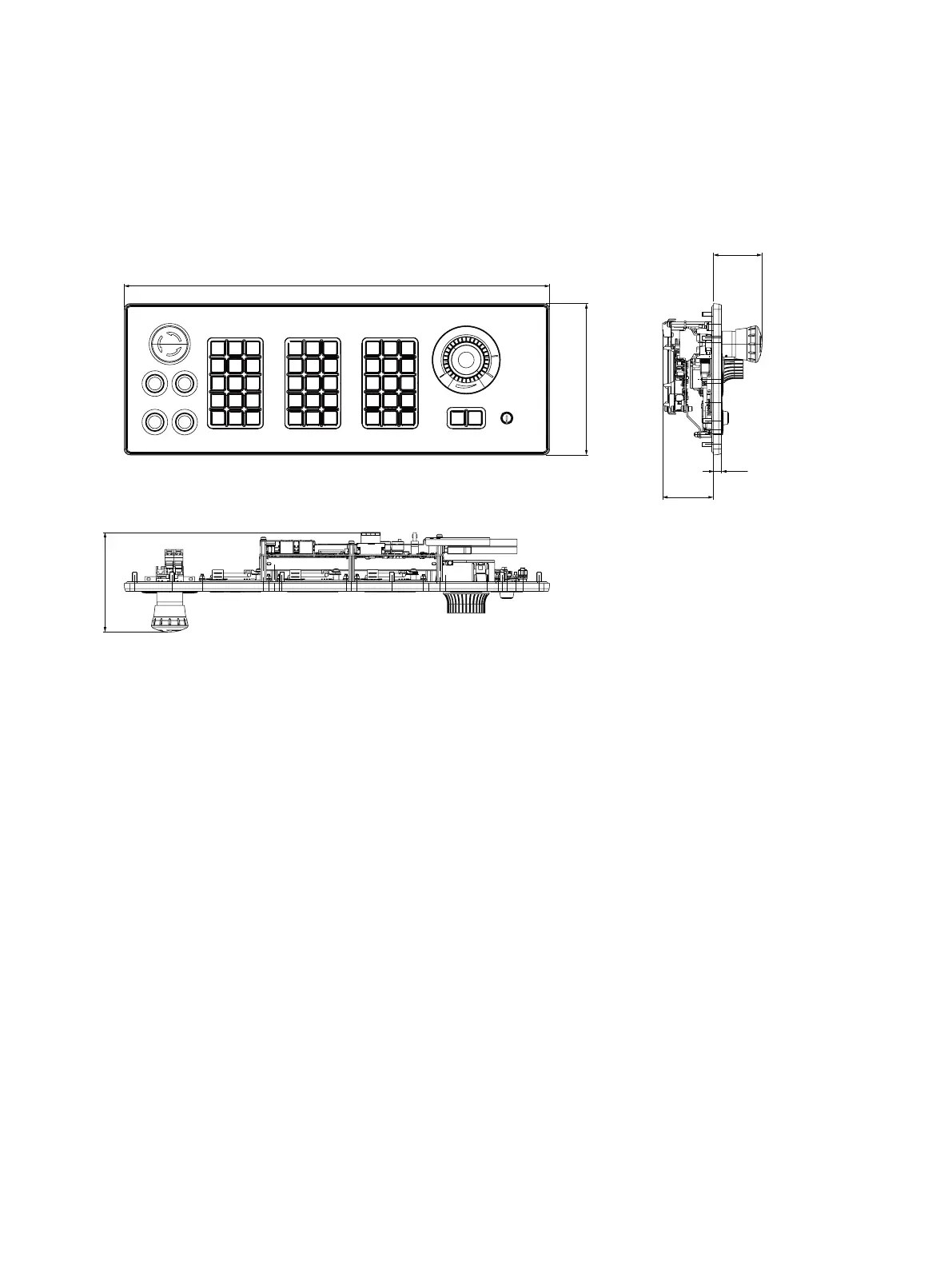

Figure 3-1 Front, rear and side view of MCP 1900 (all speci󹪝cations in mm)
The installation clearance for the MCP is 70 mm.
ONE MCP Part 2: MCP 1900
Equipment Manual, 07/2020, A5E50324718B AA 15
