Notes
Section 2
Operator Panel layouts of the Sinumerik Operate

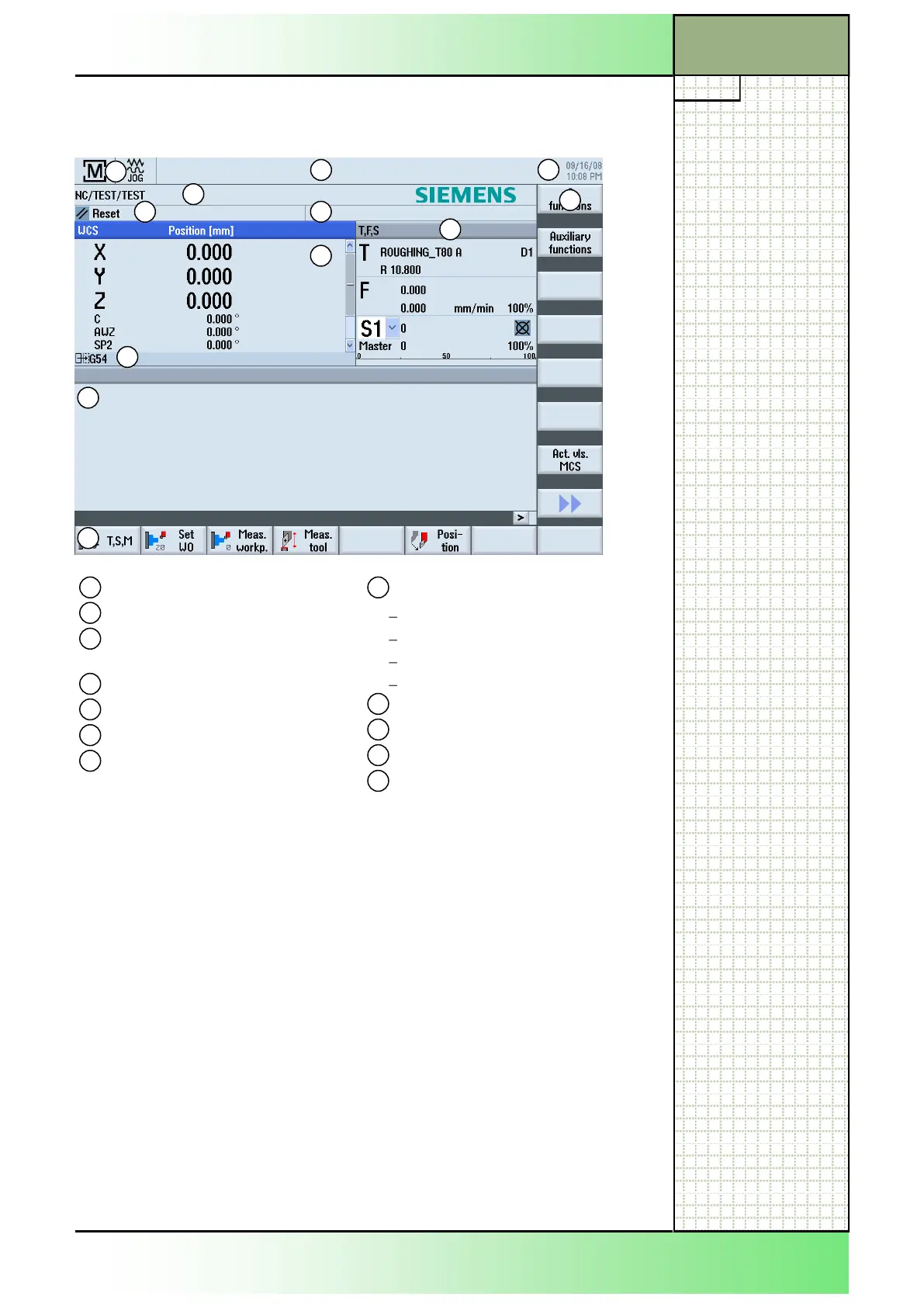

2.4 Screen area
The screen is laid out as follows:
Operation sector
Program path and name
Status, program influence and
program name
Alarm and message line
Canal operation messages
Position readout for the axes
Display of the active zero point
and rotation
1
2
3
4
5
6
7
Display of:
T = Active tool
F = Present feedrate
S = Actual spindle revolution
Spindle load factor in percent
Vertical softkey bar (VSK)
Working window
Horizontal softkey bar (HSK)
Date and Time
8
9
10
11
12
3 5
9
10
11
7
8
1
2
4
6
12
