840D/828D SINUMERIK Operate
Notes
Storage medium “NC”
Section 3
The complete NC-memory is displayed along with all workpieces, the main
programs and subroutines.
The directories and programs are listed with the following informations:
(For navigation in the directory structure refer to module B524 “Operating
area Program”, Section 2.3)
Name
The name can contain up to 28 characters (24 characters for the name
+ dot + 3-character extension, e.g. MPF). Permissible characters in-
clude all upper-case letters (without accents), numbers, and under-
scores.
Type
*.WPD Directory (Workpiece Directory)
*.MPF Program (Mainprogram File)
*.SPF Subprogram (Subprogram File)
*.JOB Joblist (Joblist)
*.TOA Tool data (Tool Offset Active)
*.TMA Magazine assignment (Tool/Magazine data)
*.UFR Zero points (User Frame)
*.RPA R-Parameter (R-Parameter Active)
*.GUD Definitions (Global User Data)
*.SEA Settingdata (Setting data)
*.PRO Protection zone (Protection zones)
*.CEC Sag (Sag/angularity)
*.INI Initialization (Initializing Data)
program
Length
The size of files in byte.
Date/Time
Date and time of file creation or last change

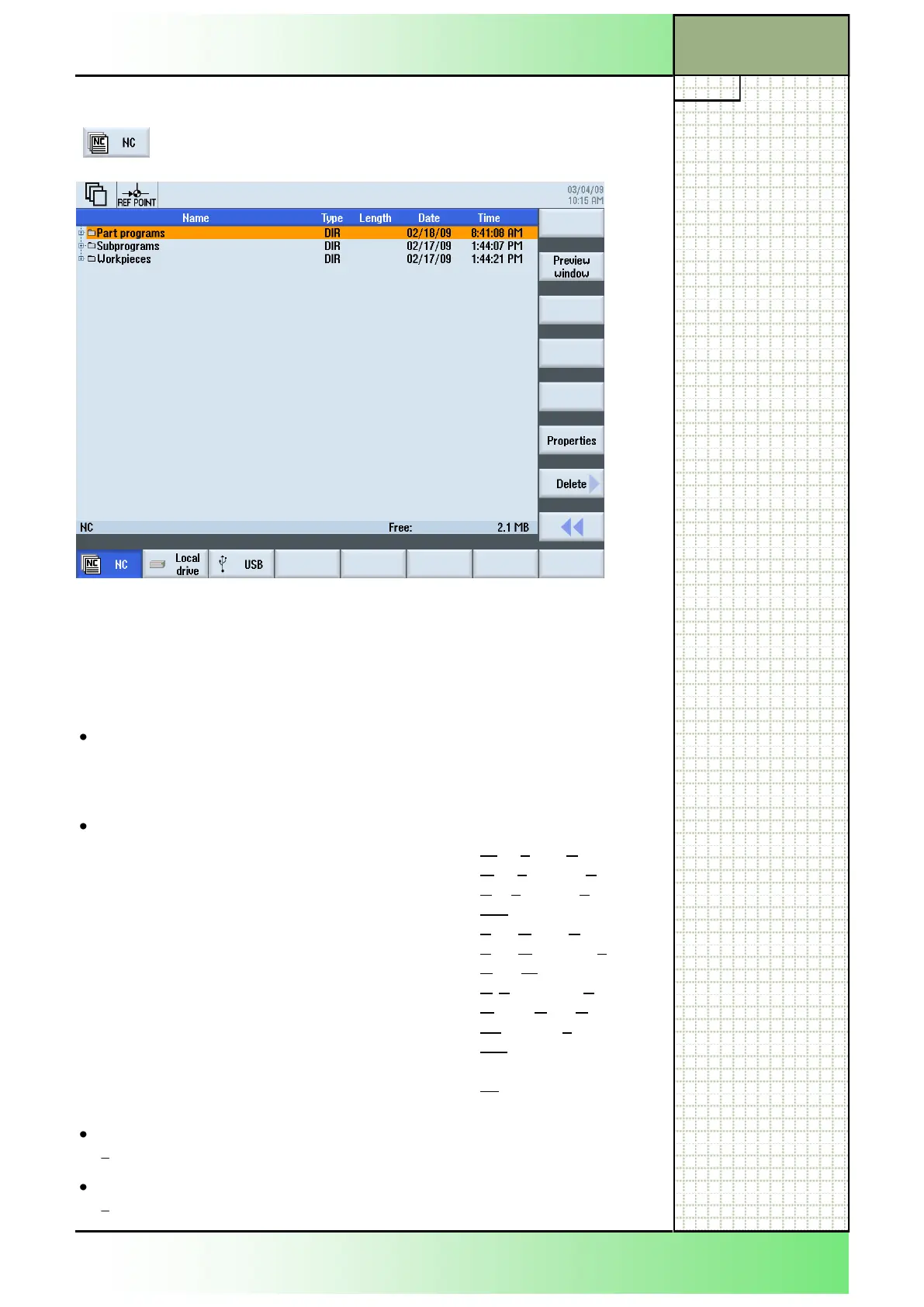

3.1 Selecting the function „NC“
By pressing the HSK 1 “NC“ the program manager
opens with a view at the programs and directories
on the NC.
