5.3 Blank
The blank is needed for the simulation and the simultaneous recording dur-
ing machining.
Only with a blank, which corresponds to the real workpiece as exactly as
possible, a meaningful simulation is possible.
For defining the blank, the form (block centered, pipe, cylinder, n corner)
and the dimensions are needed.
5.3.1 Selecting the function “Blank“

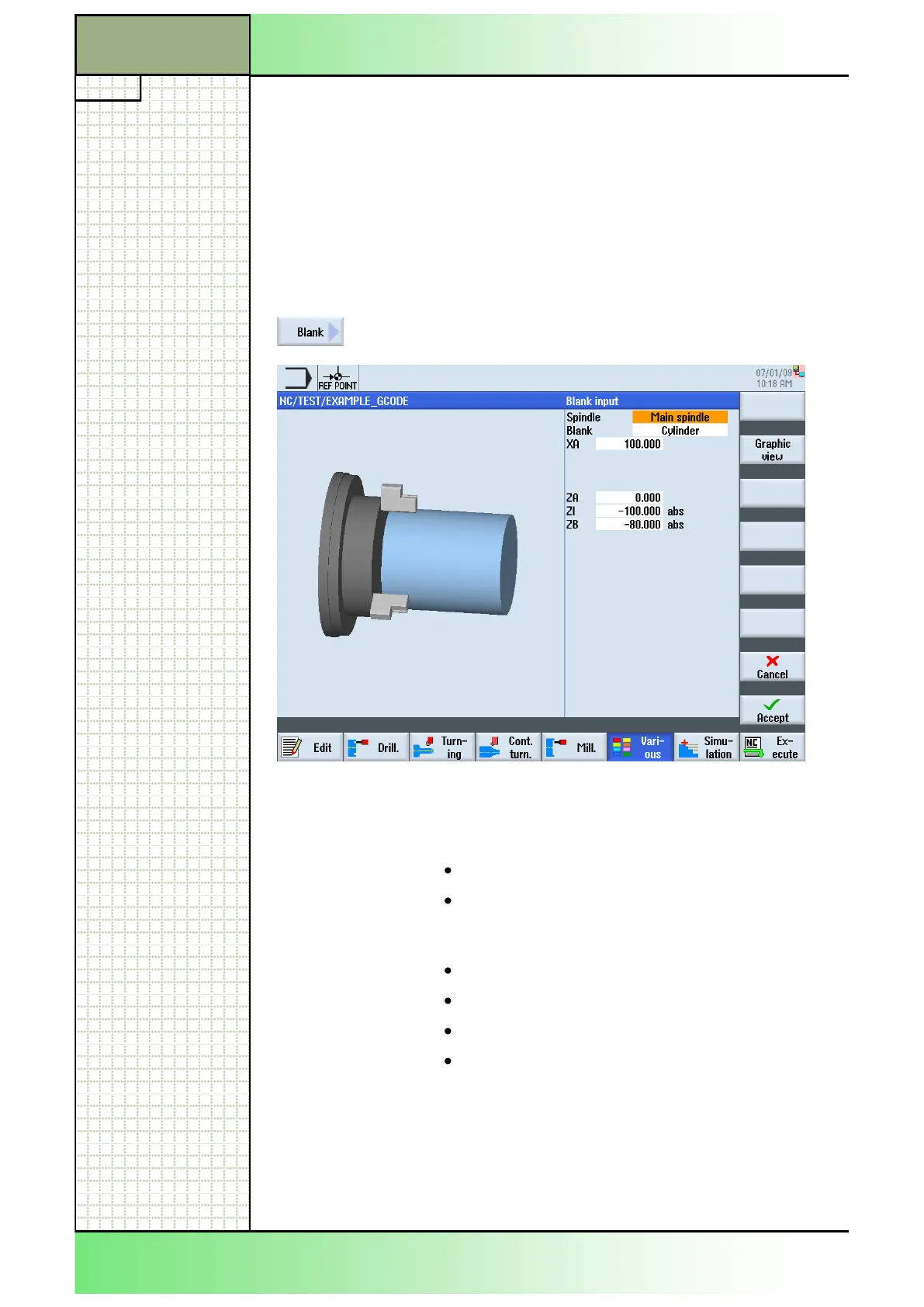

By pressing the VSK 1.1 “Blank” the blank input win-
dow opens.
5.3.2 Parameters for the “Blank”
Parameter Meaning
Spindle
Main spindle
Counterspindle
Blank
The following blank forms can be selected:
Block centered
Pipe
Cylinder
N corner
ZA
Initial dimension
ZI (abs/inc)
Final dimension related to ZA (absolute or incre-
mental)
ZB (abs/inc)
Machining dimension
Section 5
Various
