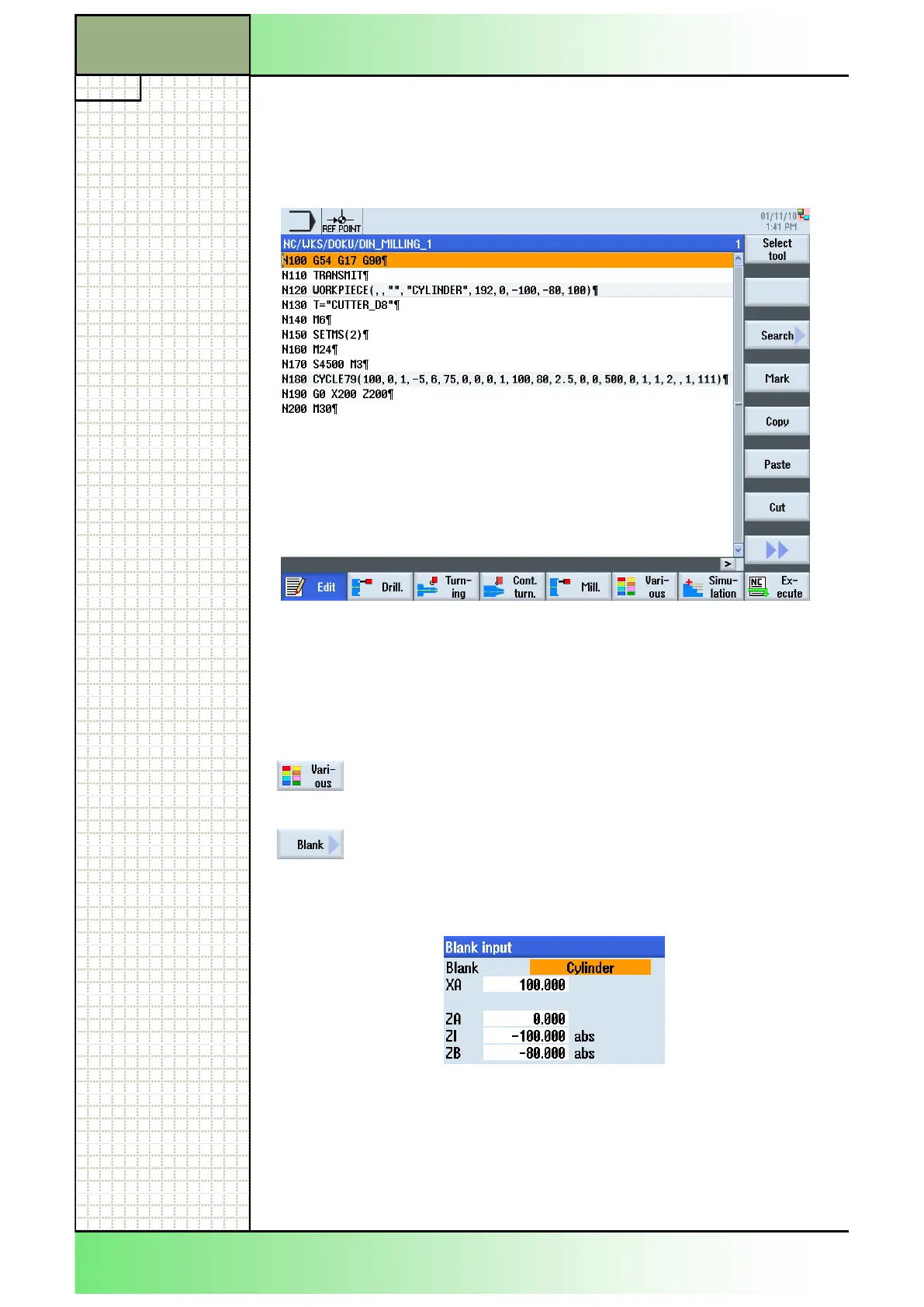

2.2 Programming example: Multi-edged spigot
The following program with a call-up up of a milling cycle is to be pro-
grammed:
1. Program the first two G code commands:
N100 G54 G17 G90
N110 TRANSMIT
2. Insert now blank for the simulation into the program.
Press the HSK 1.6 “Various” to open the work area
“Various”.
Press the VSK 1 “Blank” to open the parameter
mask for the blank input.
3. Insert the following values for the blank into the pa-
rameter mask.
Confirm your inputs with pressing the VSK 8
“Accept”.
The following line is inserted into the program:
N120 WORKPIECE(,,"","CYLINDER",192,0,-100,-
80,100)
Section 2
Simple programming example
