Dimensioning for the X-axis
Effect of the command “DIAMOF” under G90:
Effect of the command “DIAMOF“ under G91:
Programming example : Explanation:
N70 ….
N80 G90 DIAMOF; Absolute dimensions, diameter progr. OFF
N90 G01 X0 Z0; Original position to the radius 0
N100 X15; Motion to the radius 15
N110 Z-10
N120 X30; Motion to the radius 30
N130 DIAMON; Diameter programming ON
N140 ….
Programming example : Explanation:
N70 ….
N80 G90 DIAMOF; Absolute dimensions, diameter progr. OFF
N90 G01 X0 Z0; Original position to the radius 0
N100 G91; Incremental dimension
N110 X15; Motion by radius 15
N120 Z-10
N130 X15; Motion by radius 15
N140 G90 DIAMON; Absolute dimensions, diameter progr. ON
N150….

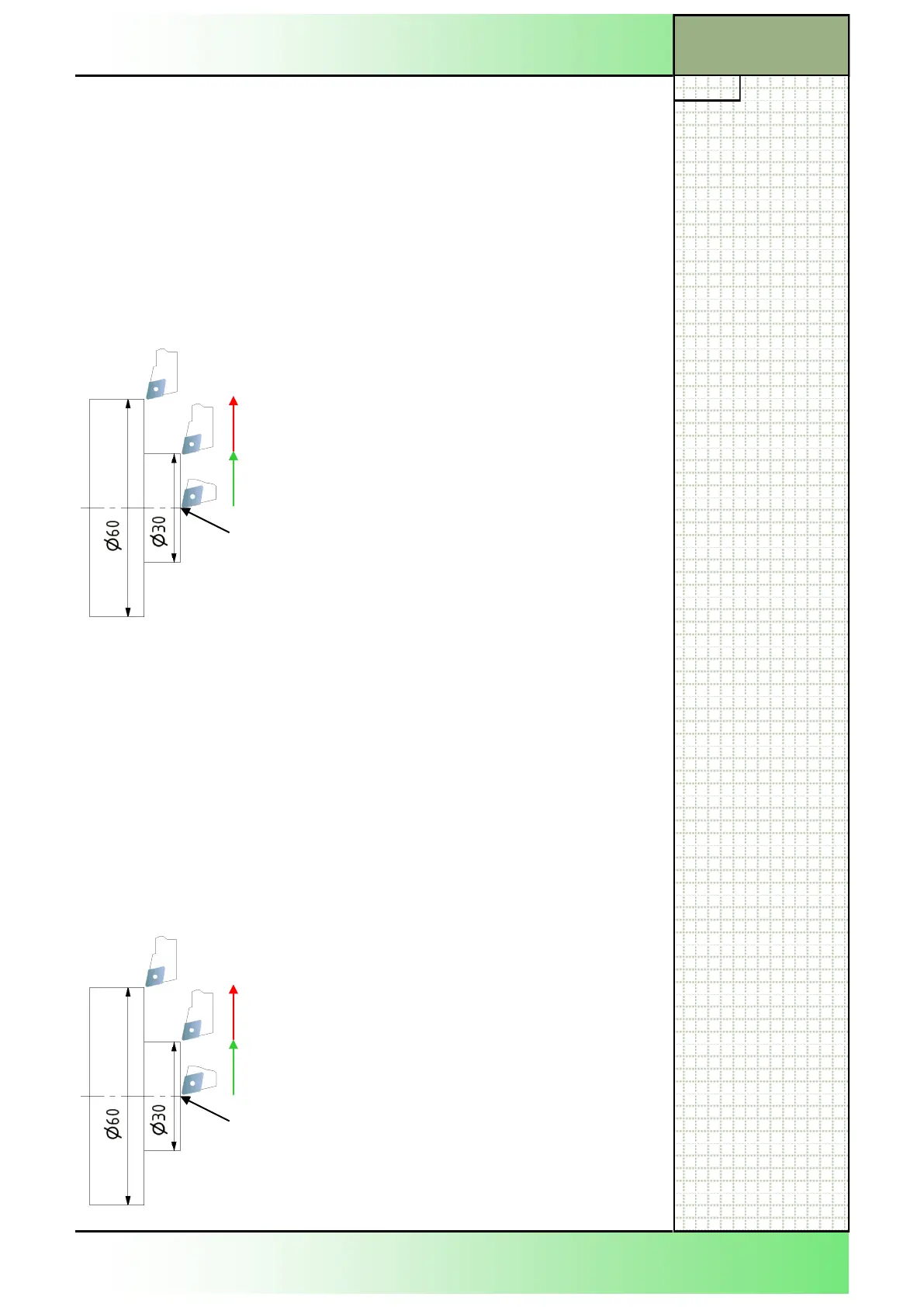

N120 Motion to the radius 30
N100 Motion to the radius 15
N90 Original position des Werkzeuges
N120 Motion by radius 15
N100 Motion by radius 15
N90 Original position of the tool
