Parameter screen with graphic view
Press the "Graphic view" softkey to toggle between the help screen and
the graphic view.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switchover between the help
screen and the graphic view.

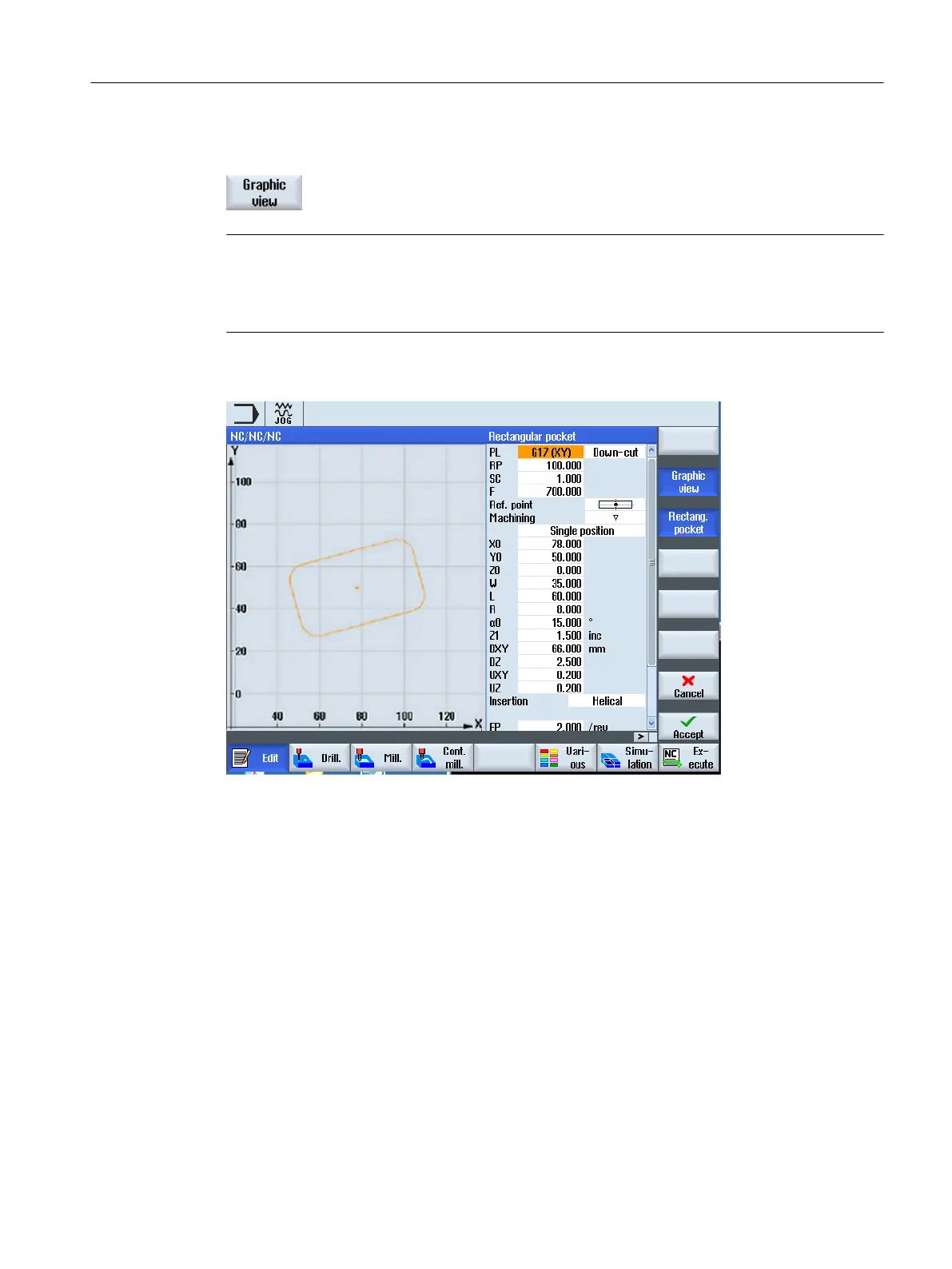

Figure 8-3 Parameter screen with a graphical view of a G code program block
See also
Editor settings (Page 222)
Generating a G code program
