Siemens SINUMERIK 840DE SL - Page 694

/HQJWK
'LDPHWHU
&RUQHUUDGLXV

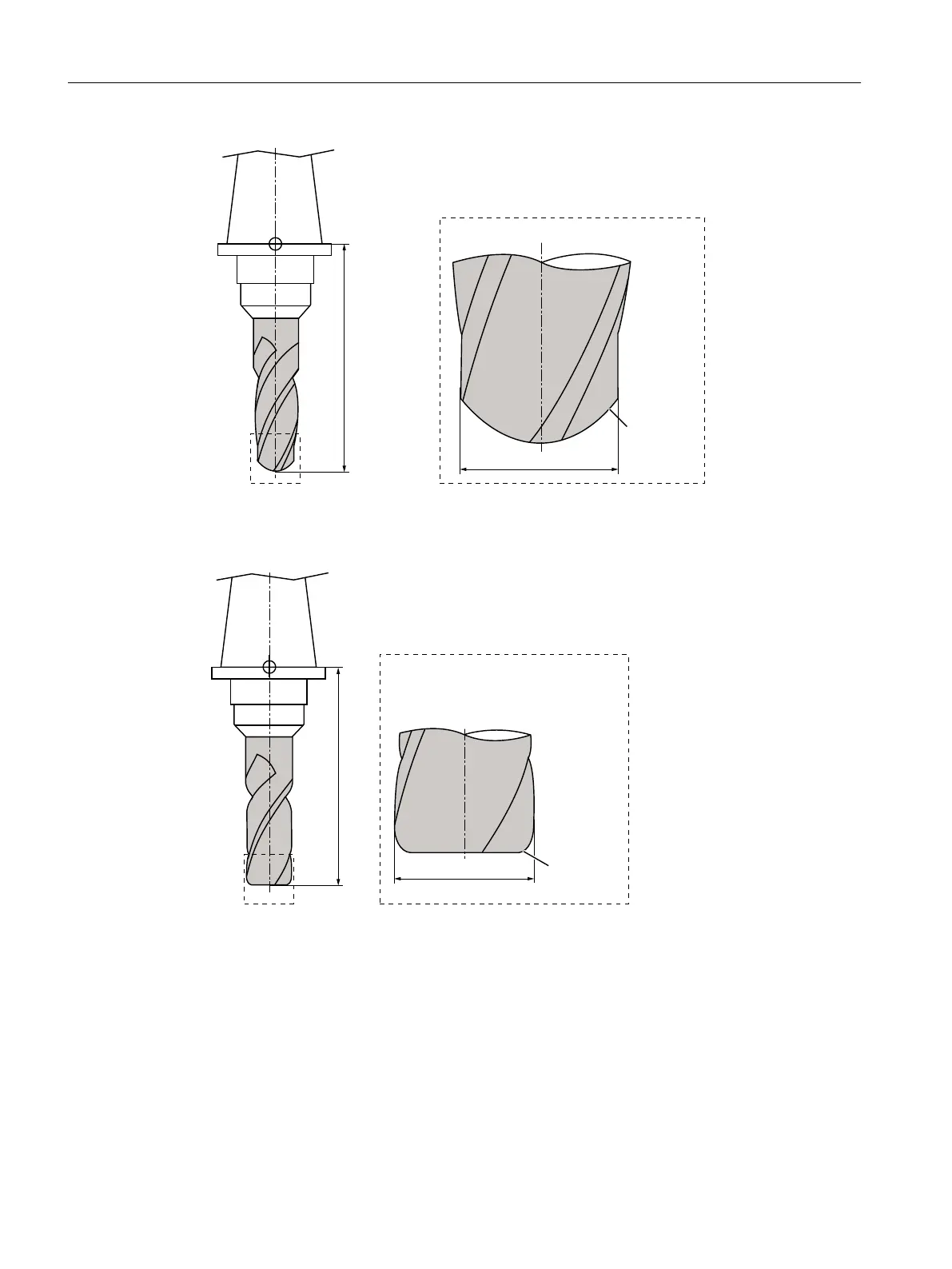

Figure 13-11 3D tool type with an example of a ballhead cutter (Type 111)
/HQJWK
'LDPHWHU
&RUQHUUDGLXV
Figure 13-12 3D tool with an example of an end mill with corner rounding (Type 121)
Tool management
13.4 Tool dimensioning
Milling
694 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
