08.02 Turning with Cycles
5.3 Stock removal/
g
roovin
g
c
y
cles in STOCK REMOVAL mode
5
© Siemens AG, 2002. All rights reserved
SINUMERIK 840D/810D Operator's Guide ManualTurn (BAM) – 08.02 Edition 5-109
BS

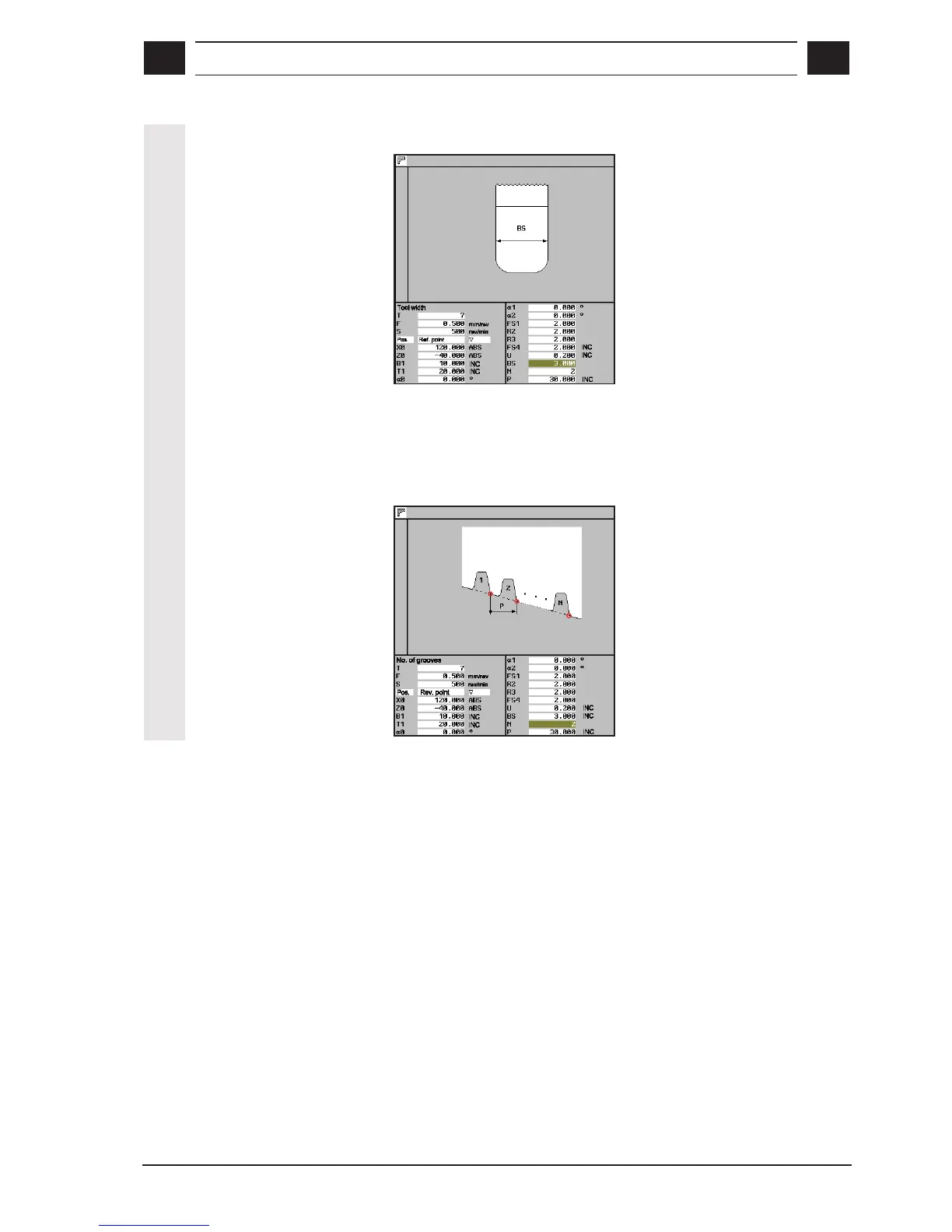

Tool width
N Number of grooves; with N = 1, P is not displayed.
P
Distance of grooves
• Longitudinal groove: parallel to Z axis
• Face groove: parallel to X axis
