6.10 Linear motors (1FN1 and 1FN3 motors)
6-157
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
b) Is the linear motor not included in the list of linear motors?
––> unlisted motor
“Motor” field ––> enter data

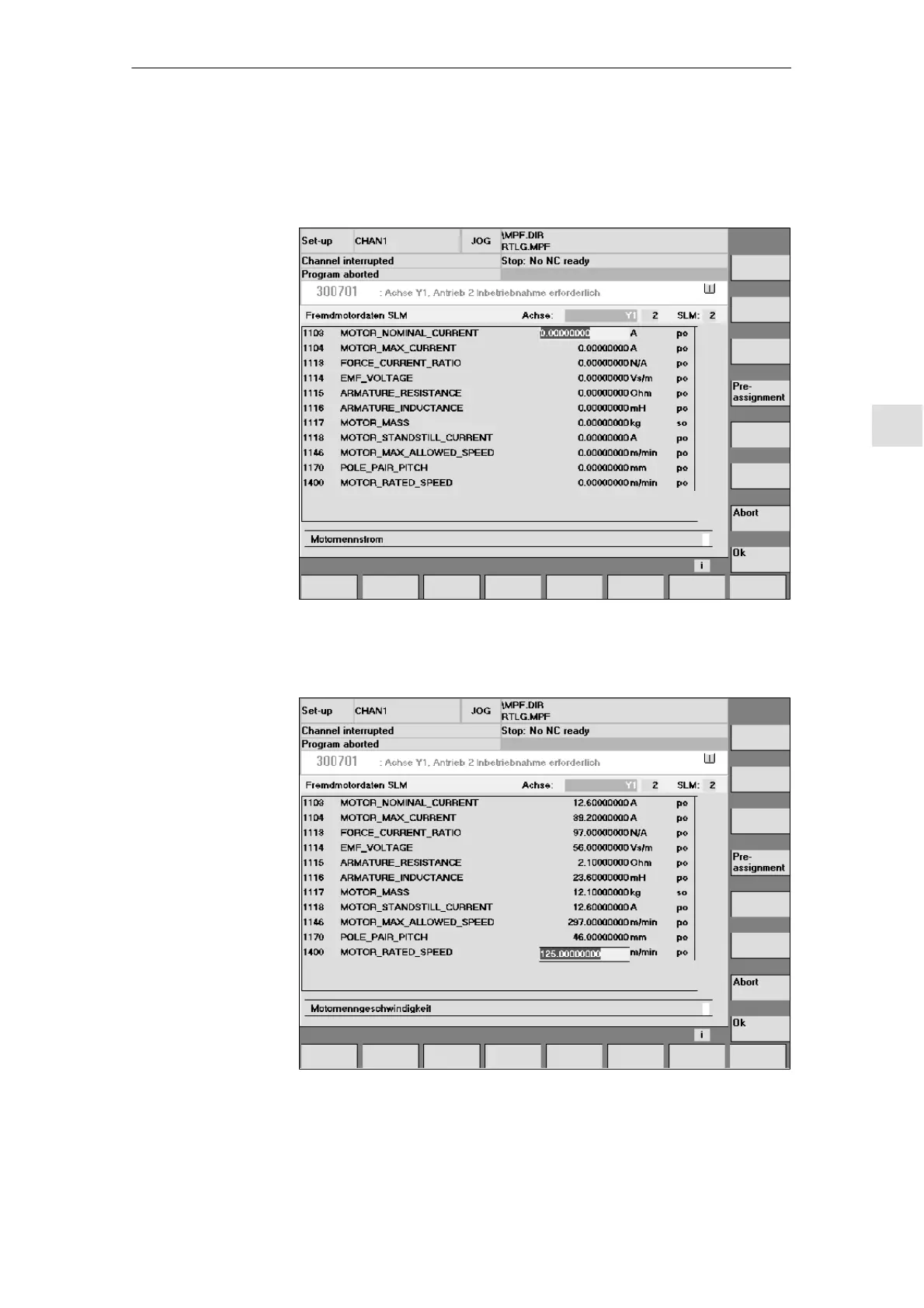

Fig. 6-28 Entering a motor without listed data
Enter the motor data:
Fig. 6-29 Entered motor data for “unlisted motor”
