6 Assi
nin
Parameters to the Control and the PLC Pro
ram
6
03.96
6.10 Linear motors (1FN1 and 1FN3 motors)
6-156
Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
3. Select the motor
Before the motor is selected, message 300701: “Start-up required” must be
displayed. (Fig. 6-27)
a) Is the linear motor included in the list of linear motors?
If yes: Select the appropriate motor
(parallel-connected linear motors start with 2x1FN. ...)

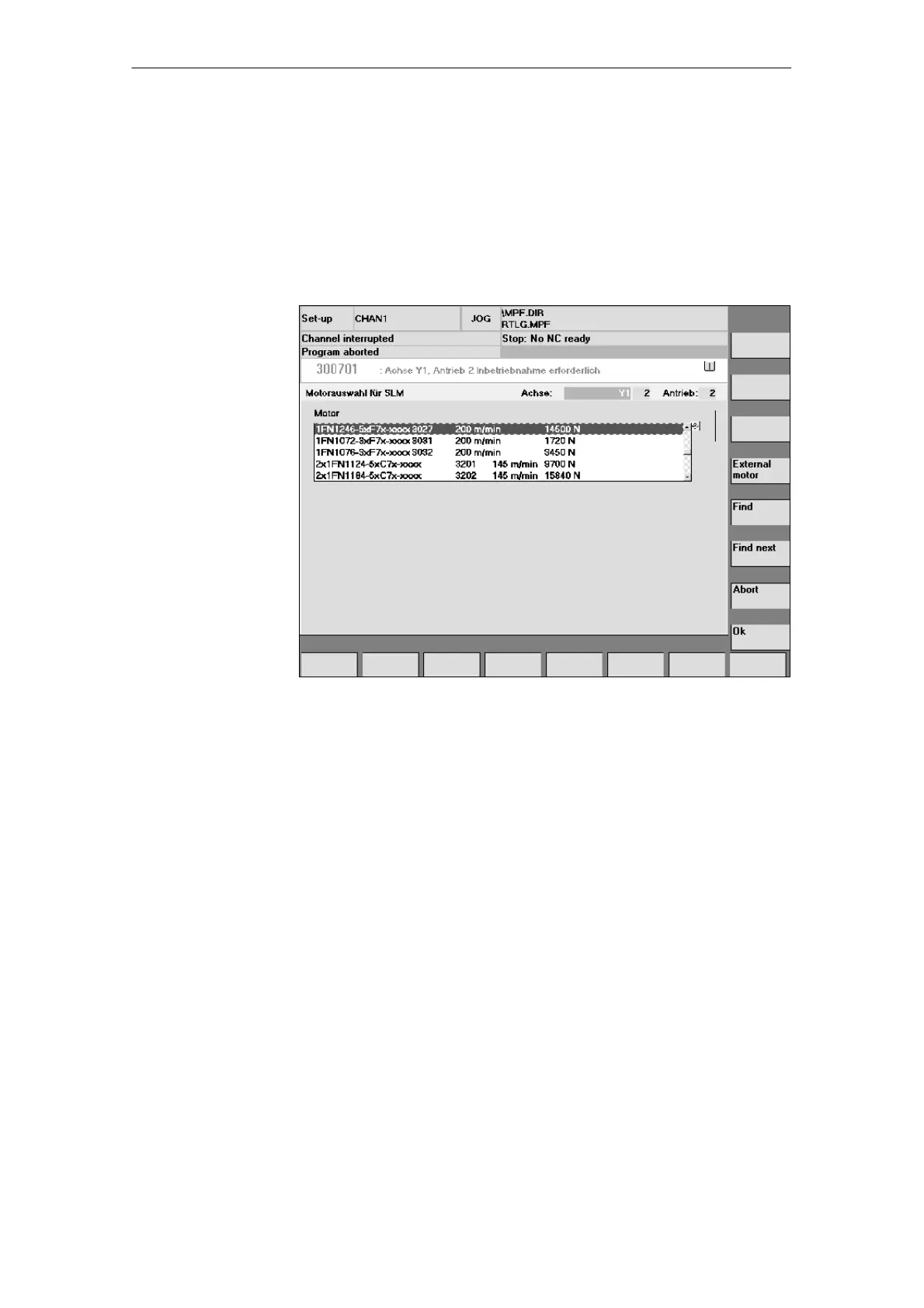

Fig. 6-27 Selecting a motor for which the data are already listed
04.00
