Procedure
1. Release the latch on the inside of the front cover (the front cover is open and in the up
position) through slight pressure on it from the top.
2. Fold the front cover down to the front and bottom to give access to the interfaces.
① Hooks
② Front cover
③ Release hooks
④ Hinge, can be opened and closed
⑤ Service cover

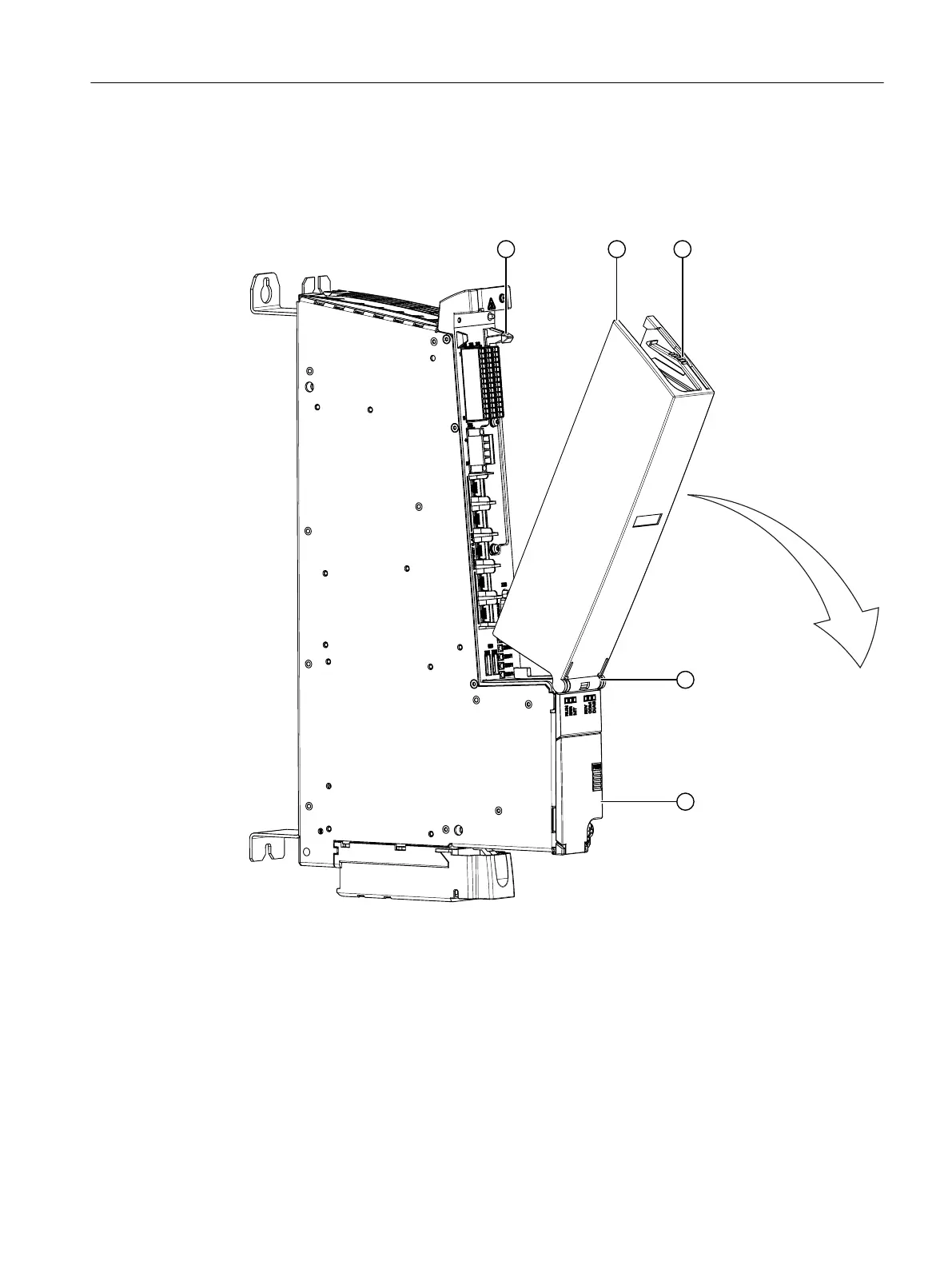

Figure 8-2 Removing the front cover
Connecting
8.4 Opening the front cover
NCU 1750
Equipment Manual, 01/2022, A5E45627807B AE 61
