Assembling the emergency stop button
A description of how to connect the emergency stop button with the front plate is given below.
1. Insert the emergency stop button into the front plate.
2. Align the groove in the emergency stop button with the front plate.
Depending on how you align the groove, the switching element is then mounted horizontally
or vertically.
Groove position Contact block position
90° Vertical
180° Horizontal
270° Vertical
360° Horizontal
3. Push the metal claw with the claws toward the front, making sure that you insert
the lug of the metal claw into the groove of the emergency stop button.

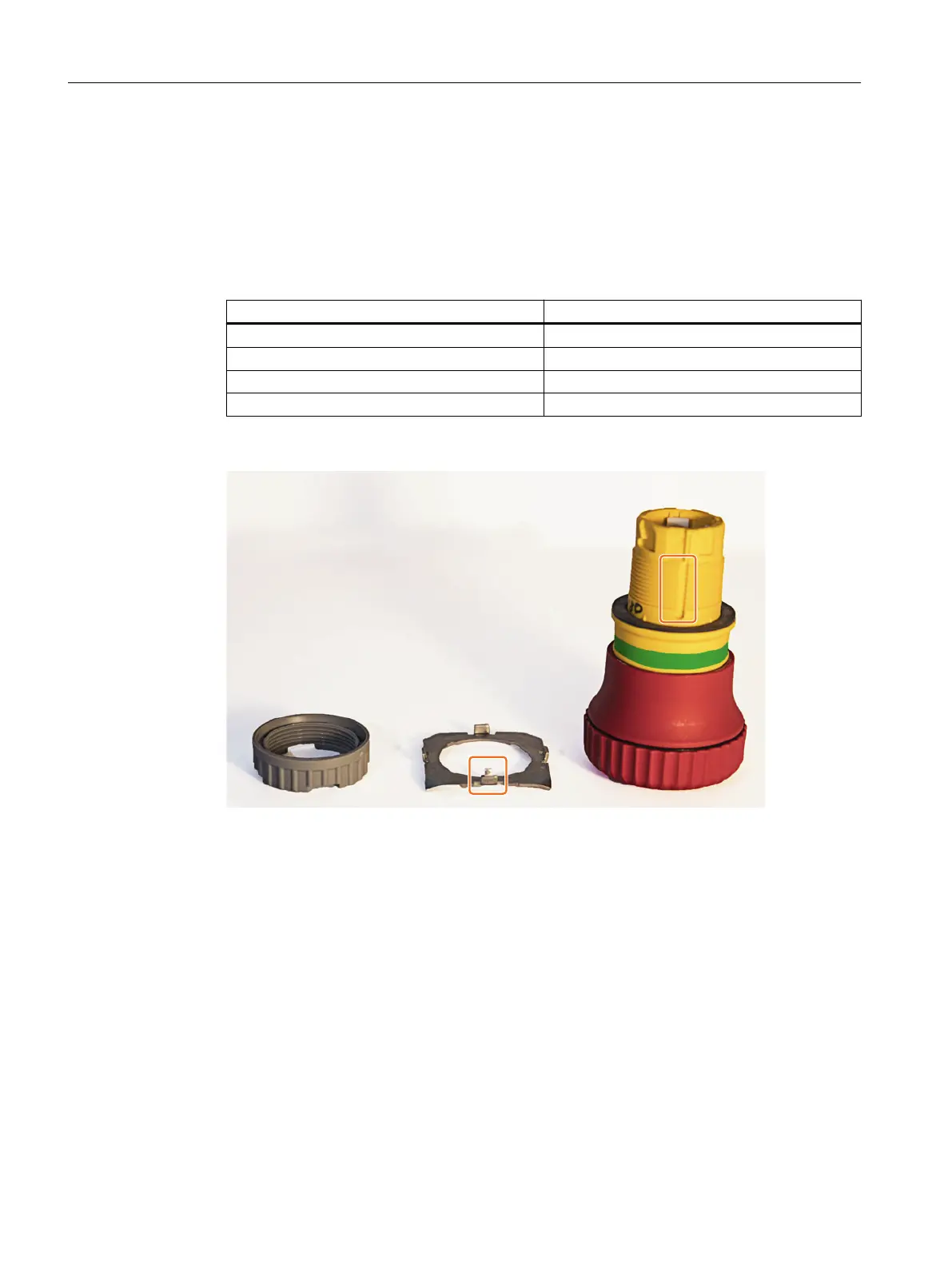

Assembly of the emergency stop button
Emergency stop button
16 Equipment Manual, 10/2020, A5E49939755B AA
