Mounting of the contact blocks
4
Mounting
1. Fasten the actuating element in the front plate with the threaded ring and the metal claw.

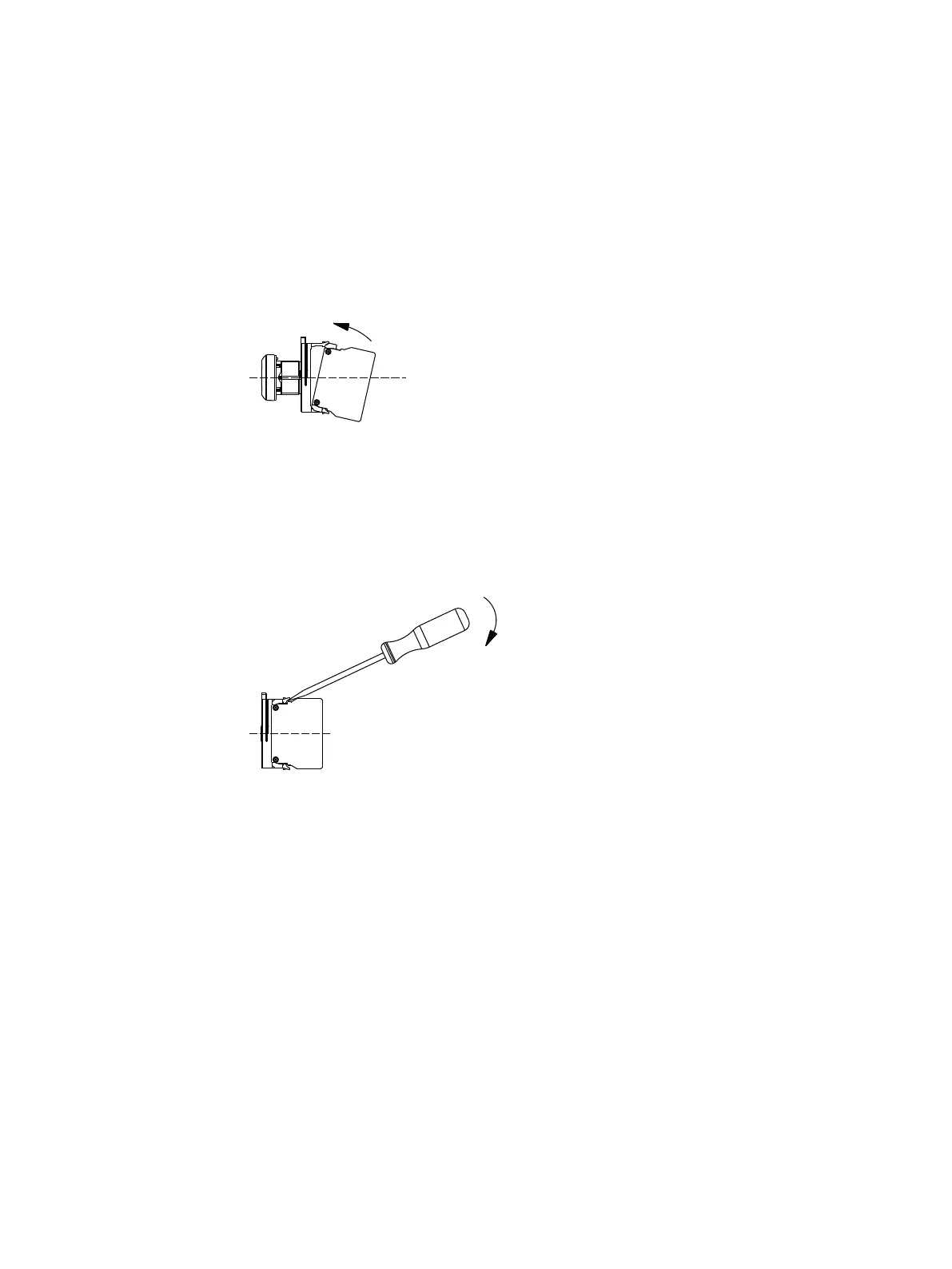

2. Insert the contact block into the coupling as shown and snap it into place.
3. Connect the cables.
Disassembly
1. Remove the cables.
2. Loosen the locking lever of the coupling with a screwdriver as shown and remove the contact
blocks.
3. Unscrew the threaded ring of the actuating element to detach the actuating element from
the front plate.
Emergency stop button
Equipment Manual, 10/2020, A5E49939755B AA 21
