Dimensions
Panel Surface Mounting
[dw_7xr81-6, 1, en_US]

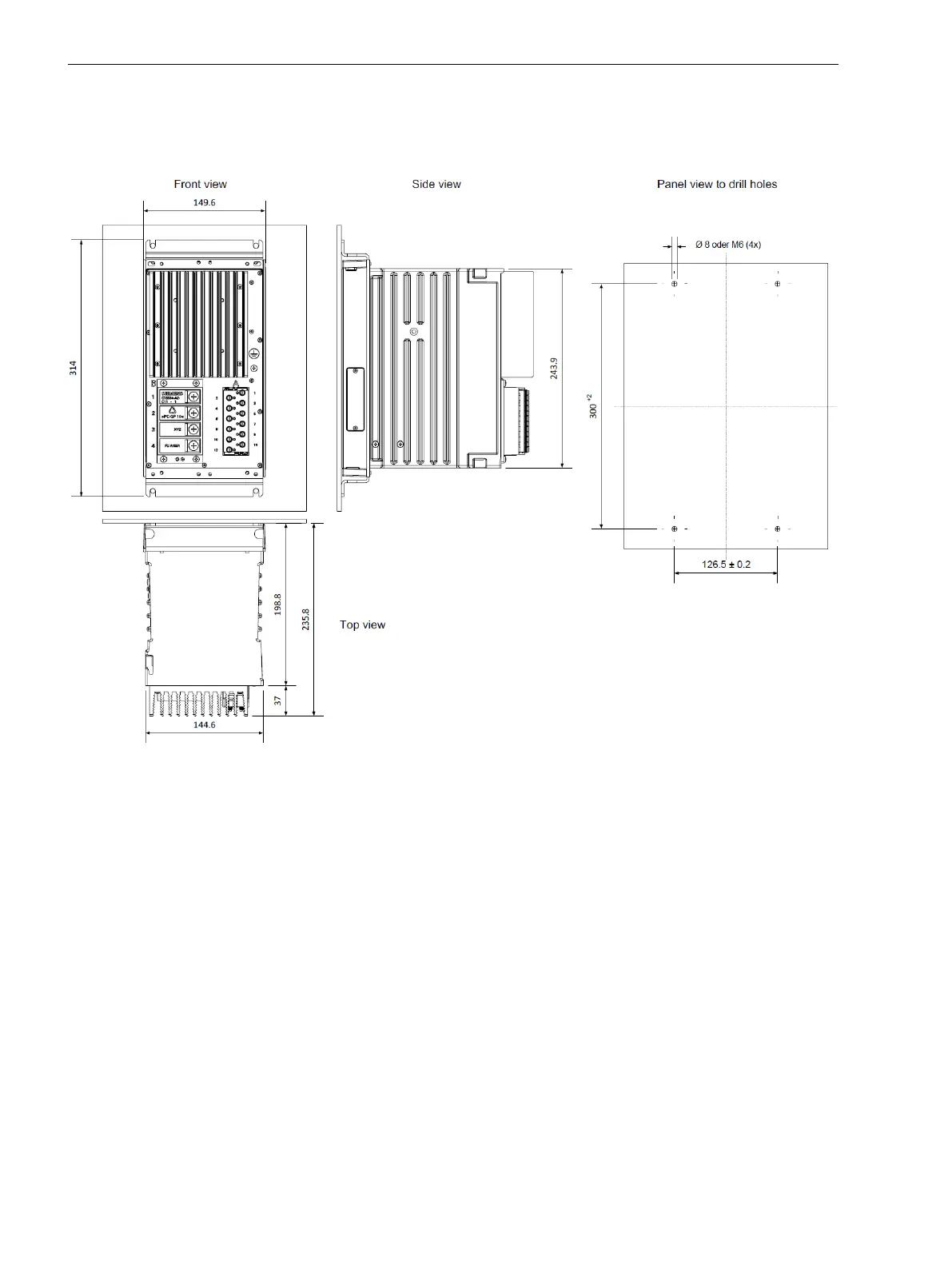

Figure 1-4
7XR81 Surface Mounting Dimensions
1.3.2
1.3.2.1
7XR81 – Coupling Device for Rotor Ground-Fault Protection
1.3 Construction Properties
16 SIPROTEC, Coupling Units for Generator Protection, Manual
C53000-H5040-C072-1, Edition 09.2018
