Operation (software)
3.1 Handling instruction for execution of scripts
Option L34 parameterizing the circuit breaker on the output side
16 Operating Instructions, 04/2014, A5E02914106A

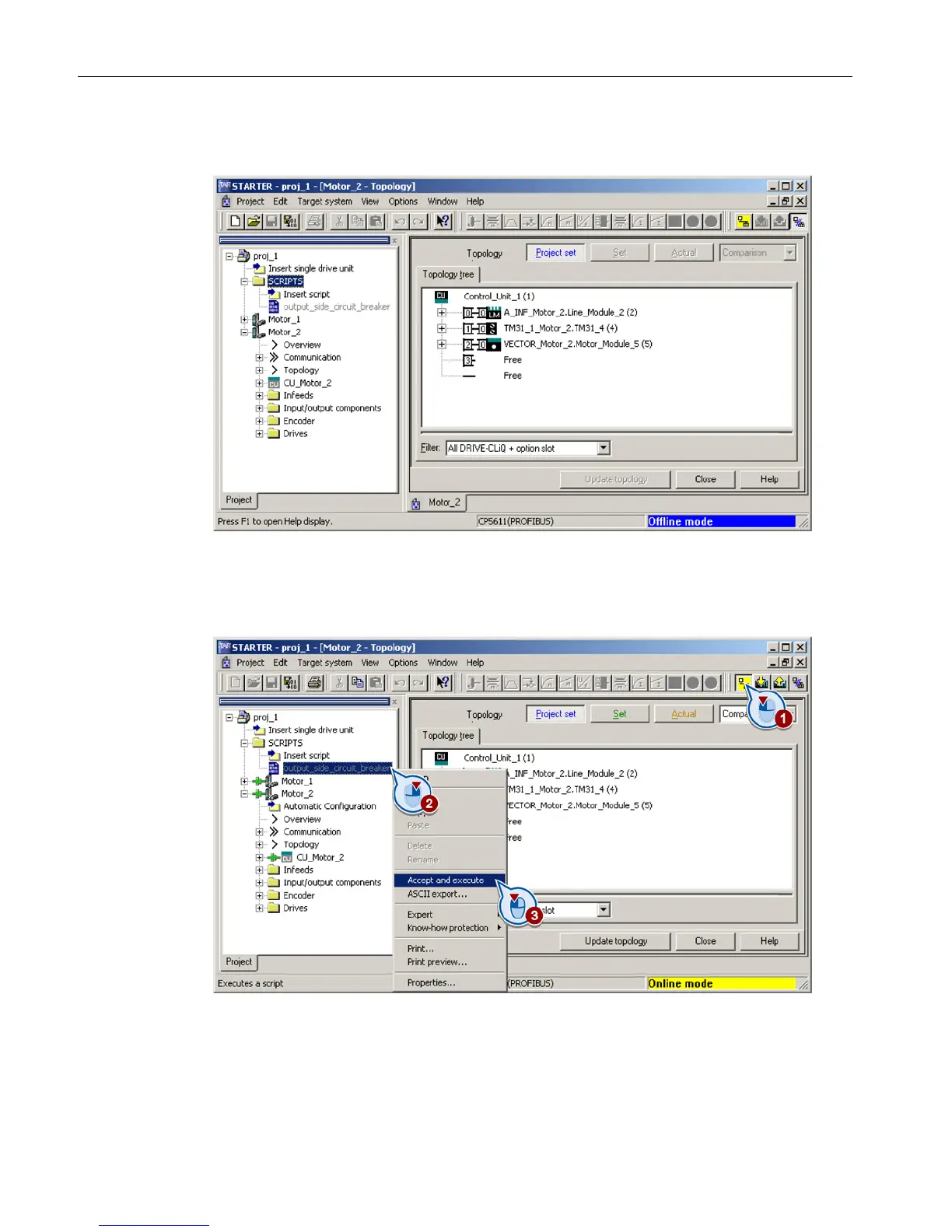

Your inserted script should look like this:
Accepting and executing the script
For the following steps, you must have the project in online mode.
1. Left-click > "
" in the toolbar.
2. Right-click the script > "
output_side_circuit_breaker
" in the project navigator to open the
context menu of the script.
3. Then left-click > "
" in the context menu. The script is saved and
executed.
