Fault, what to do? en
31
Waste water pump
Large food remnants or foreign objects
which were not captured by the filters
may block the waste water pump. The
rinsing water will then be above
the filter.
m Warning – Risk of cuts!
When cleaning the waste water pump,
ensure that you do not injure yourself
on pieces of broken glass or pointed
implements.
In this case:
1. First always disconnect
the appliance from the power supply.
2. Take out top basket 12 and bottom
basket 1b.
3. Remove the filters 1Z.
4. Scoop out water, use a sponge if
required.

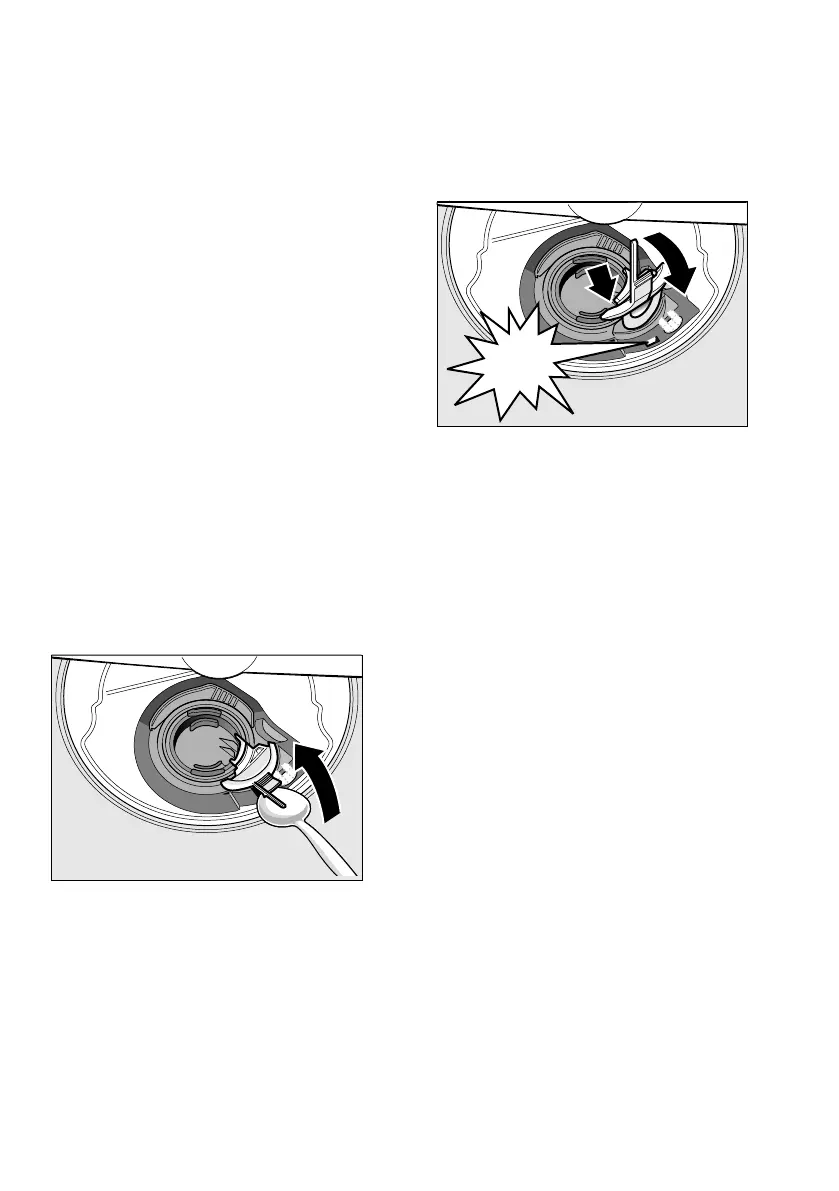

5. Prise out the white pump cover
(as illustrated) using a spoon. Grip
the cover on the crosspiece and lift
diagonally inwards. Remove cover
completely.
6. Check impeller wheel and remove
any foreign objects.
7. Place cover in the original position
and press down until it engages
(click).
8. Install filters.
9. Re-insert baskets.
&/,&.
