Siemens SQL36E series User Manual

12/12

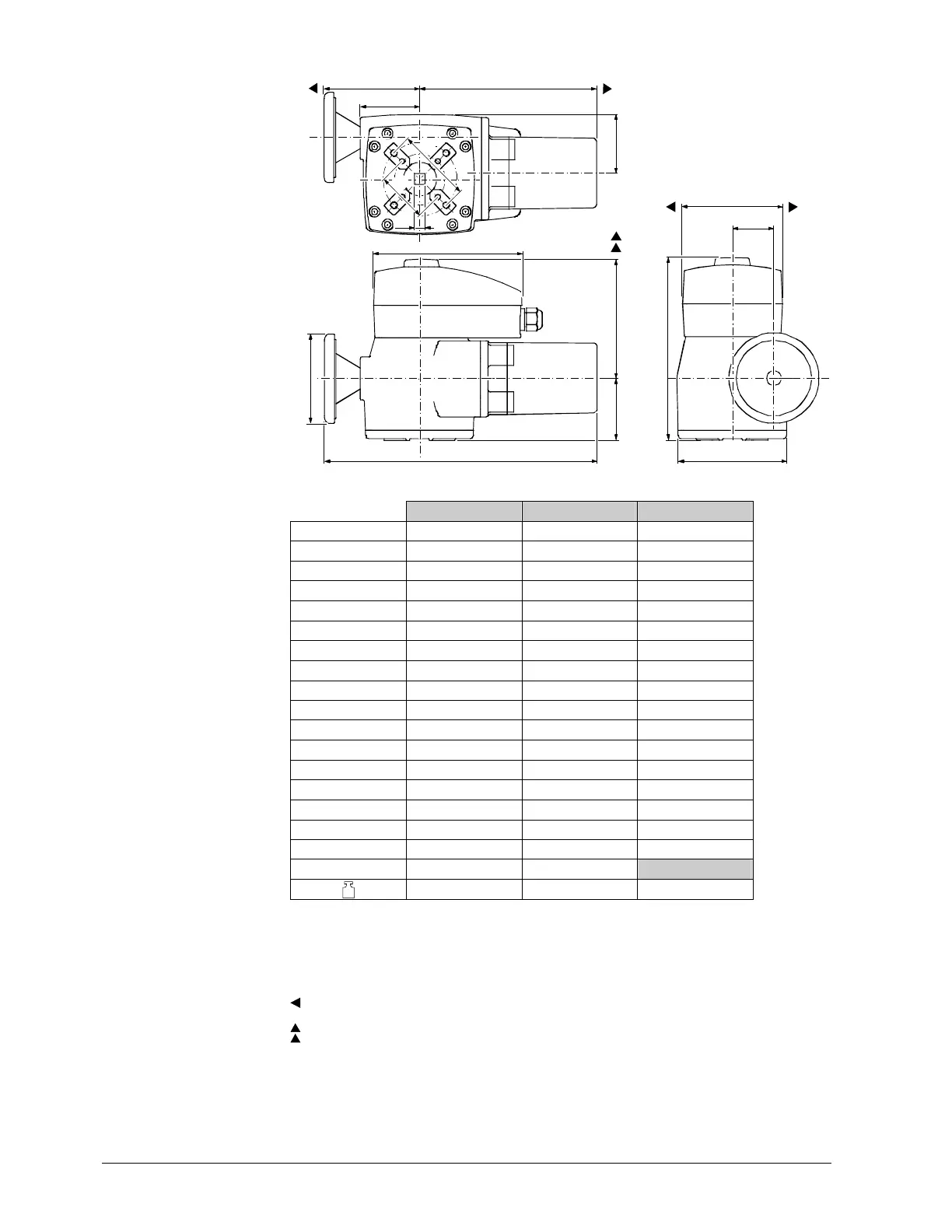

Building Technologies Electromotoric Actuators CA1N4505en
HVAC Products 26.10.2006
4505M02
K
J
E
Y
Z
X
A
F
M
H
D
C
B
L
G
I
[mm]
SQL36E65 SQL36E110 SQL36E160
DN 150…200 250…400 (350) 450…600
1)
A 208 208 208
B 78 88 112
C 157 169 170
D 235 257 282
E 65 81 110
F 65 87 126
G Ø 80 Ø 125 Ø 200
H 42 58 89
I 125 150 175
J 171 247 280
K 119 136 157
L 290 383 437
M 139 139 139
X ¨ 17 ¨ 22 ¨ 32
Y 70 102 165
Z 50 70 125
EN 5211 F07 F10
2)
kg
7 kg 14 kg 25 kg
1)
DN 350 / 400: VKF46.350TS, VKF46.400TS
2)
EN 5211 F12 / F16 flange connections for third-party actuators are available on request.
> 100 mm: Minimum clearance from wall or ceiling
> 200 mm: For mounting, connection, operation, service, etc.
SQL36E65
SQL36E110
SQL36E160
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
 2003 – 2006 Siemens Switzerland Ltd
Subject to alteration
