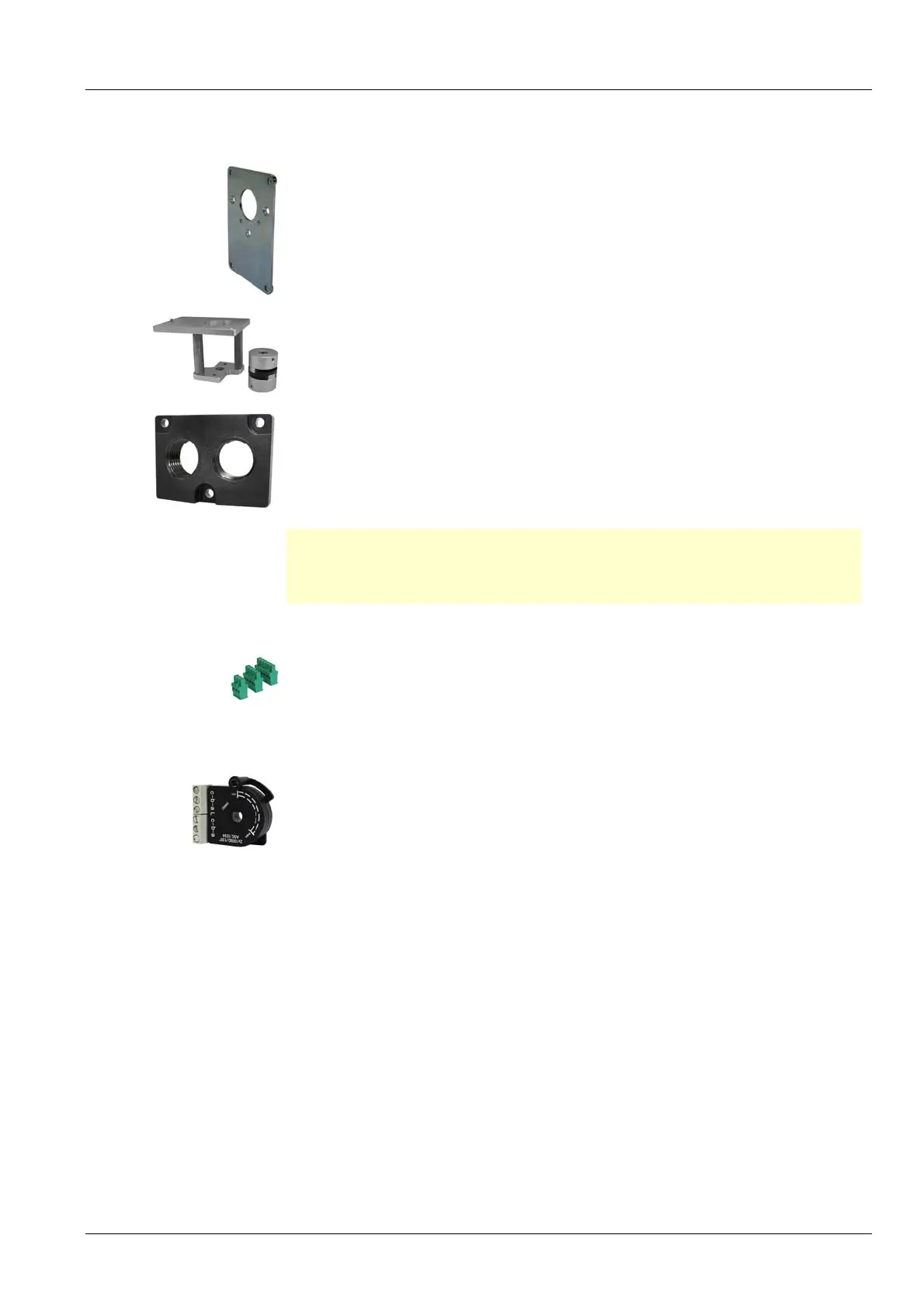

Accessories
Mounting plate ASK33.1
For mounting the SQM40... / SQM41... onto the VKP... proportional controlling
element
See Mounting Instruction 74 319 0843 0 (M7646)
Mounting kit ASK33.4
For fitting SQM40... / SQM41... to the butterfly valve VKF41.xxC
See Mounting Instruction 74 319 0916 0 (M7813 / 7814)
Front cover (on request)
For making the connections for the power supply lines
- For 1/2" NPT protective sleeve
A
GA45.11
- For metric cable gland
A
GA45.1
2

Note!
Front covers AGA45.11 and AGA45.12 are only to be used as replacements.
The corresponding AGA45... version is factory-prefitted onto the SQM40... /
SQM41...
Connector sets (on request)
With screw terminals for replacement:
- For SQM4x.x1xxxx AGA45.1
- For SQM4x.x4xxxx AGA45.4
- For SQM4x.x2xxxx, SQM4x.x5xxxx AGA45.5
- For SQM4x.x3xxxx, SQM4x.x6xxxx, SQM4x.x7xxxx, SQM4x.x8xxxx AGA45.6
Potentiometers (on request)
For retrofitting
- For SQM40... / SQM41...: Double potentiometer 2*1000
, 90° ASZ22.32
- For SQM40...: Double potentiometer 2*1000
, 135° ASZ22.35
- For SQM41...: Double potentiometer 2*1000
, 135° ASZ22.34
Refer to Data Sheet N7921.

Note!
ASZ22... potentiometers are only intended for the retrofitting onto SQM40... /
SQM41... types with the end number 0 (SQM4x.xxxx0).
For all SQM40... / SQM41... types with the end number 1 (SQM4x.xxxx1) or 3
(SQM4x.xxxx3), the potentiometers are already factory installed.
A
ccessories must be ordered as separate items:
