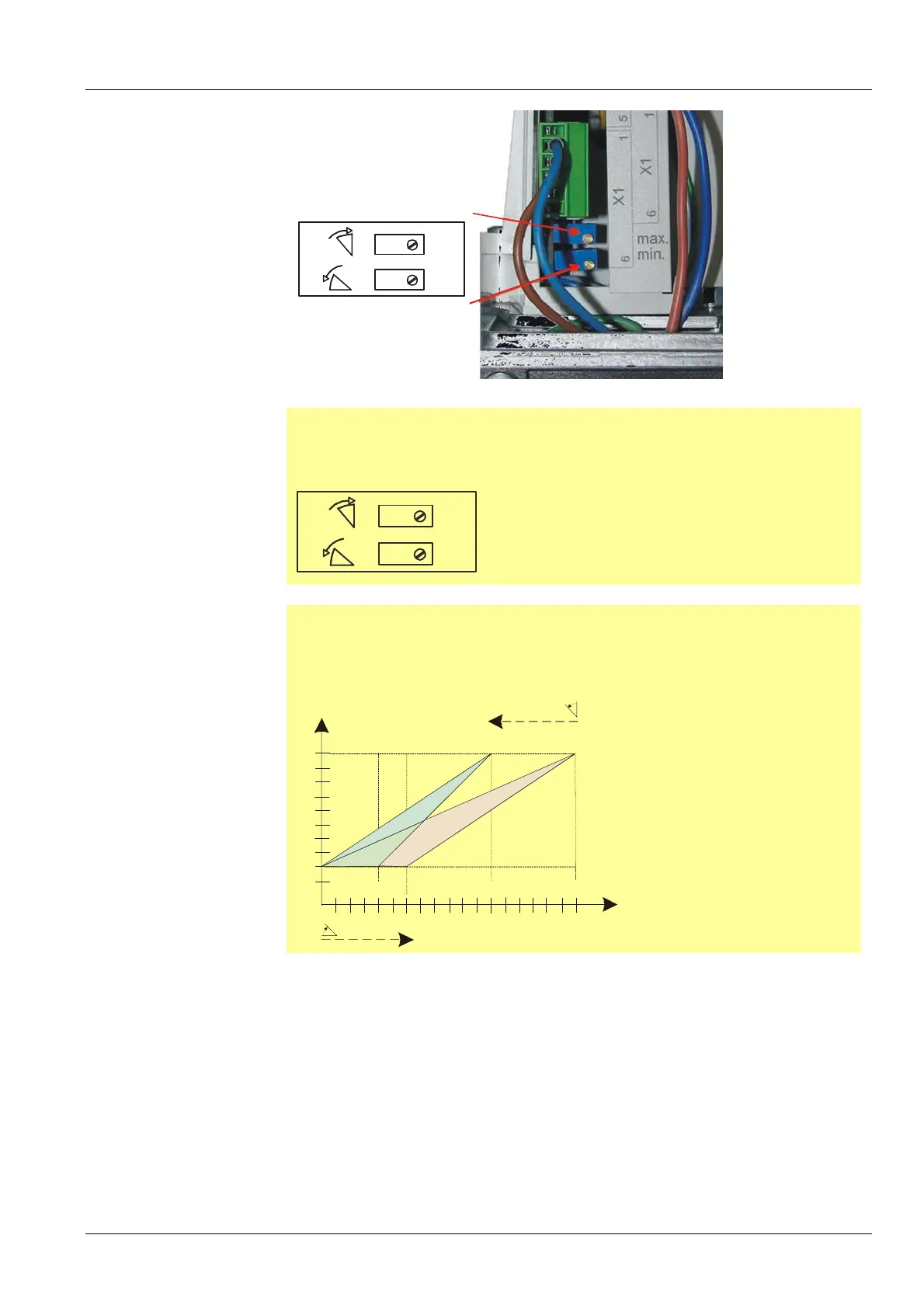

Connection diagrams and connection terminals (cont’d)
Max. potentiometer (high-fire)
7817z08e/0315
Max.
Min.
90° / 135°
0°
Min. potentiometer (low-fire)
Note!
When starting up, the direction of rotation of the potentiometer setting must be
observed:
7817z10/0713
Max.
Min.
90° / 135°
0°
Note
The working range of the potentiometer setting, shown as an example for the current
input 4...20 mA.
Setpoint (I/mA)
20
18
16
14
12
10
8
6
4
2
0
min.
0°
max.
90° / 135°
(V) (I)
10 20 30 40 50 60 70 80 90
Positioning angle (°)
7817d04e/0315
30 60 90 120 135
