Type WL Low Voltage Metal-Enclosed Switchgear
Installation
Optional Hoist
24.9
(632)
hoist
Extension
102.2
(2596)
top of
Hoist
Lifting Holes (3)
Vent stack
Front
Compartment
E
Bus
Compartment
17.8
(452)
Cable
Compartment
F
42.0 (1067)
Minimum
Aisle Space
Recommended
Floor Line
2.37
(60)
92.0
(2337)
4.0 (102)
A
G

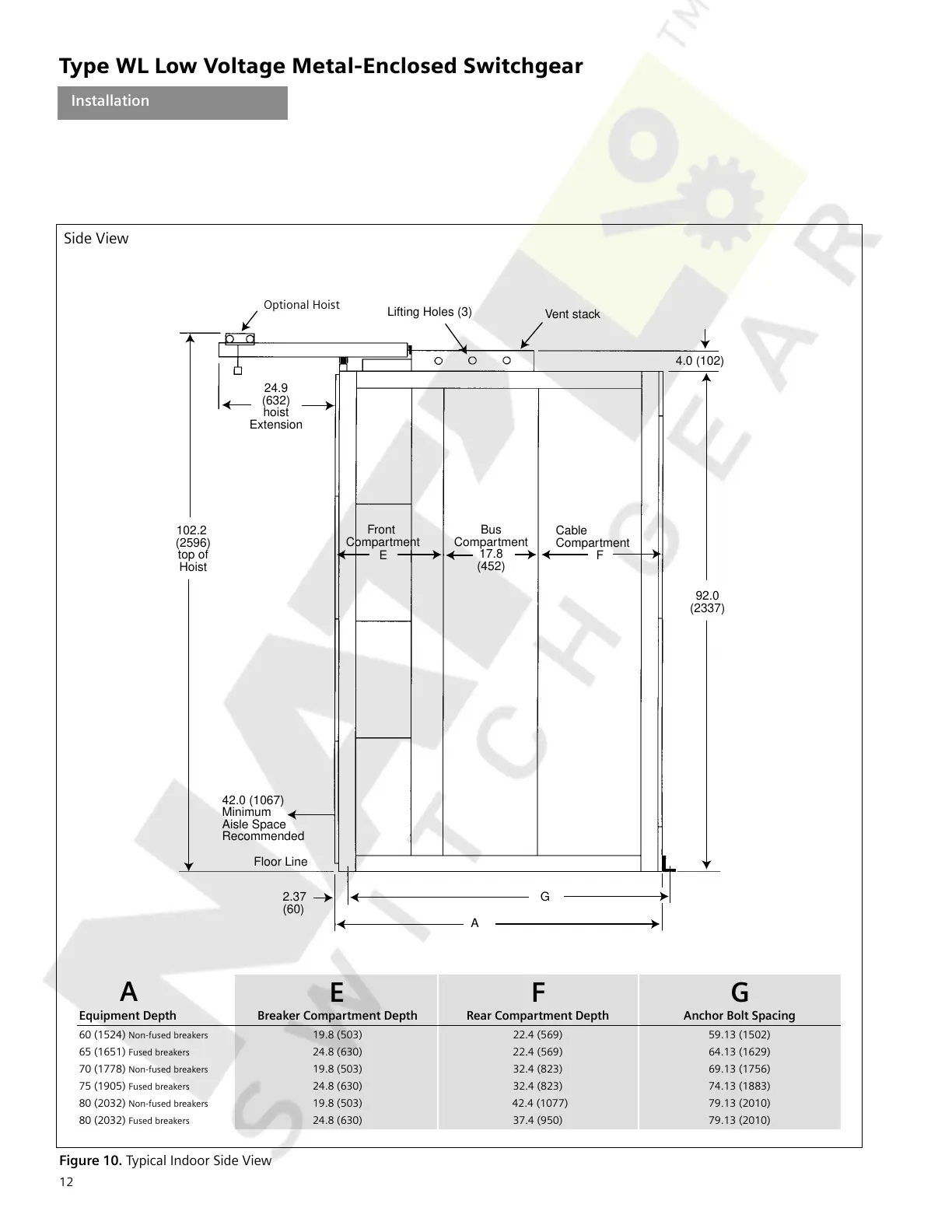

Figure 10. Typical Indoor Side View
Side View
Equipment Depth Breaker Compartment Depth Rear Compartment Depth Anchor Bolt Spacing
60 (1524) Non-fused breakers 19.8 (503) 22.4 (569) 59.13 (1502)
65 (1651)
Fused breakers 24.8 (630) 22.4 (569) 64.13 (1629)
70 (1778)
Non-fused breakers 19.8 (503) 32.4 (823) 69.13 (1756)
75 (1905)
Fused breakers 24.8 (630) 32.4 (823) 74.13 (1883)
80 (2032)
Non-fused breakers 19.8 (503) 42.4 (1077) 79.13 (2010)
80 (2032)
Fused breakers 24.8 (630) 37.4 (950) 79.13 (2010)
A
EFG
12
