Type WL Low Voltage Metal-Enclosed Switchgear
Installation

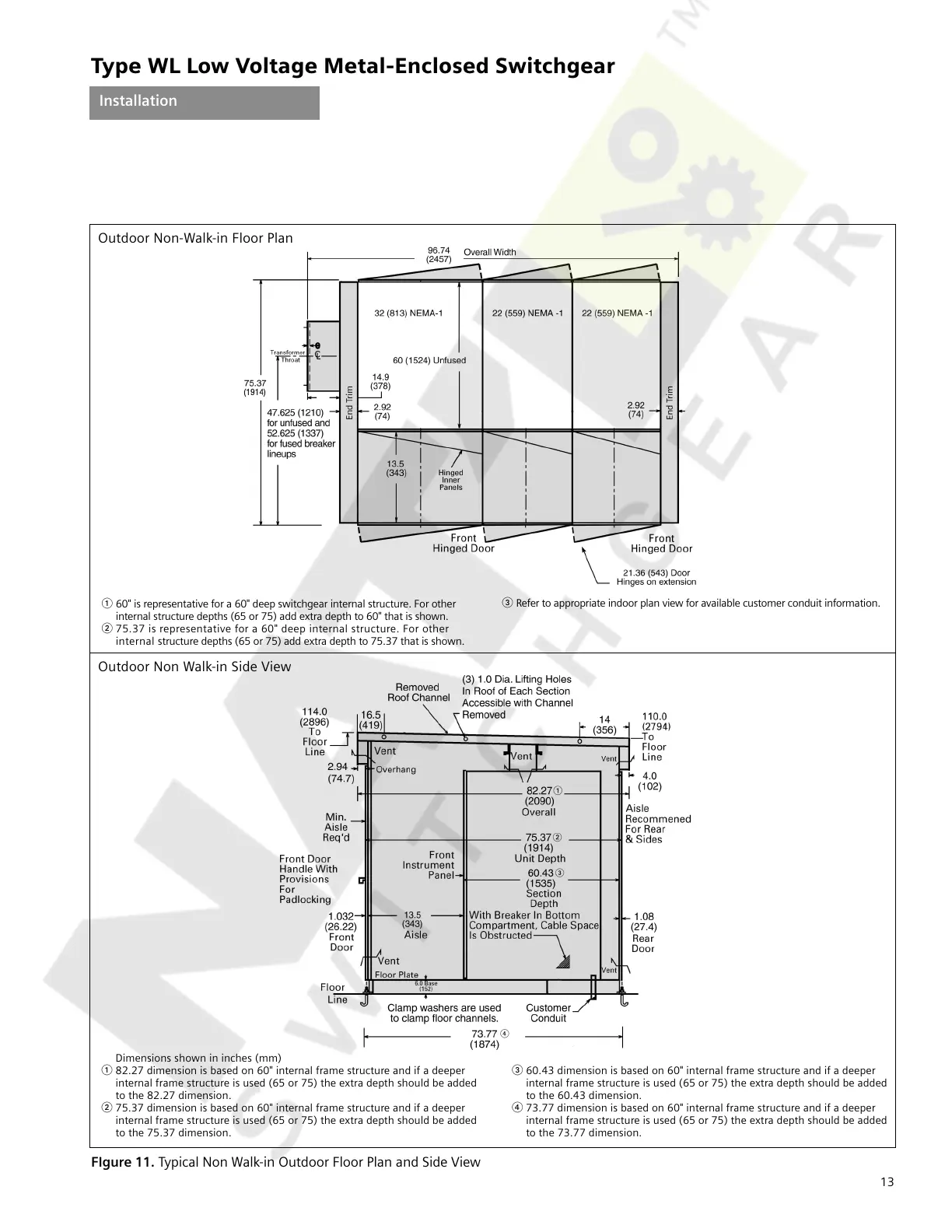

FIgure 11. Typical Non Walk-in Outdoor Floor Plan and Side View
13
Dimensions shown in inches (mm)
82.27 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 82.27 dimension.
75.37 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 75.37 dimension.
60.43 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 60.43 dimension.
73.77 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 73.77 dimension.
Outdoor Non Walk-in Side View
60" is representative for a 60" deep switchgear internal structure. For other
internal structure depths (65 or 75) add extra depth to 60" that is shown.
75.37 is representative for a 60" deep internal structure. For other
internal structure depths (65 or 75) add extra depth to 75.37 that is shown.
Refer to appropriate indoor plan view for available customer conduit information.
Outdoor Non-Walk-in Floor Plan
