Type WL Low Voltage Metal-Enclosed Switchgear
Installation
14
Dimensions shown in inches (mm)
110.7 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 110.7 dimension.
103.8 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be added
to the 103.8 dimension.
60.43 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be
added to the 60.43 dimension.
102.2 dimension is based on 60" internal frame structure and if a deeper
internal frame structure is used (65 or 75) the extra depth should be
added to the 102.2 dimension
.
Outdoor Walk-in Side View
60" is representative for a 60" deep switchgear internal structure. For other
internal structure depths (65 or 75) add extra depth to 60" that is shown.
103.8" is representative for a 60" deep internal structure. For other internal
structure depths (65 or 75) add extra depth to 103.8" that is shown.
Refer to appropriate indoor plan view for available customer conduit
information.
Outdoor Walk-in Floor Plan

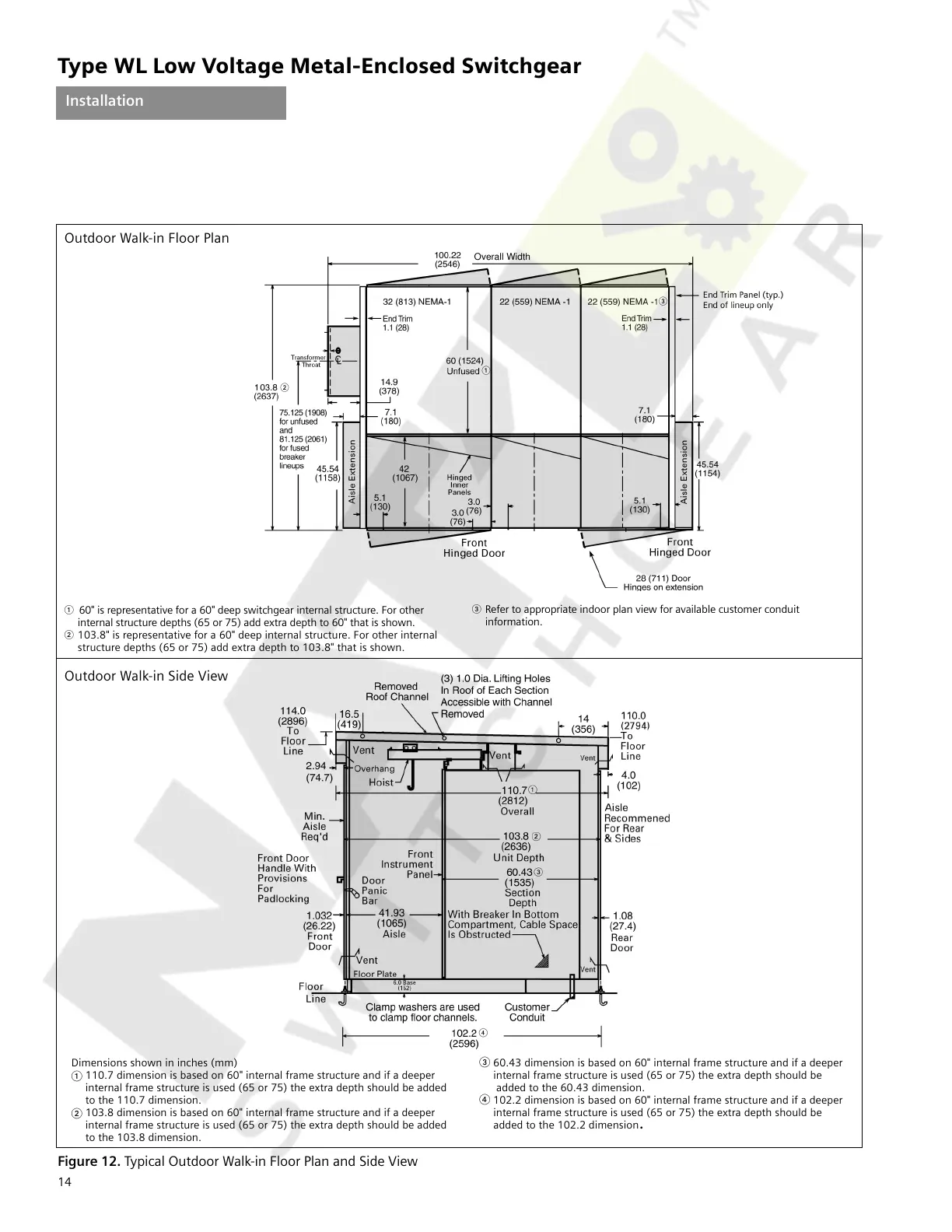

Figure 12. Typical Outdoor Walk-in Floor Plan and Side View
Overall Width
