8. Open the Mininert valve on the acid container by pressing on the
green button to slide the Teflon bar fully inward. Reference the label
on the container to verify direction.
9. Hold the acid container with the lid facing inward toward the oxidizer
container (see Figure 8-2). Install the acid container on the left-hand
side of the enclosure by holding the container at an angle with the
Mininert valve pointing down, sliding the valve underneath the cross
into the slot at the rear of the enclosure, then lowering the container
into the enclosure.
Cross
Reagent
Enclosure
1-Hold at angle
and slide into
enclosure
2-Push down
into enclosure
SIDE VIEW
TOP VIEW
A
C
I
D
O
X
I
D

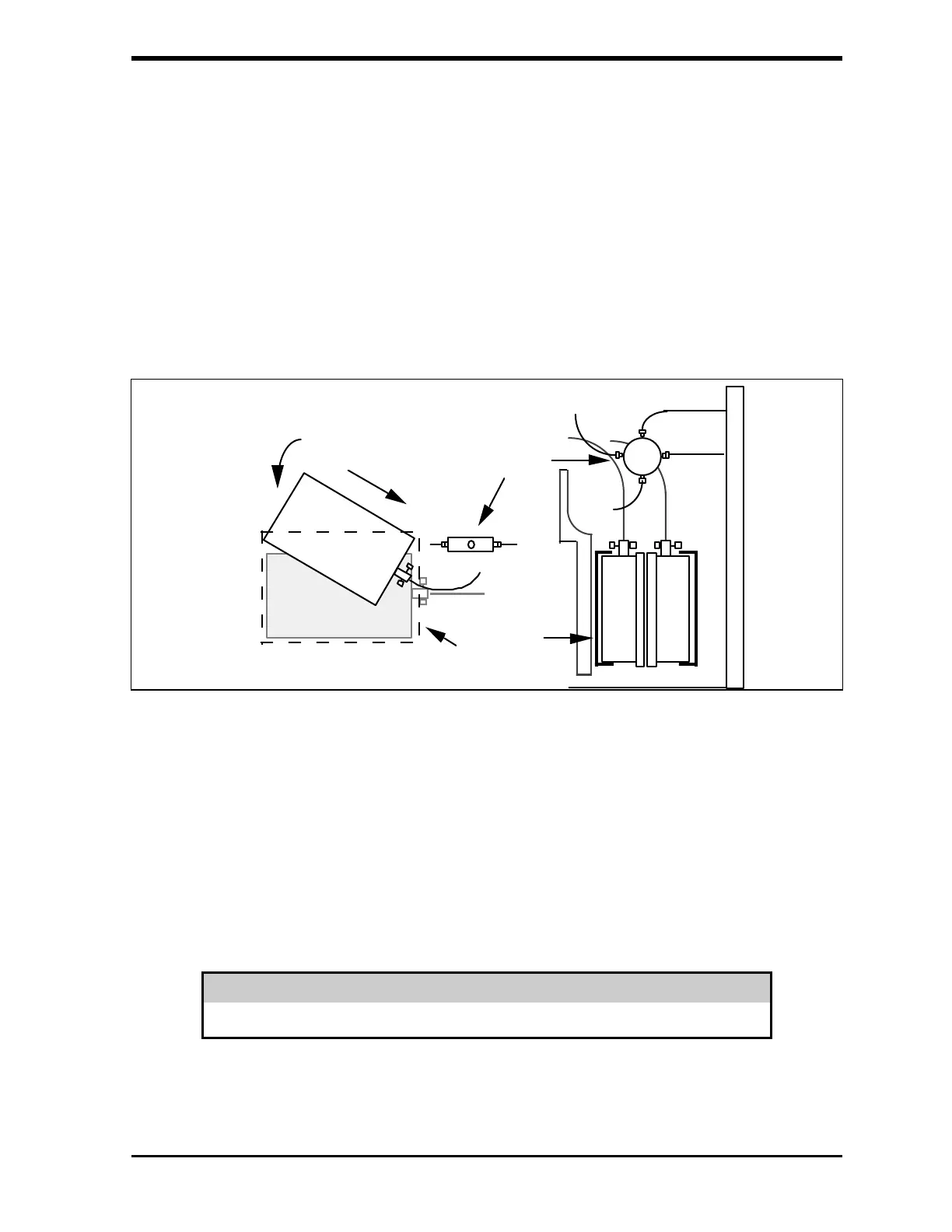

FIGURE 8-2: Installing Reagent Containers
10. Locate the OXIDIZER supply (container on the right-hand side) and
remove the container from the enclosure by lifting up on the front of
the reagent container (end opposite the Mininert valve), pulling the
container out of the enclosure, while sliding the Mininert valve out
from under the tubing and stainless steel cross.
11. Close the Mininert valve on the OXIDIZER container by pressing on
the red button to slide the stainless steel bar fully inward.
WARNING
Oxidizer may spill from the container if the valve is not closed.
