SDG2000X_ServiceManual_SM
0202X-E01B.doc
58

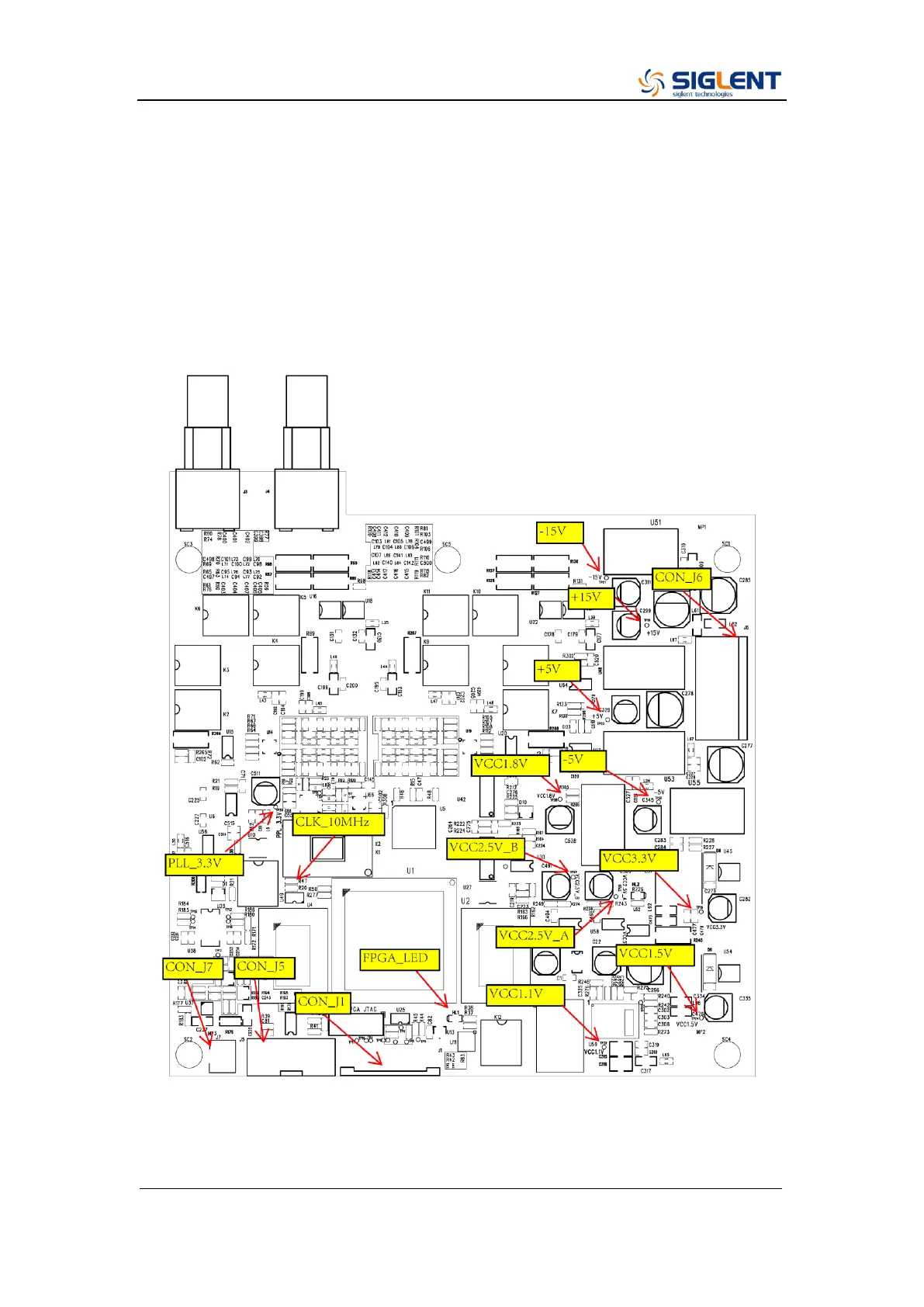

Channel Board Drawing
The channel board is a kind of signal conditioning board for generating analog
signal. It mainly deals with the adjusting of signal parameters such as
frequency, amplitude, and so on. Please refer to the following drawing to
quickly locate the test points on the channel board for easy resolution of any
problems encountered.
