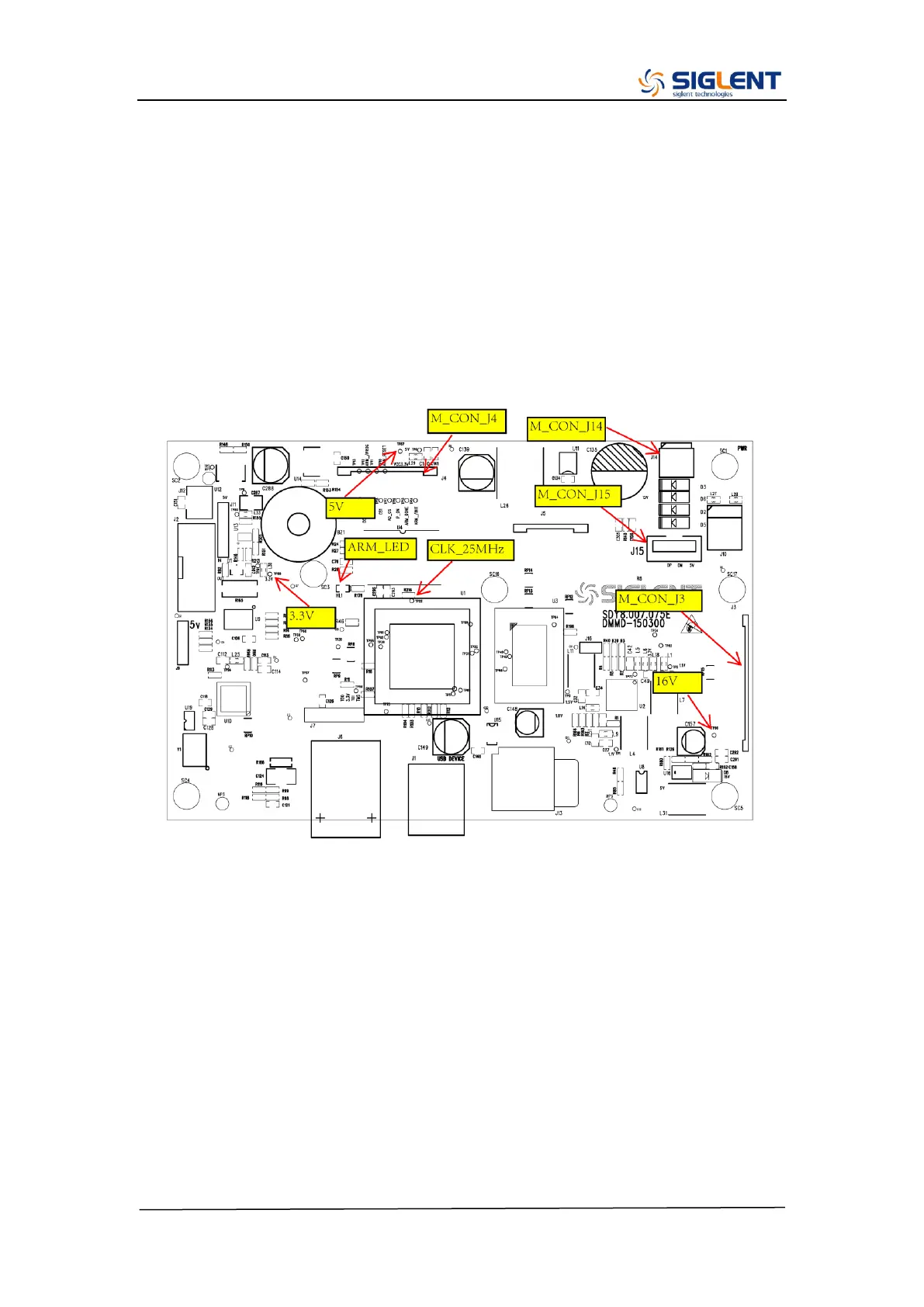

Main Board Drawing
The main board is the control center of the generator that contains an ARM
CPU system. It completes the GUI function, controlling and configuration
function of the channel board as well as the user interface. Please refer to the
following drawing to quickly locate the test points on the main board for easy
resolution of any problems encountered.
