6. Target Board
The
C8051F31x
Development Kit includes a target board with a
C8051F310
device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the target board. Refer to Figure 2 for the locations of the various I/O connectors.
P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1 34-pin Expansion I/O connector
J3 Port I/O Configuration Jumper Block
J4 DEBUG connector for Serial Adapter interface
J5 DB-9 connector for UART0 RS232 interface
J6 Analog I/O terminal block
J7 Low pass filter connector
J8 Serial Adapter target board power connector
J9, J10 External crystal enable connectors
J7
PWR
Pin 1
Pin 2
DEBUG
Pin 1
P1
J5
Prototype Area
Pin 1
J6
C8051
F31X
Pin 2
Pin 1
Prototyping Area I/O Connection Points
RESET P0.7
P3.3
J10
J9
J8
J1
J3
J4

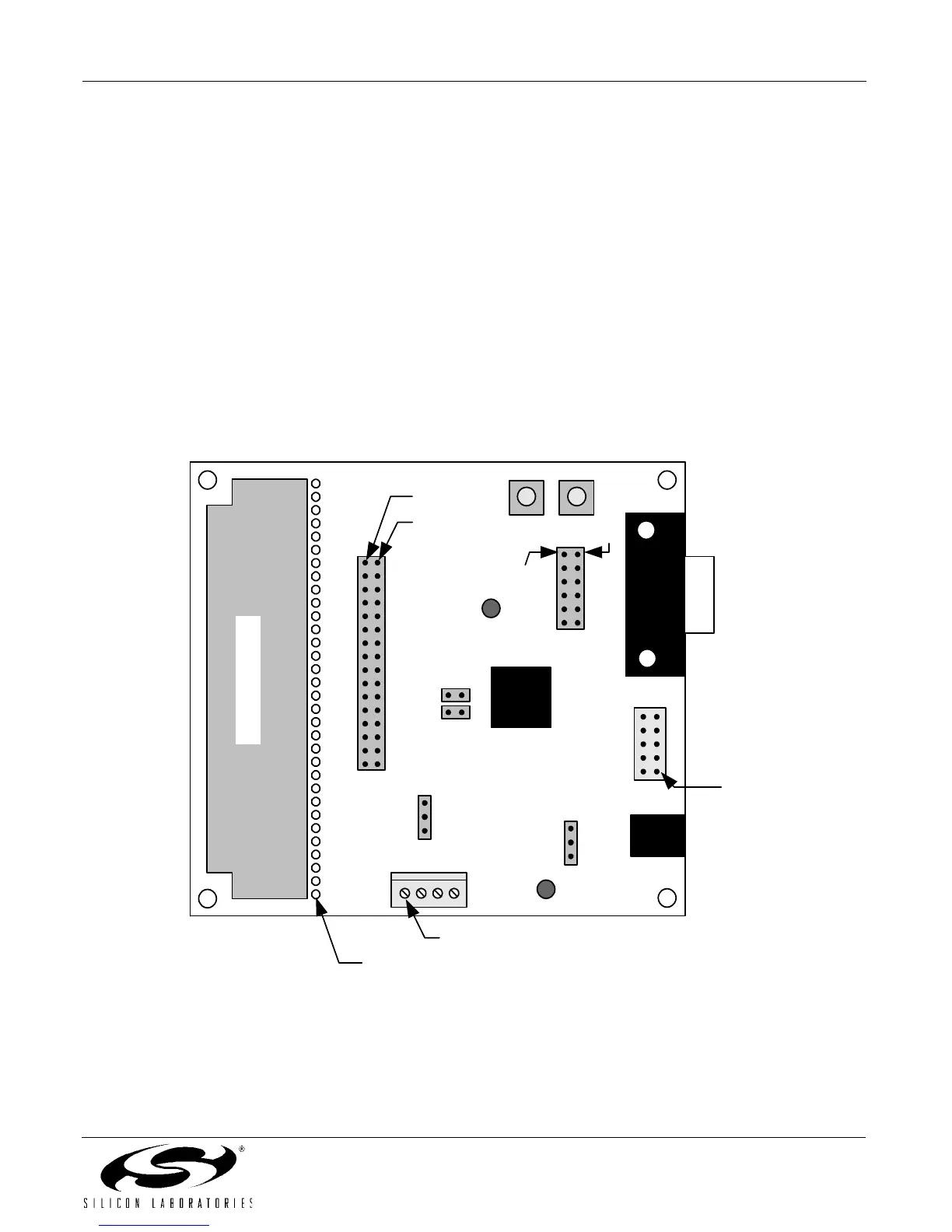

Figure 2. C8051F310 Target Board
