Silverline 546534 - Description of Symbols; Specification

GB
8
Voltage:............................................................230V~ 50Hz
Power: ..................................................................1450W
No load speed:.........................................................5000rpm
Max depth of cut:.........................................................62mm
Max blade size:.........................................................Ø210mm
Blade bore: .............................................................Ø30mm
Supplied blade: ...........................................Ø210 x 30 x 2.8mm 24T
Mitre table angles:....................................................-45 to +45°
Bevel cuts:................................................................ 0-45°
Straight cut:
0° mitre x 0° bevel...................................................170 x 60mm
Mitre cut:
45° (L&R) x 0° . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 x 60mm
Bevel cut:
0° mitre x bevel (L) 45° ...............................................170 x 34mm
45° mitre (L&R) x bevel (L) 45°.........................................120 x 34mm
Laser Class: ...................................................................II
Laser Wavelength: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650nm
Laser Output power: .....................................................≤1mW
Power cord length:...........................................................2m
Protection class: .............................................................
Ingress protection:..........................................................IP20
Dimensions (L x W x H):........................................ 380 x 340 x 420mm
Weight: .................................................................7.23kg
Aspartofourongoingproductdevelopment,specicationsof
Silverline products may alter without notice.
Sound and vibration information:
Sound pressure L
PA
....................................................96.54dB(A)
Sound power L
WA
.....................................................109.54dB(A)
Uncertainty K ...............................................................3dB
The sound intensity level for the operator may exceed 85dB(A)
and sound protection measures are necessary.
Technical Abbreviations Key
Specication
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit
the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop
usingthetoolimmediatelyandchecktheearprotectioniscorrectlyttedandprovidesthecorrect
level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness,
tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary,
limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool
with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the
guresprovidedinthespecicationrelatingtovibrationtocalculatethedurationandfrequency
of operating the tool.

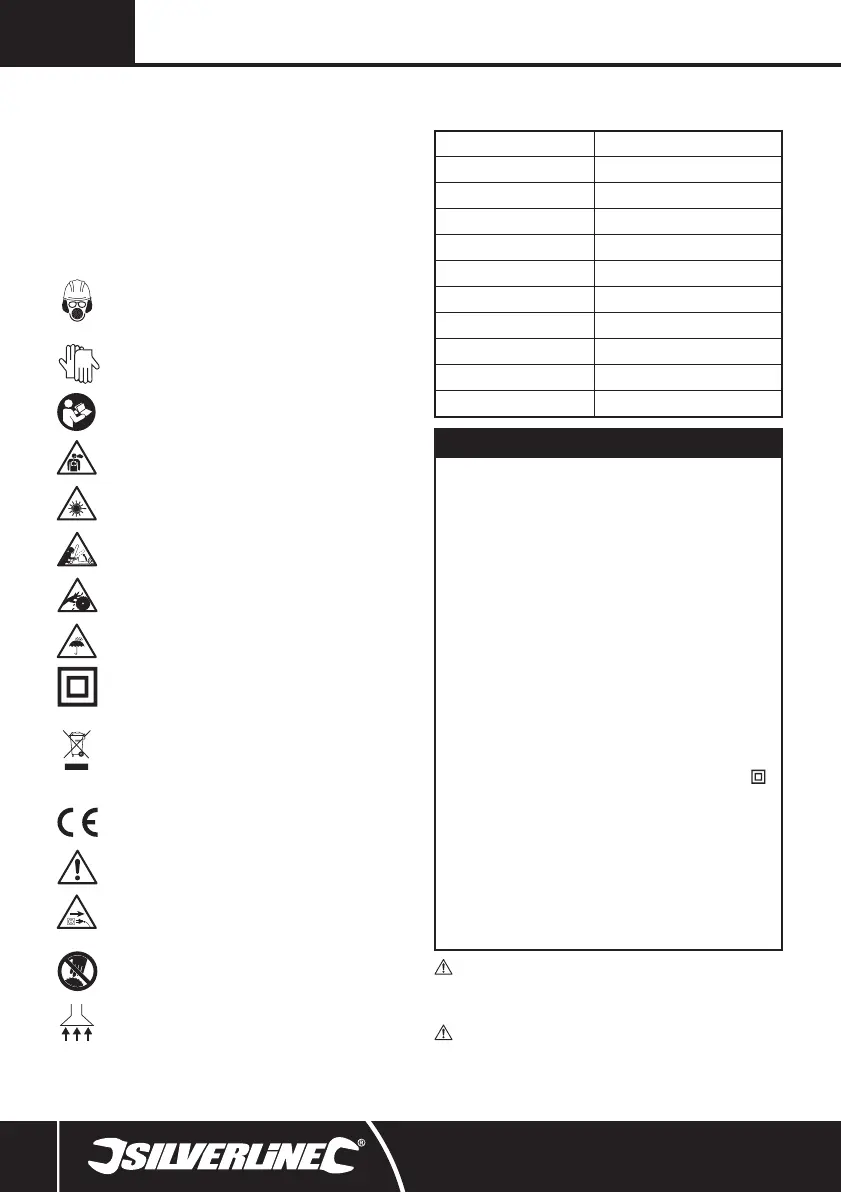

Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the
product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection.
Read instruction manual.
Toxic fumes or gases!
LASER warning!
Be aware of kickback!
Warning: Sharp blades or teeth!
DO NOT use in rain or damp environments!
Class II construction (double insulated for additional protection)
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for recycling
advice.
Conforms to relevant legislation and safety standards.
Caution!
Always disconnect from the power supply when adjusting, changing accessories,
cleaning, carrying out maintenance and when not in use!
Do not touch the blades before the machine is disconnected from the supply and the
blades have come to complete stop.
Dustextractionrequiredorrecommended
V Volts
~, AC Alternating current
A, mA Ampere, milli-Amp
n0 No load speed
° Degrees
Ø Diameter
Hz Hertz
W, kW Watt, kilowatt
/min or min
-1
Operations per minute
rpm Revolutions per minute
dB(A) Decibel sound level (A weighted)
Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary
forsafeandeffectiveoperationofthisproduct.Thisproducthasuniquefeaturesand,evenif
you are familiar with similar products, it is necessary to read this manual carefully to ensure
you fully understand the instructions. Ensure all users of the tool read and fully understand
this manual.
Original Instructions
