Exhaust Ports
There are two Engine Exhaust Ports; one
for each engine. The Port Engine Exhaust
Port is located on the Port side of the hull
forward of the transom and the Starboard
Engine Exhaust Port is located on the Star-
board side of the hull forward of the tran-

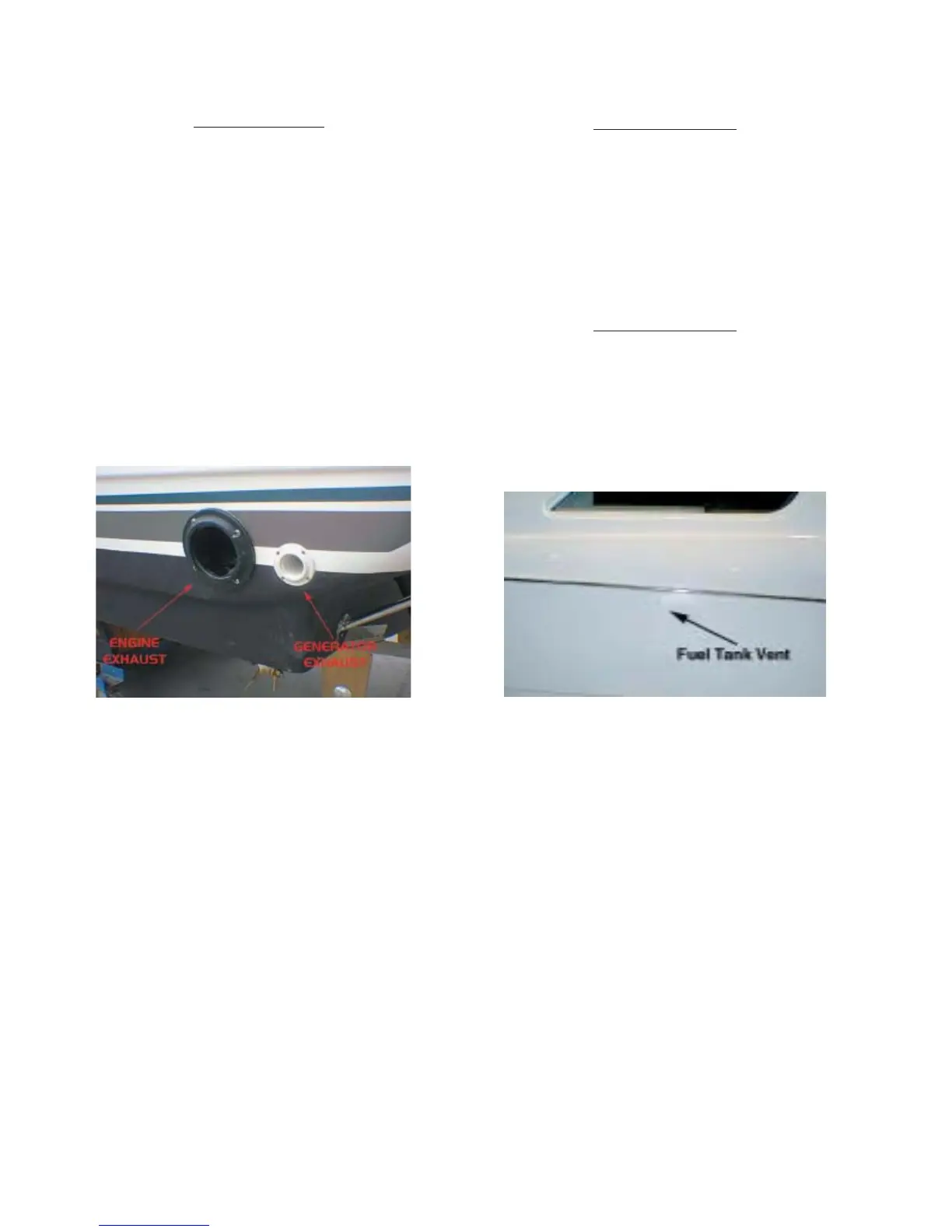

som. The photograph below displays the
Port Engine Exhaust Port. The Starboard
Engine Exhaust Port is in the identical loca-
tion on the Starboard side of the yacht. It
also displays the Generator Exhaust Port,
located directly aft of the port side Engine
Exhaust Port.
Discharge Ports
The various Discharge Ports (also known
as through-hull ports) are located on the
Starboard side of the hull. Refer to the Thru-
Hull Schematic drawings on Page 151 and
152, which illustrates the location of these
ports.
Fuel Tank Vents
The photograph below displays the Port
Fuel Tank Vent as shown on the Port side
of the hull. The Starboard Fuel Tank Vent
is located in the identical location on the
Starboard side of the hull.
Note: Please refer to the Thru-Hull location
Schematics on Page 151 and 152 for the
location of the Fuel Tank Vents in propor-
tion to the entire hull.
