Smart Machine Smart Decision
SIM800_Hardware Design_V1.09 39 2016-06-30

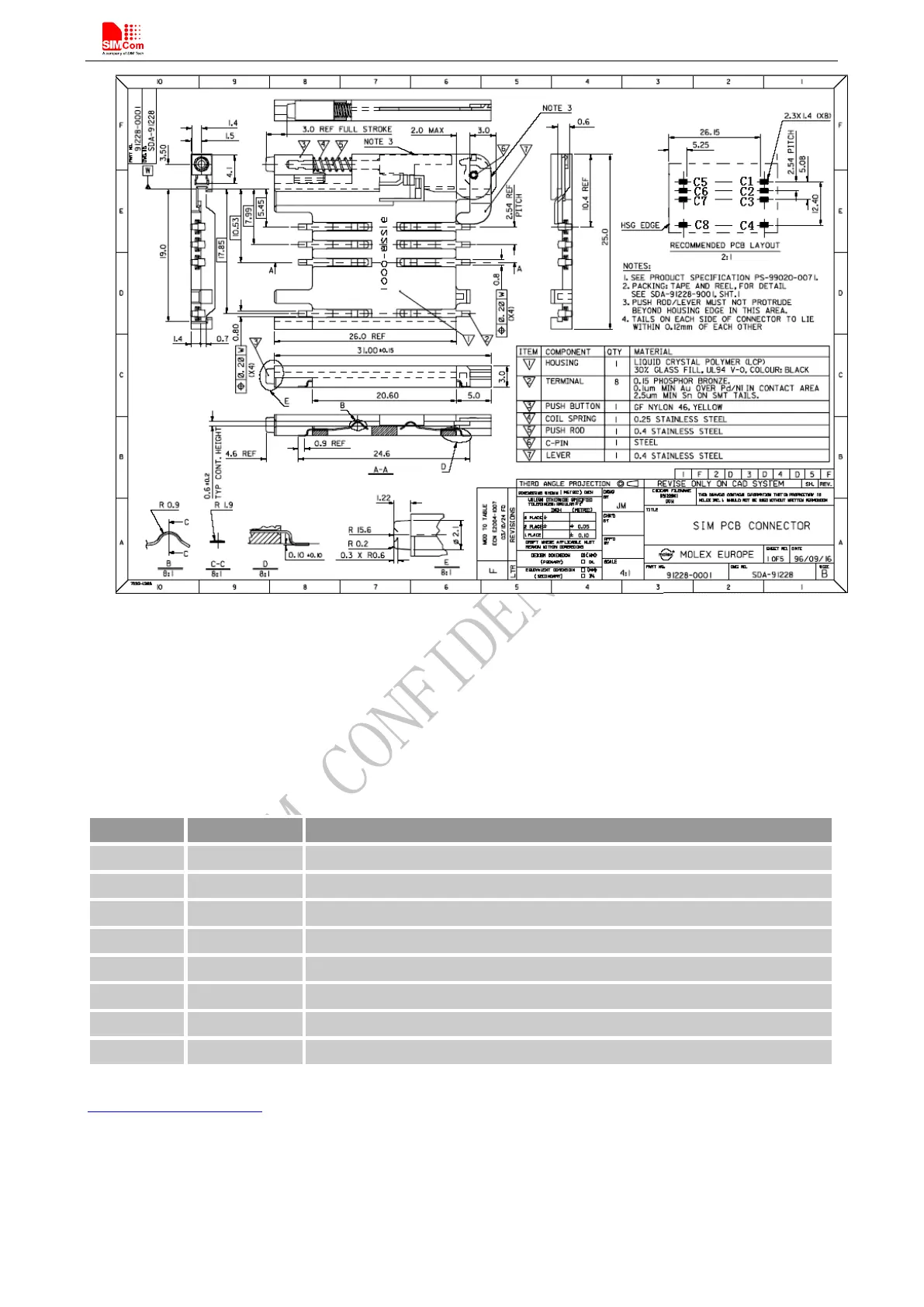

Figure 34: Molex 91228 SIM card holder
Table 16: Pin description (Molex SIM card holder)
Pin name
Signal
Description
C1
SIM_VDD
SIM card power supply
C2
SIM_RST
SIM card reset
C3
SIM_CLK
SIM card clock
C4
GND
Connect to GND
C5
GND
Connect to GND
C6
VPP
Not connect
C7
SIM_DATA
SIM card data I/O
C8
SIM_DET
Detect SIM card presence
For 6-pin SIM card holder, SIMCom recommends to use Amphenol C707 10M006 512 .User can visit
http://www.amphenol.com for more information about the holder.
