Smart Machine Smart Decision
SIM800_Hardware Design_V1.09
40
2016-06-30

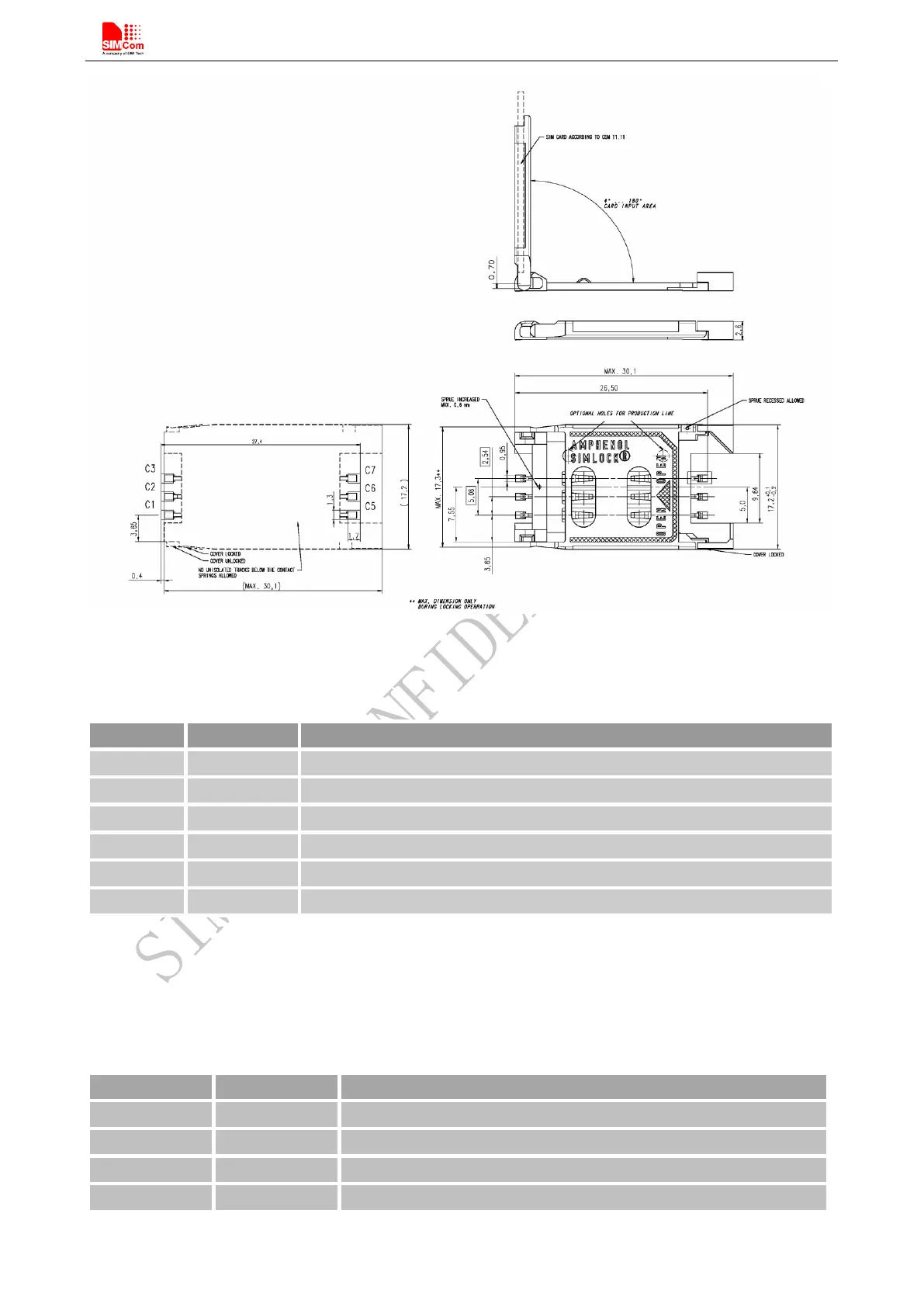

Figure
35
:
Amphenol C707 10M006 512 SIM card holder
Table
17
: Pin description (Amphenol SIM card holder)
Pin name
Signal
Description
C1
SIM
_VDD
SIM card power supply
C2
SIM_RST
SIM card reset
C3
SIM_CLK
SIM card clock
C5
GND
Connect to GND
C6
VPP
Not connect
C7
SIM_DA
T
A
SIM card data I/O
4.10.
PCM Interface
SIM800 provides PCM interface.
Table
18
: PCM pin definition
Pin name
Pin number
Description
PCM_
OUT
6
PCM data output
PCM_
IN
12
PCM data input
PCM_
SYNC
14
PCM synchrony
PCM_CLK
68
PCM clock
39
41
