60/70°C Set up of the Safety Condensing
Temperature Sensor
JUMP IN - 70°C
JUMP OUT - 60°C
H. INTERFACE P.C. BOARD
(Only on SPN 1205 Model)
Used only on SPN 1205 model, it allows to elaborate
the signal received from both the electromagnetic
sensors as well as from both the optical ice level
controls transmitting it to the P.C. Board for the
control of the unit operation.
The Interface P.C. Board is equipped by four
INLET sockets (two for the electromagnetic
sensors and two for the optical ice level controls)
and two OUTLET plugs to be connected to the
sockets of the main P.C. Board.
I. FLOAT RESERVOIR
The float reservoir consist of a plastic water pan
on which is fitted a float valve with its setting
screw. The float valve modulate the incoming
water flow to maintain a constant water level in
the reservoir, level that corresponds to the one in
the freezing cylinder to ensure proper ice
formation and fluidity.
On the inner side of the reservoir cover are
fitted the two water level sensor pins which
detects the presence or the shortage of water
in the reservoir.

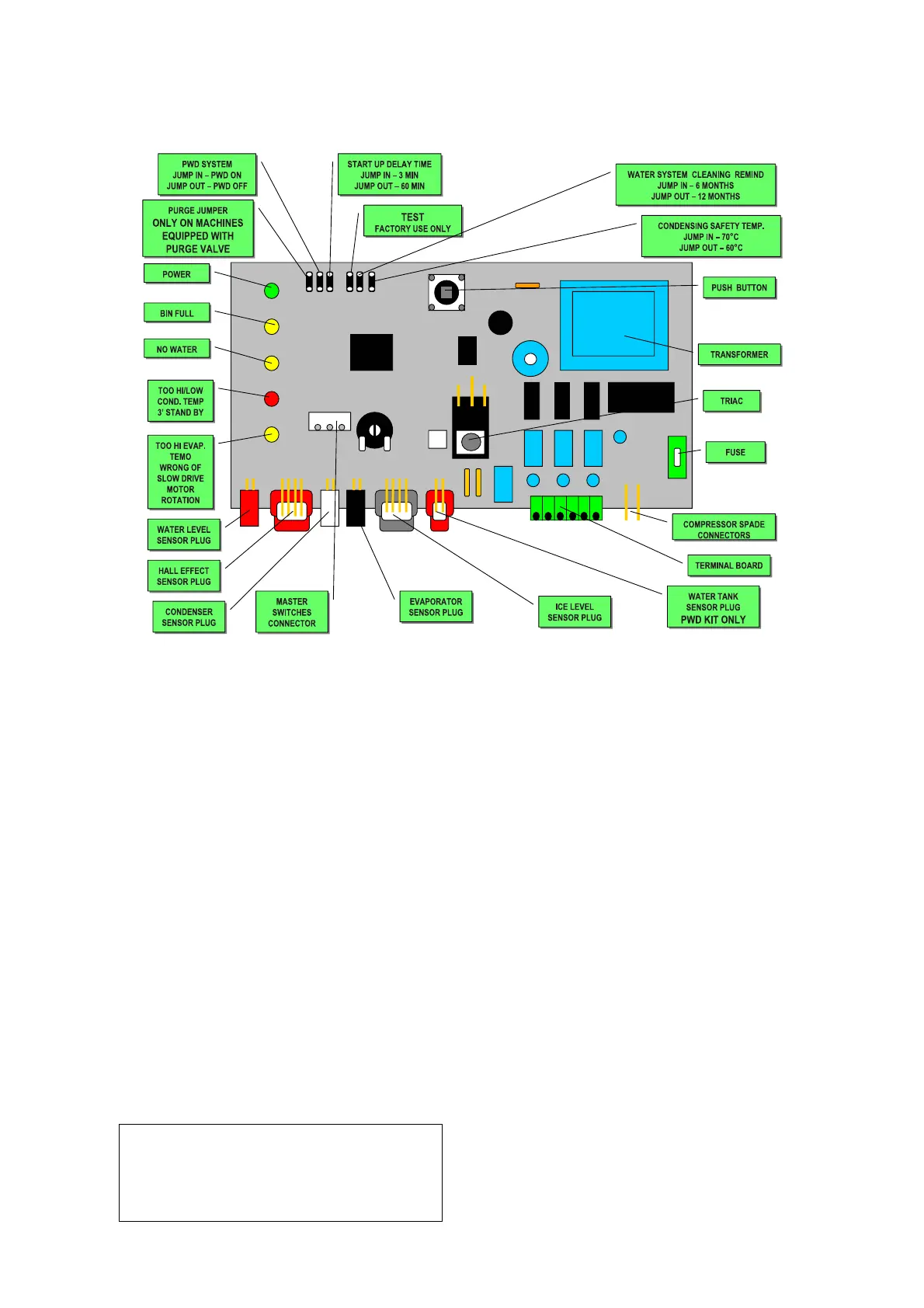

G. JUMPERS
The Flaker PC Board is equipped by six jumpers:
PURGE Used on machine equipped with Water
Purge Valve to purge out the water
from the water system every 12 hours
and when the machine restart from the
Bin Full
JUMP IN - Purge OFF
JUMP OUT - Purge ON
PWD Used to Pump Out the water by means
of the Progressive Water Pump
supplied as a kit
JUMP IN - No Progressive Water Pump
installed/in operation - SPN Models
JUMP OUT - Progressive Water Pump
installed/in operation
3’/60’ Delay time at start up
JUMP IN - 3 minutes delay
JUMP OUT - 60 minutes delay - SPN 1205
TEST Factory use ONLY
6/12 M
Cleaning remind for the water system -
Red Light blinks/flashes with machine
ON
JUMP IN - 6 months set up
JUMP OUT - 12 months set up
NOTE. To restart the cleaning remind
countdown push and hold the PC Board
button for more of 5 seconds with machine in
operation till the switching OFF of the two
YELLOW Leds.
Page 28
TO BY-PASS THE 3'/60' STAND BY TIME, SYMPLY JUMP "TEST" CONTACTS WITH PCB ENERGIZED
