SimCom SIM7020 Series - Power Consumption HW Test Set Up; Test Setup Procedure

Simplify Communication
SIM7020 Series_SUB KIT_User Guide Page 11 / 13

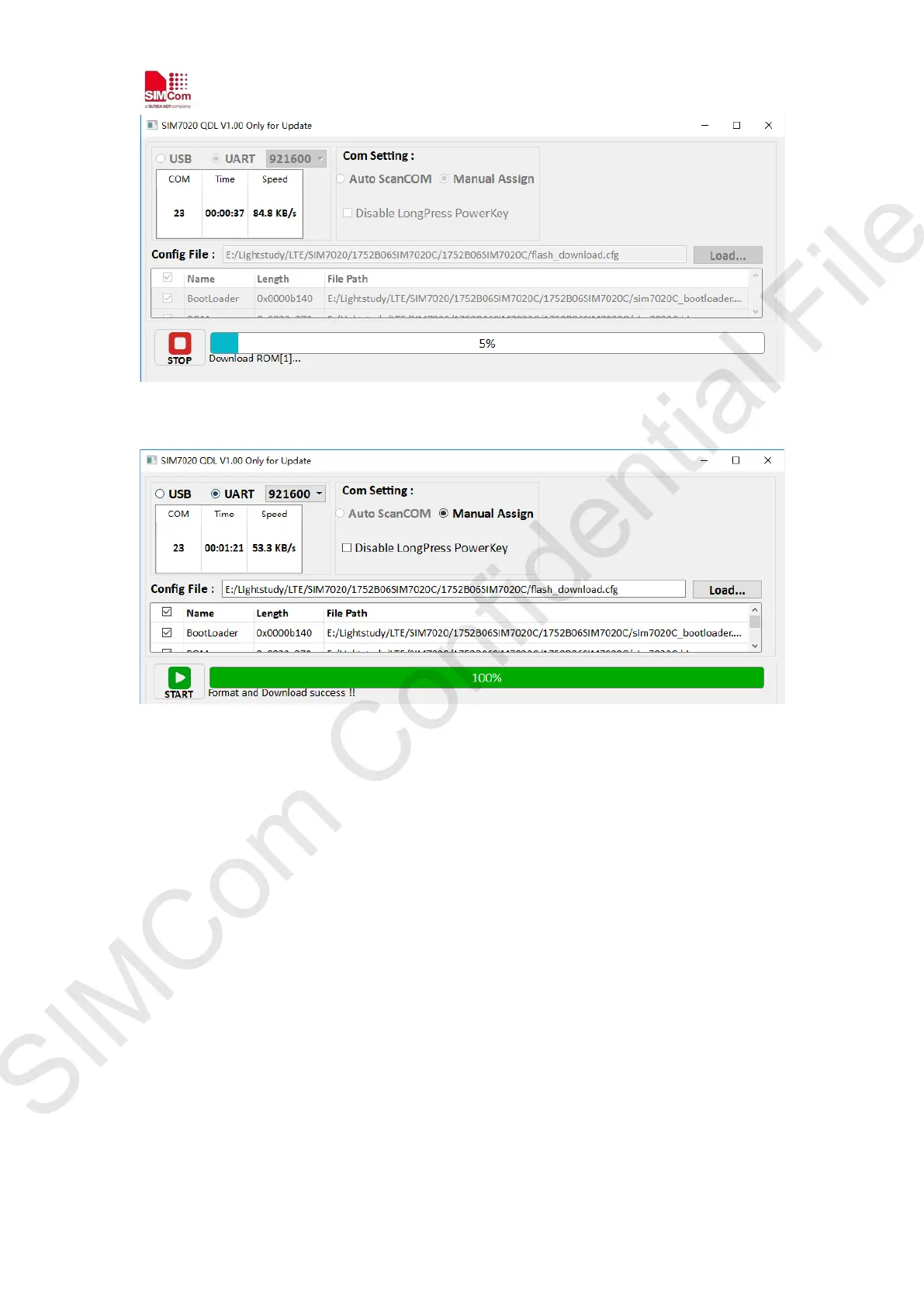

FW update ongoing
FW update finished
5 Power Consumption HW Test Set Up
1) Delete R206 on SIM7020 SUB board
2) Connect external power supply to VBAT & GND pads/Location K (for SIM7020 module only)
