1 - DESCRIPTION OF DISPLAY ICONS
SUMMER MODE ICON
WINTER MODE ICON
D.H.W. MODE ICON
HEATING MODE ICON
FUNCTIONING BURNER ICON
BLOCK DUE TO NO
IGNITION/FLAME DETECTION
NECESSITY OF RESET
MAIN DIGITS
Fig. 13
2 - DESCRIPTION OF CONTROLS
OPERATING MODE/RESET
By pressing the key in succession, pass to the sum-
mer and winter function (stand-by function if perma-
ne on the key more than two second).
RESET is only available if a resettable anomaly is
signalled
D.H.W. SET
Press the key to display the D.H.W. temperature
value set
HEATING SET
Press the key to display the heating temperature
value set (value not realtive to the remote control)
DECREASE
Pressing this key decreases the value set
INCREASE
Pressing this key increases the value set
3 - LED GREEN
ON = Indicates the presence of electrical voltage.
It switches of momentarily every time the keys are pressed.
It can be disabled by setting PAR 3 = 0.
4 - LED RED
OFF = Regular functioning.
ON = Boiler anomaly signalled.
Flashing when the control panel buttons are pressed inside the
PARAMETERS SECTION.

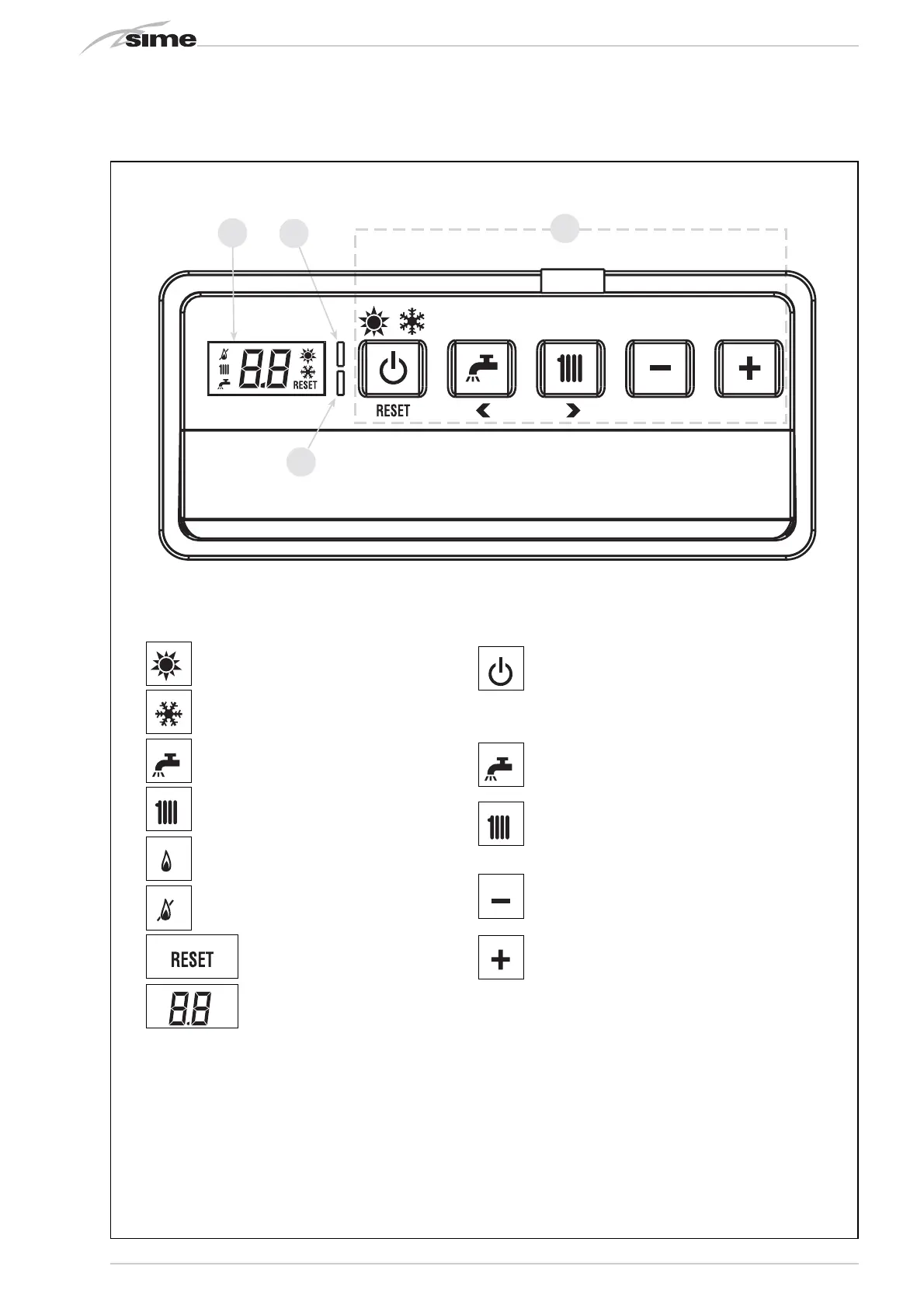

3.1 CONTROL PANEL (fig. 13)
