Simmons DA200S - Front Panel Operations; Detailed Front Panel Controls

DA200S
www.simmonsdrums.net

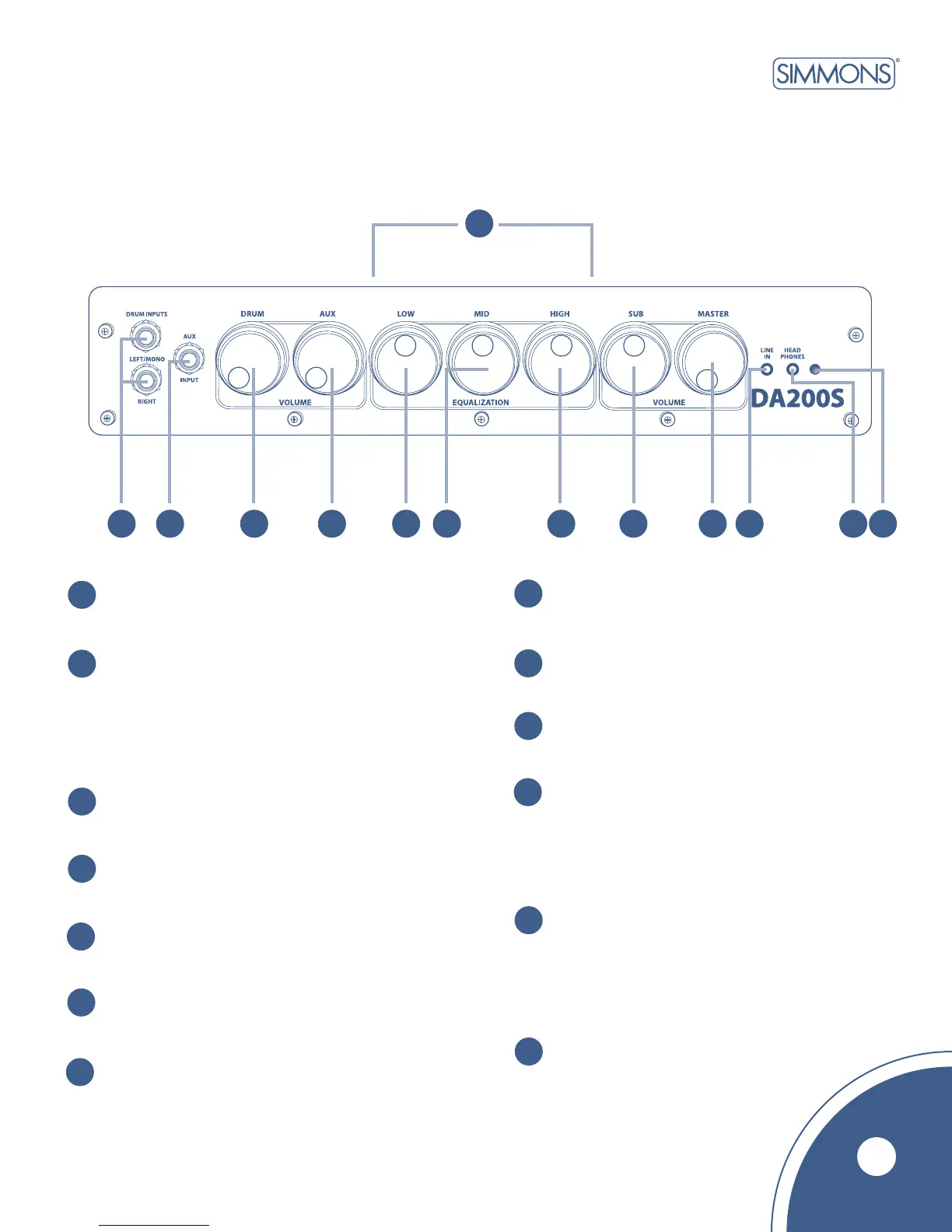

front panel
Drum Inputs: Theseare1/4”inputjacks(leftand
right).Whenusingamonosignal,plugintotheLeft/Mono
Jack.
1
3
Drum Volume: This controls the volume level of
the Drum Inputs to the power amplifier.
2
Aux Input: This1/4”stereojackisusedforconnecting
any pre-EQ source such as a click track, additional digital
instruments, devices, drum pad MPC machines, etc. The
volume of the Aux Input is controlled by the Aux
Volumecontrol.
4
Aux Volume: This controls the volume level of
the Aux Input.
5
Equalization Section: These control the overall
tone of the DA200S drum amplifier.
10
Master: This controls the overall volume
of the amplifier
9
Sub: This controls the volume of the low
frequency sub-woofer.
High: This controls frequencies centered
at10kHzwitha+/-12dBsweep.
8
7
Mid: This controls frequencies centered
at800Hzwitha+/-12dBsweep.
6
Low: This controls frequencies centered
at50Hzwitha+/-12dBsweep.
1
2
3
4
6
7
8
9
10
5
11
13
Power “On” Indicator
12
Headphone Jack: Thisisa1/8”stereooutput
jack. It combines all inputs from your drums, Aux
Input, and Line In. Use it to monitor your drums during
live performances. It will turn off internal speakers,
but will not affect signal outputs.
12
13
5
Line In: Thisisa1/8”stereolineinput.
It bypasses the EQ tone controls and feeds straight
into the power amplifier, perfect for CD or MP3
players. Use the volume and tone controls on
your external device to control the audio signal.
