Simmons SD1000 User Manual

SD OWNER’S MANUAL
8
The first name in electronic drums.

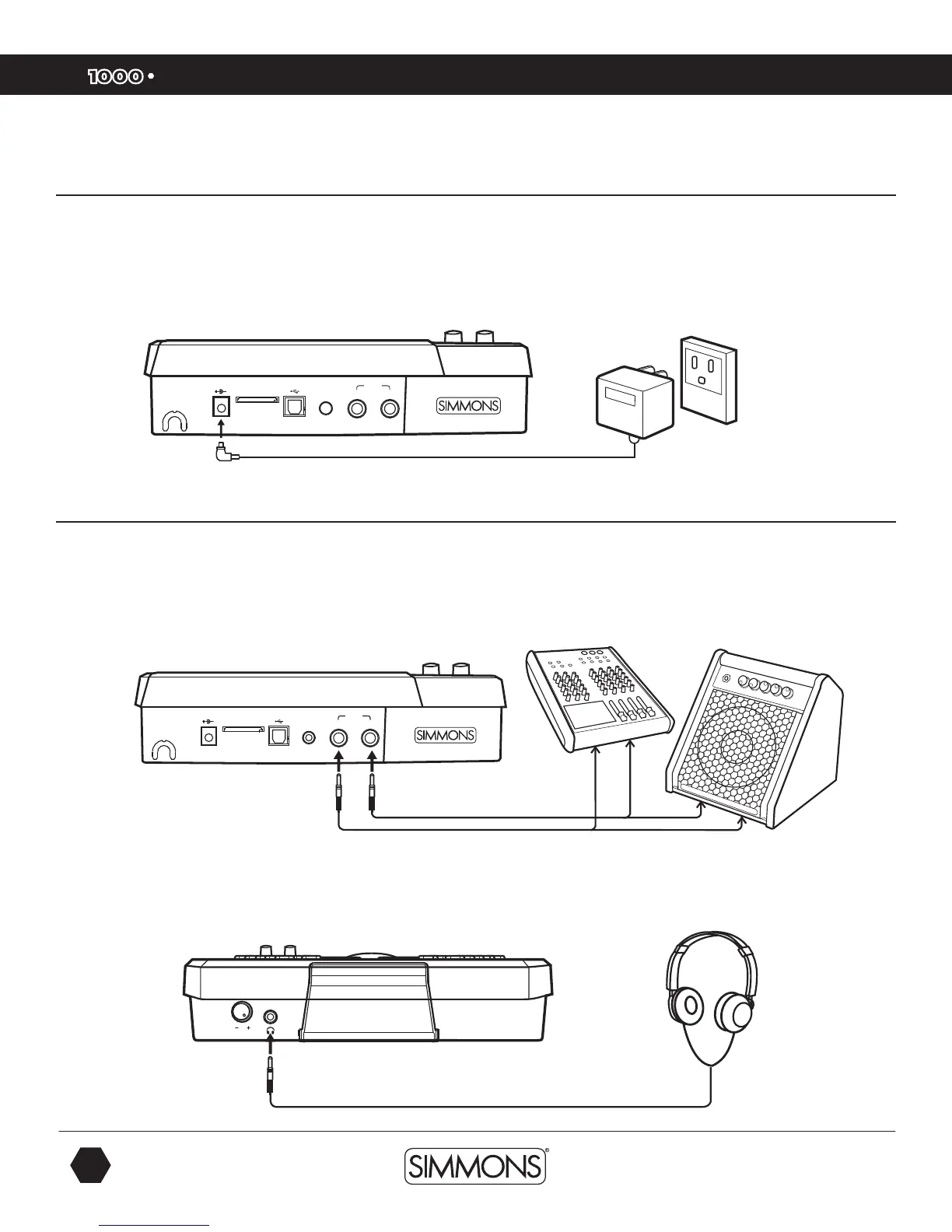

Connections
AC Adapter
The SD1000 sound module uses an external power supply called an AC Adapter. Make
sure the power is switched OFF on the module and connect the power adapter with the DC
IN jack on the rear panel.
NOTE: To protect the speakers, amplifier and the drum module from damage, lower the
volume to the minimum level before switching the power ON.
Connecting Audio Equipment
Mixers and Amplifiers
1. When you want to send the audio output to a mixer or amplifier. Connect using
the Output L/MONO and R jacks on the rear panel (for monaural playback, use the
L/MONO jack; for stereo playback, connect both L/MONO and R jacks.)
2. The volume from the module is adjusted with the MASTER knob.
Headphones
You can connect a standard pair of headphones the SD1000 sound module to listen to your
electronic drum set without disturbing others. Connect the headphones to the headphone jack
located on the front panel of the drum module. Adjust the volume to a comfortable level to
avoid damaging your hearing. The Headphone output is separate from the Master Volume
output control knob.
USB SD CARD9V-500mA AUX IN
L/MONO
R
OUTPUT
USB SD CARD9V-500mA AUX IN
L/MONO
R
OUTPUT
USB SD CARD9V-500mA AUX IN
L/MONO
R
OUTPUT
MP3
PLAYER
USB SD CARD9V-500mA AUX IN
L/MONO
R
OUTPUT
USB SD CARD9V-500mA AUX IN
L/MONO
R
OUTPUT
MP3
PLAYER
Make sure the power is switched
OFF when connecting the drum
module with external devices.
or or
9861 Simmons SD1000 Drum Set Manual.indd 8 1/22/13 8:59 AM

Simmons SD1000 Specifications

General

Brand	Simmons
Model	SD1000
Category	Drums
Language	English
