Connections

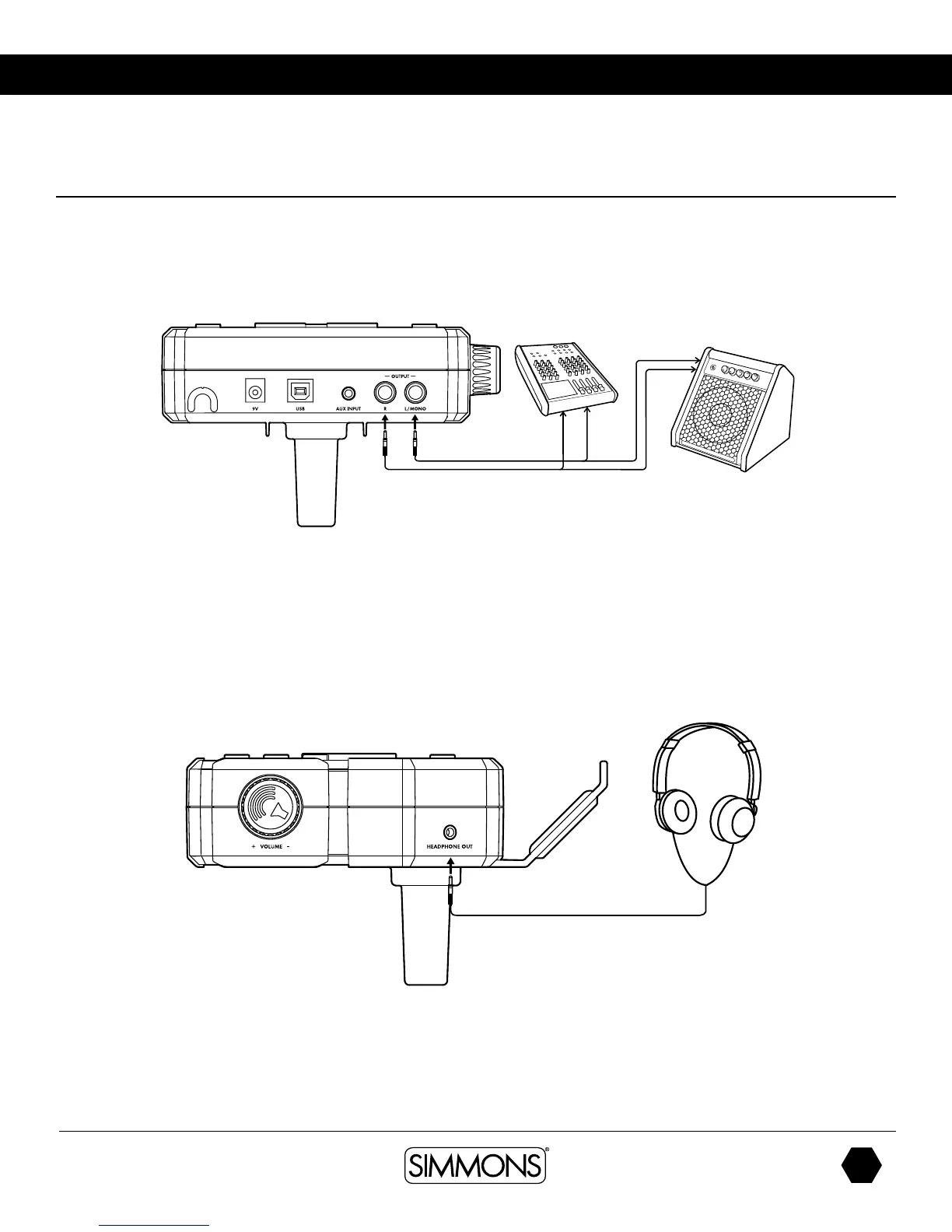

You can connect a standard pair of headphones the SD500 module to listen to your electronic
drum set without disturbing others. Connect the headphones to the headphone jack located on
the side panel of the drum module. Adjust the volume to a comfortable level to avoid damaging
your hearing. The Headphone output is separate from the Master Volume output control knob.
Connecting Audio Equipment
Mixers and Amplifiers
1. When you want to listen to the voices send the drum to a mixer or amplifier. Connect using the
Output L/MONO and R jacks on the rear panel (for monaural playback, use the L/MONO
jack; for stereo playback, connect both L/MONO and R jacks.)
2. The volume from the module is adjusted with the VOLUME knob.
