Simoco SRM9000 User Manual

DRAFT D
TNM-M-E-0001 Page 30
4.2.3 ALIGNMENT PROCEDURE
Radio alignment must be done in the sequence detailed in the following paragraphs. This
alignment assumes that the radio is functioning normally.

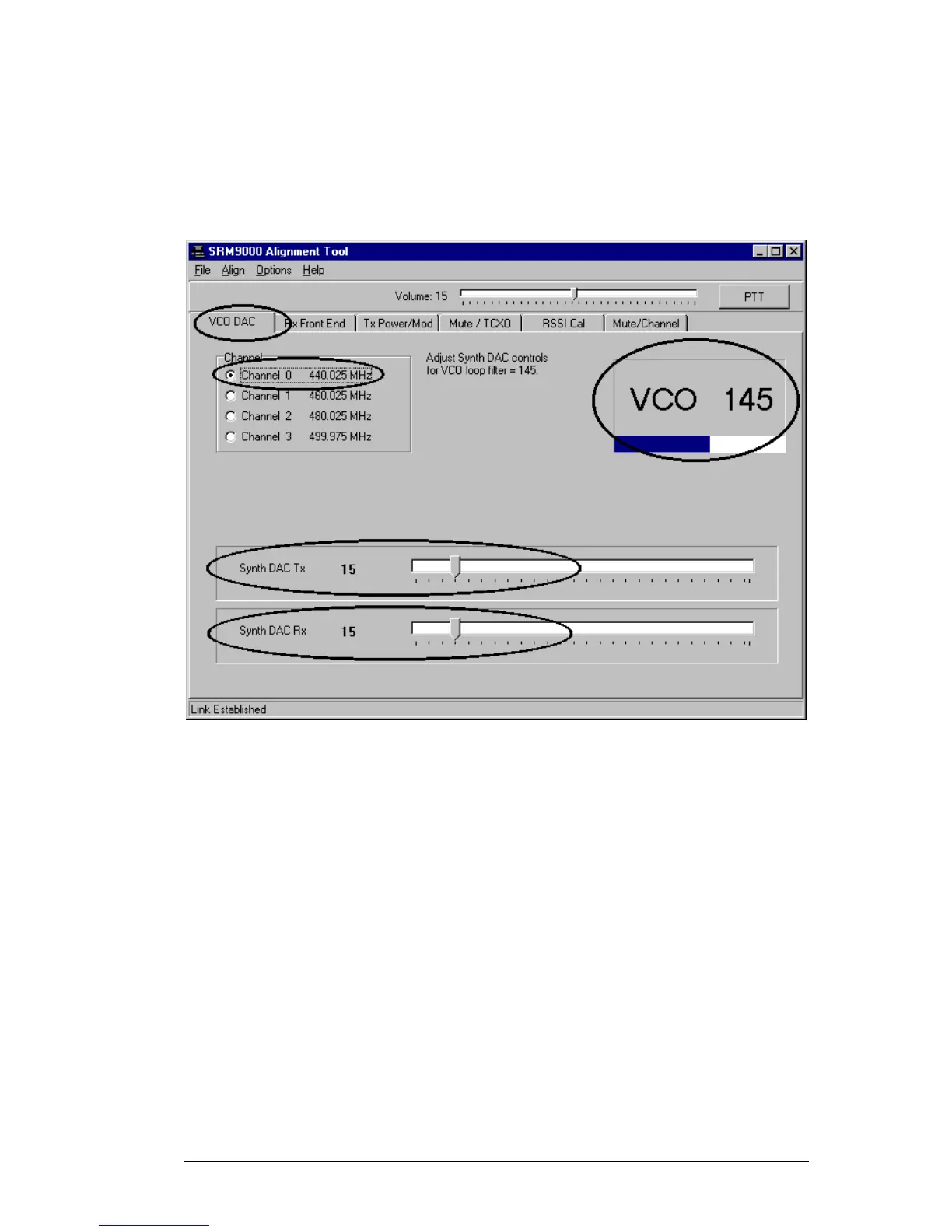

4.2.3.1 VCO DAC Alignment
1. Select the VCO DAC page and choose Channel 0.
The channel number and frequency will be highlighted.
2.
Select the Synth DAC Rx slider (slider will be highlighted) and (using the left/right arrow
keys or the mouse) adjust for a VCO reading as close to 145 as possible (must be
between 140 and 150).
3. Repeat Step 2 for the remaining 3 Channels (1, 2, & 3, in turn)
4. Select Channel 0.
5.
Select PTT and adjust the Synth DAC Tx slider for a VCO reading as close to 145 as
possible (must be between 140 and 150).
6. Repeat Step 5 for the remaining 3 Channels (1, 2, & 3).
7.
Release the PTT.
